Seat foam recess for fuel sensor
|
|
Seat foam recess for fuel sensor |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

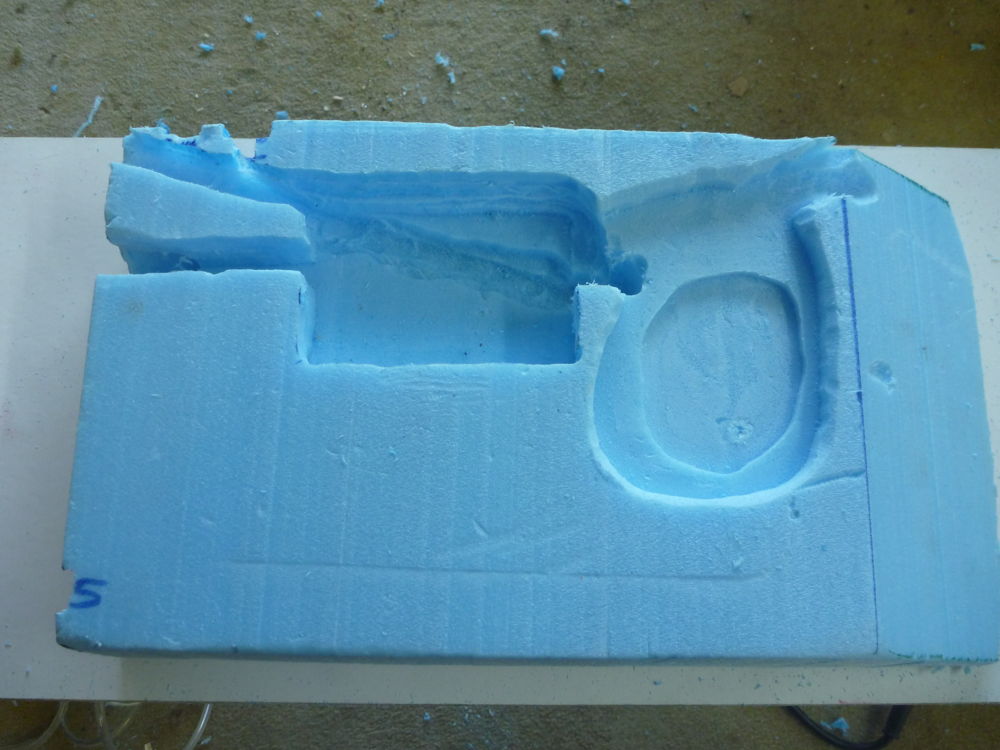

port seat foam with cutout for fuel weight transducer: 2020-03-25 Panasonic DMC-FT1
The foam block for the inboard side of the port seat, with recesses routed out for the fuel weight sensor and the tubing and wiring associated with it. The tubes go out to the left (aft) and the wires go out to the right (forward).

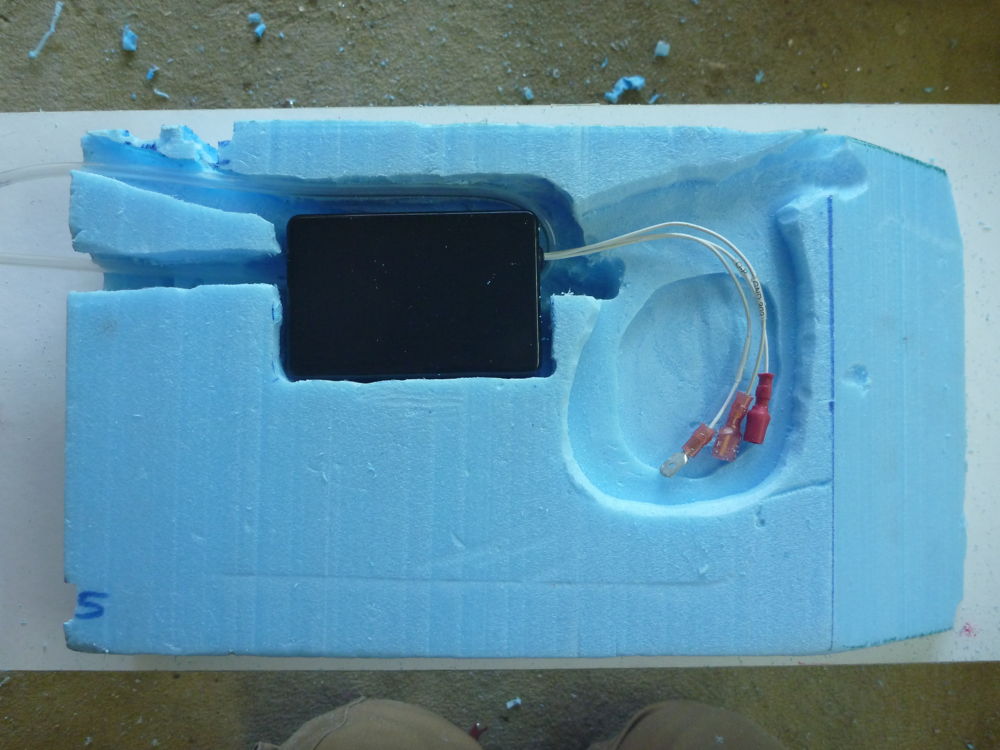

port seat foam with fuel weight transducer: 2020-03-25 Panasonic DMC-FT1
The foam block for the inboard side of the port seat, with recesses routed out for the fuel weight sensor and the tubing and wiring associated with it. The tubes go out to the left (aft) and the wires go out to the right (forward), connecting to the flying leads on the sensor box in the deeper recess.
