test alignment of rudder shaft seal
|
 |
test alignment of rudder shaft seal
port rudder shaft seal: 2019-06-21 Panasonic DMC-FT1

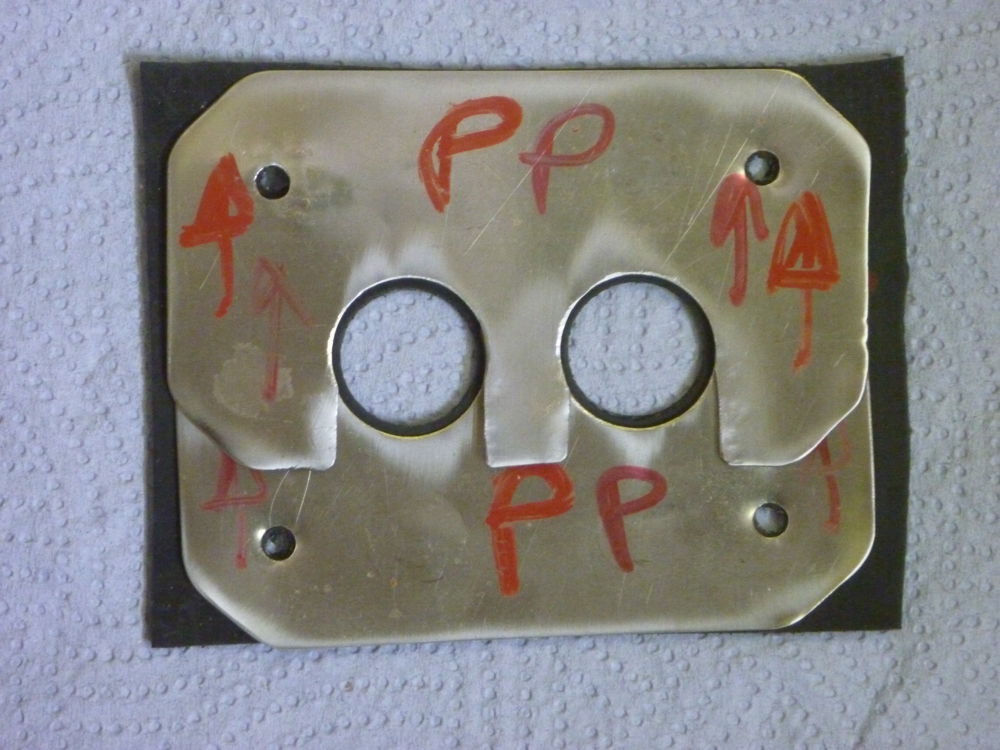

The rubber and stainless steel sheet parts for the rudder pedal shaft seal laid out in alignment with fixing holes made. Note that the holes in the rubber sheet are made to be a rubbing fit on the shafts, and the holes in the steel sheets are a little larger for clearance. This set, marked P, is intended to be fitted on the side of the port footwell.
|
This page last updated 2019-08-02.
