Screw fouling rudder cable

3 pictures on this page - scroll down to see the rest

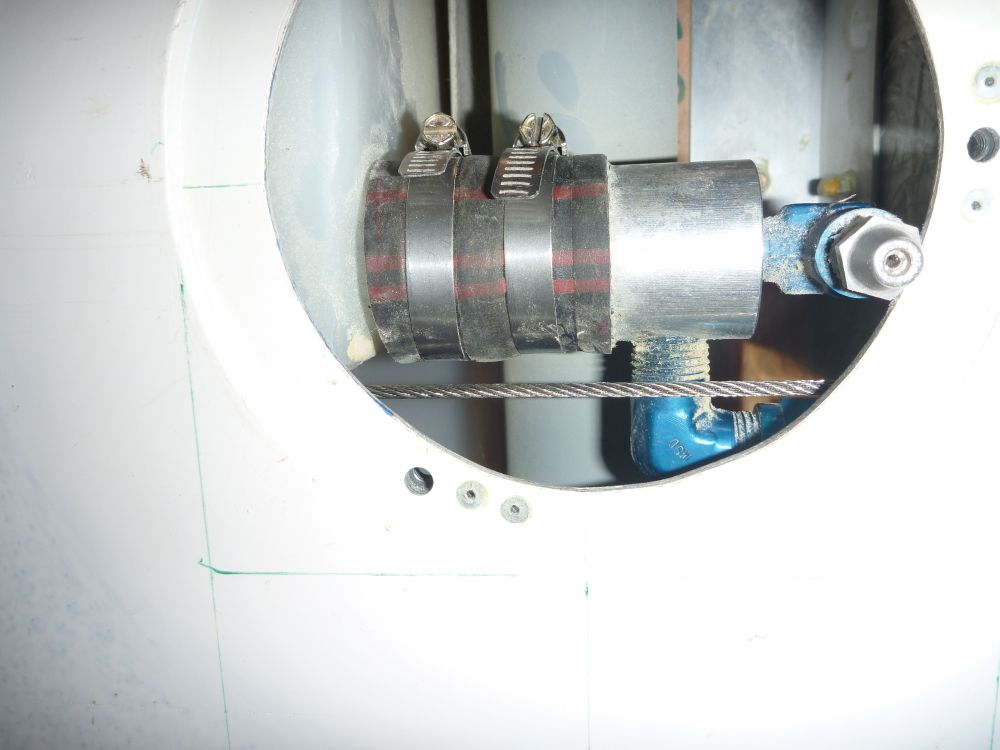

Hose clips fouling rudder cable

Hose clips fouling rudder cable: 2013-07-16

Panasonic Lumix DMC-FT1

While sorting out the length of the rudder cables I happened to look down the tunnel and noticed that the starboard cable seemed to be rubbing on one of the hose clips securing the fuel tank outlet fitting.

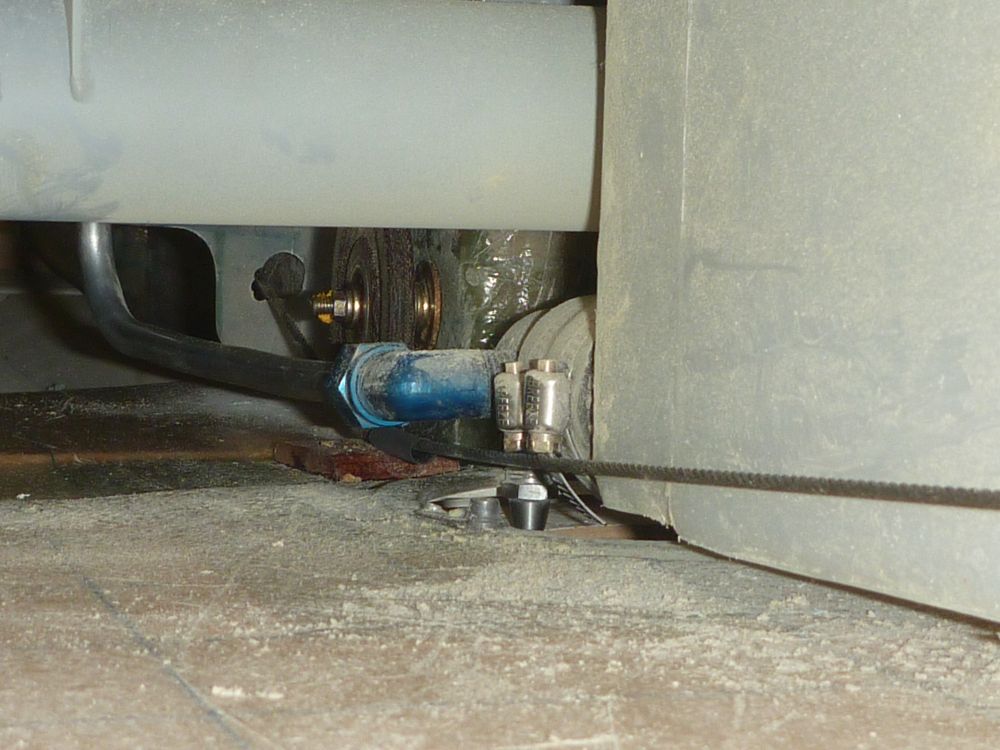

Hose clips fouling rudder cable

Hose clips fouling rudder cable: 2013-07-17

Panasonic Lumix DMC-FT1

Crawling underneath for a better look proved that there was indeed interference between hose clip screws and rudder cable that needed to be eliminated.

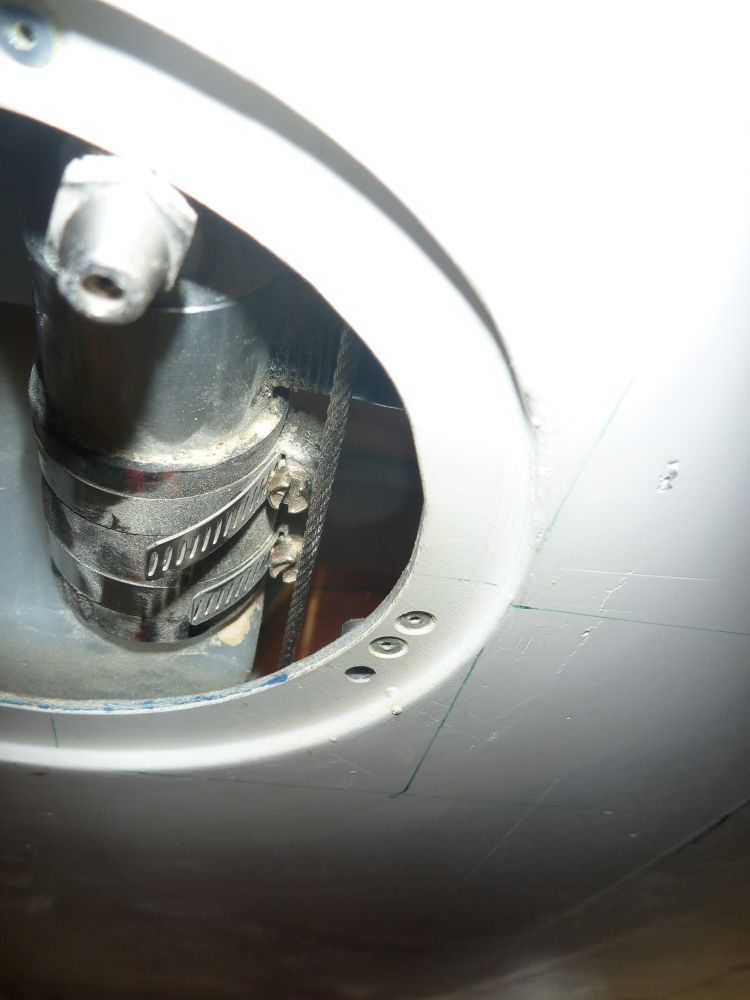

Hose clips moved to clear rudder cable

Hose clips moved to clear rudder cable: 2013-07-17

Panasonic Lumix DMC-FT1

I found the hose clips could be undone completely and removed from the tank outlet fitting. I replaced them the opposite way round and that completely solved the problem of interference with the rudder cable.
