Initial fit of fuselage top moulding

Containment bulkhead touching fuselage top

Containment bulkhead touching fuselage top: 2013-07-20

Panasonic Lumix DMC-FT1

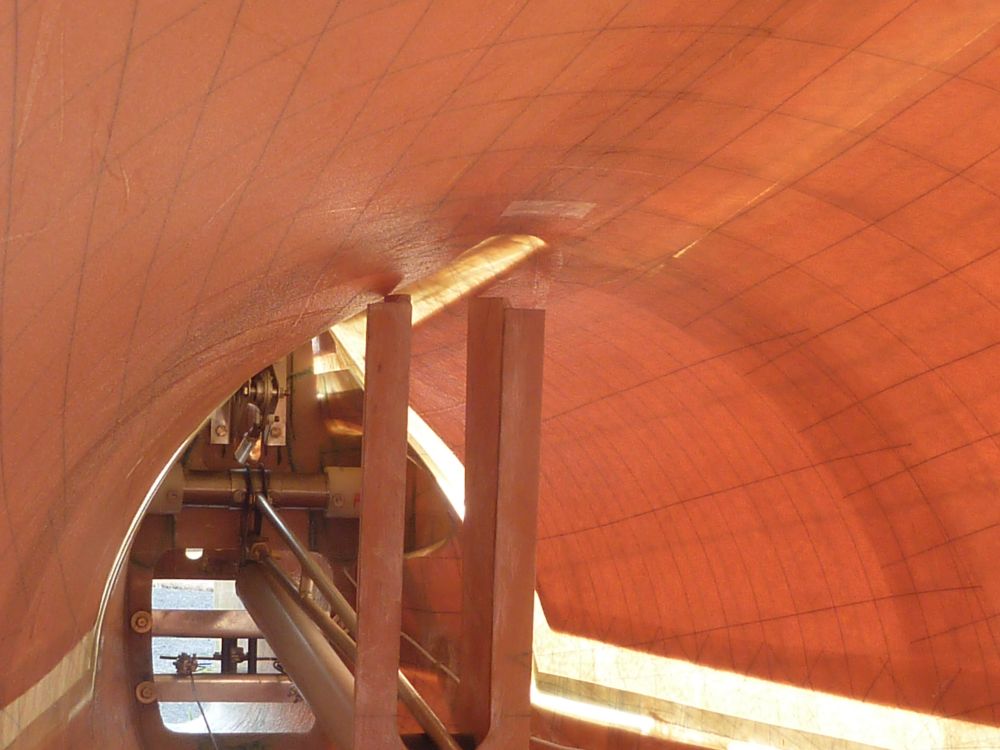

This shows how the containment bulkhead made contact with the fuselage top moulding when it was first placed in position. The bulkhead needs to be chamfered to match the angle of the fuselage profile.
