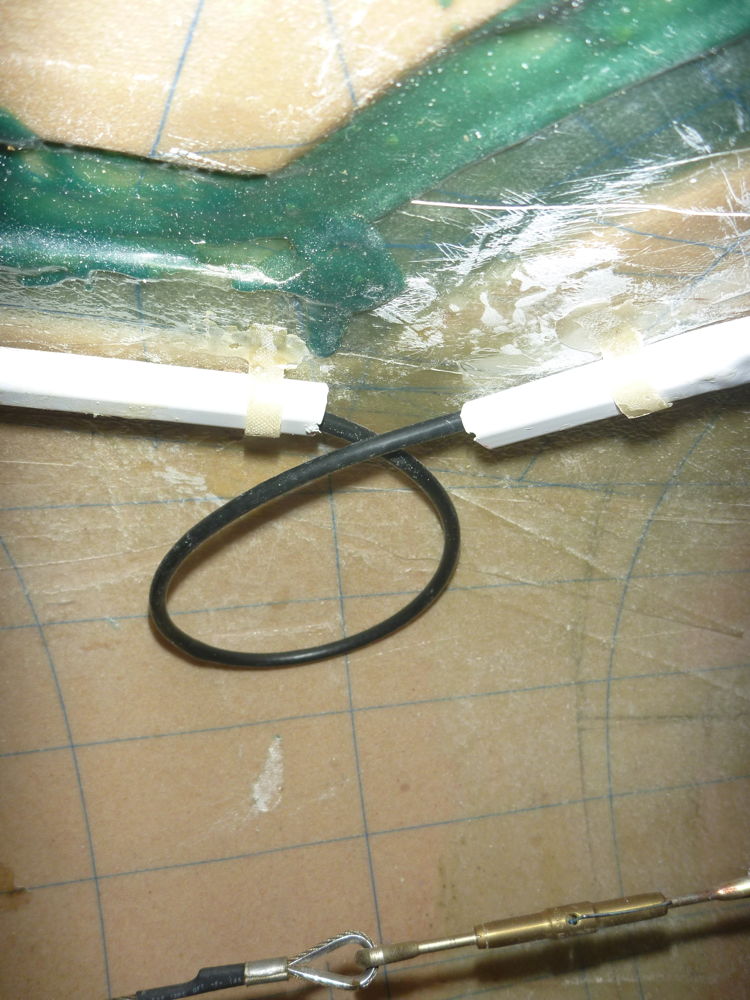

RG58 service loop: 2021-02-18 Panasonic DMC-FT1
A service loop in the RG58 coax cable for the comm radio antenna. On the left is the conduit leading along the starboard side of the fuselage to the instrument panel, and on the right is the conduit leading up into the fin through the fin ribs. Once I had assembled the toroids to the antenna end of the cable at the sternpost, the cable had to be pulled back into the fin, so I left this loop here to allow for any possible future adjustments.
|
