Fuel return hose with firesleeve

2 pictures on this page - scroll down to see the rest

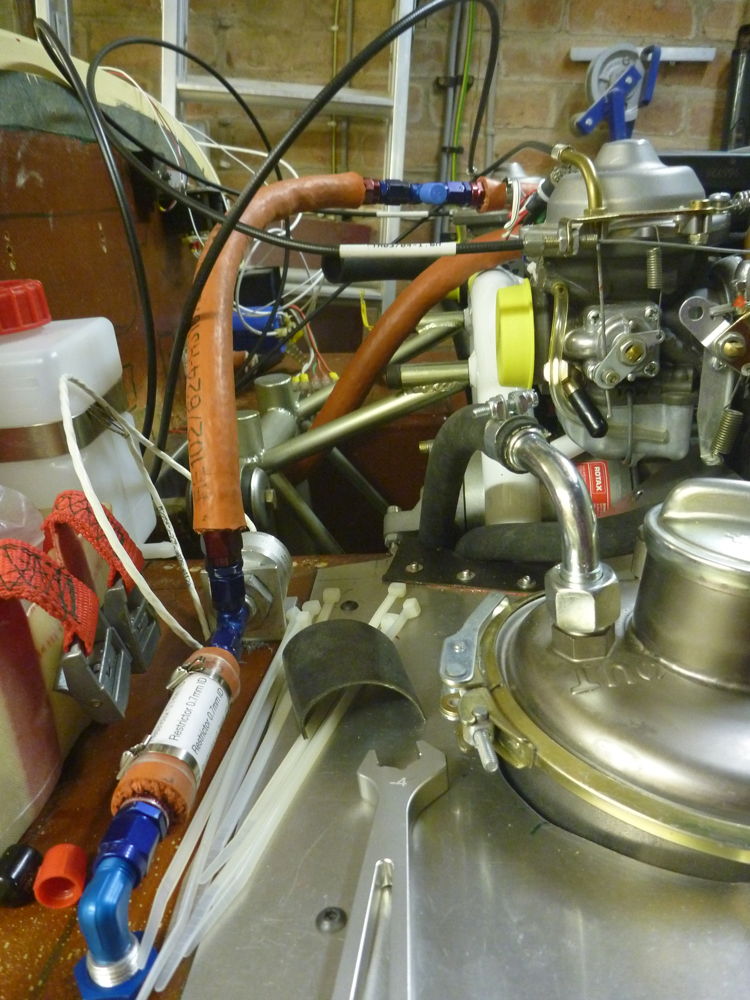

firesleeve on fuel return line

firesleeve on fuel return line: 2019-12-07 Panasonic DMC-FT1

The fuel return line fitted between the 4-way junction and the fuel pressure sensor. The firesleeve has been installed but not yet secured with stainless steel cable-ties.

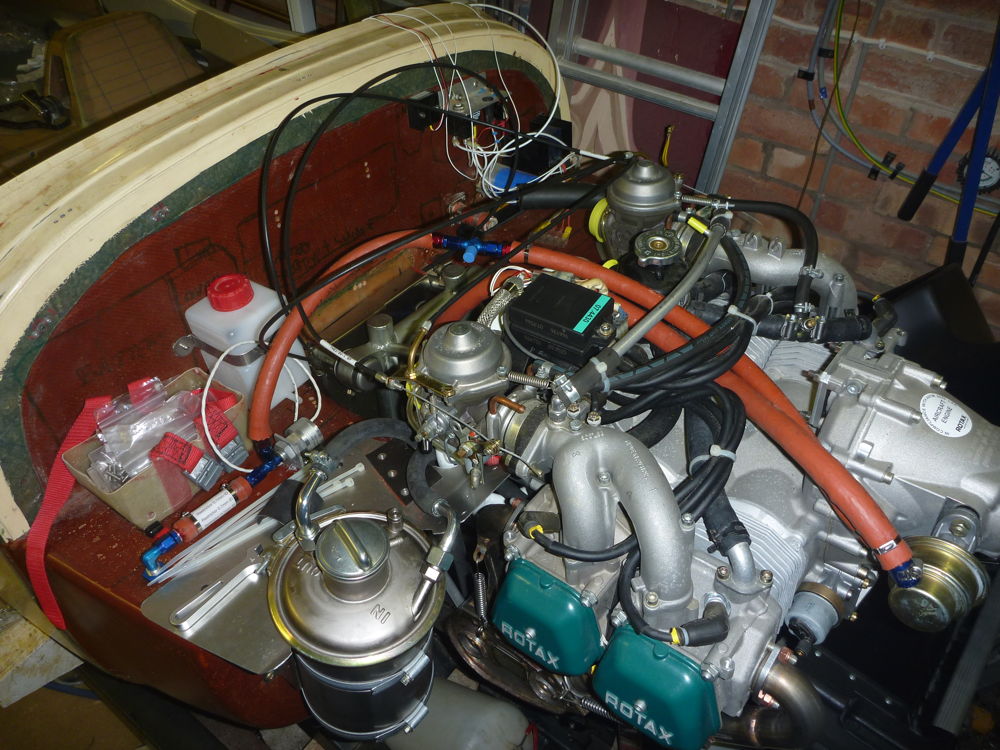

firesleeve on fuel return line

firesleeve on fuel return line: 2019-12-07 Panasonic DMC-FT1

The fuel return line fitted between the 4-way junction and the fuel pressure sensor. The firesleeve has been installed on thar section of hose, but not yet secured with stainless steel cable-ties.
