Redux thickness on starboard rib flanges
|
|
Redux thickness on starboard rib flanges |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest
Depth of Redux on rib: 2007-11-16.
Nikon Coolpix 8400

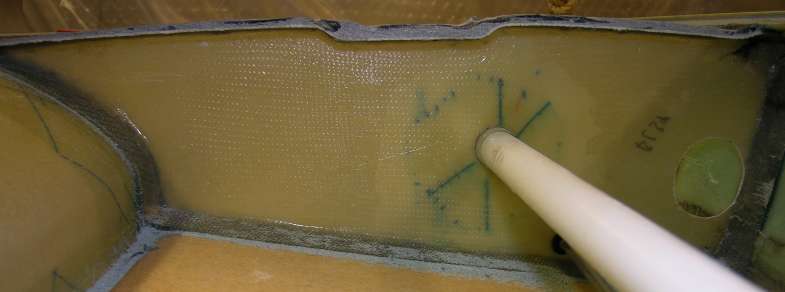

Thickness of Redux on rib at BL39 after pre-bonding. Note that the recess for the skin stiffener has a slightly thicker layer than the rest of the rib.
Depth of Redux on rib: 2007-11-16.
Nikon Coolpix 8400

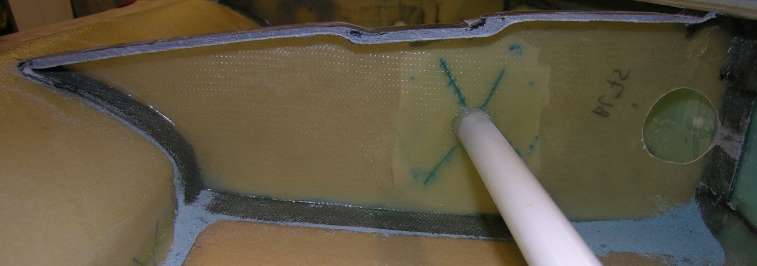

Thickness of Redux on rib at BL54 after pre-bonding. Note that the Redux layer is slightly thicker towards the LE than the TE.
Depth of Redux on rib: 2007-11-16.
Nikon Coolpix 8400

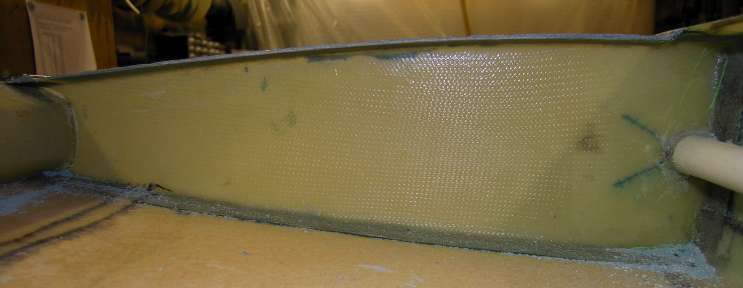

Thickness of Redux on rib at BL75 after pre-bonding. Note that the Redux layer is slightly thinner towards the LE than the TE.
Depth of Redux on rib: 2007-11-16.
Nikon Coolpix 8400

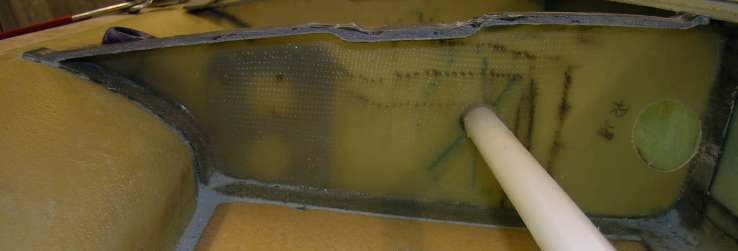

Thickness of Redux on rib at BL127 after pre-bonding. Note how much thinner all along this is than the other ribs.
