Port wing on flap template
|
|
Port wing on flap template |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest
port wing on flap template: 2008-02-23.
Nikon Coolpix 8400

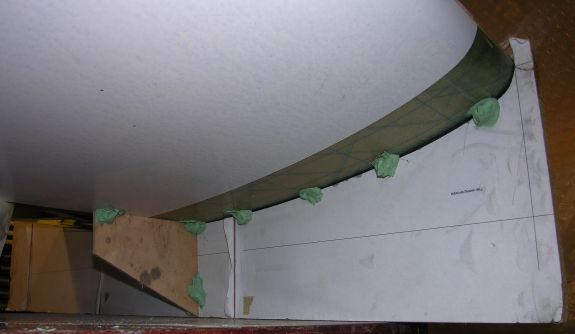

The port wing with the flap setting template attached by blobs of polyester filler paste, and turned upside down for easy access to the flap hinges. Visible here is the 3 layers of BID reinforcement layup between the spar and the forward part of the root rib.
port wing on flap template: 2008-02-23.
Nikon Coolpix 8400

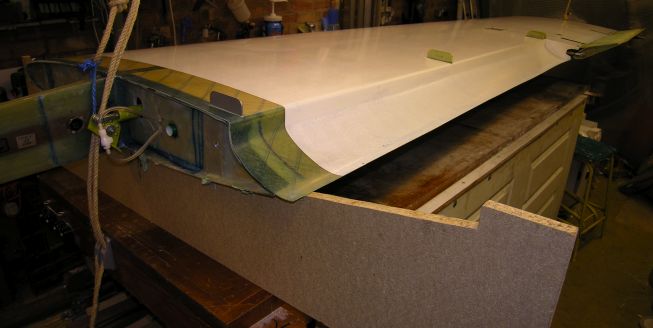

The flap setting template showing the brace to keep it square to the wing top surface.
port wing on flap template: 2008-02-23.
Nikon Coolpix 8400

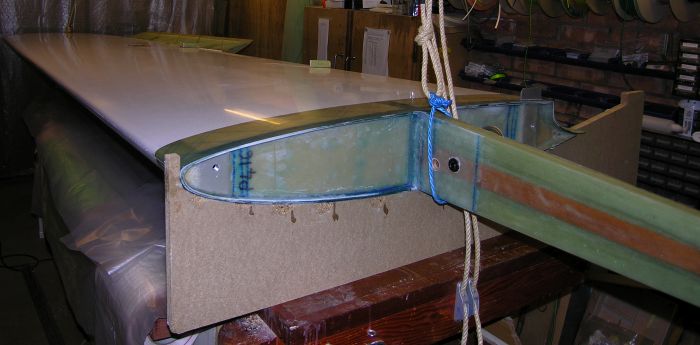

The port wing inverted, sitting on the flap setting template ready for attaching the flap.
