P1 stick wiring
|
|
P1 stick wiring |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

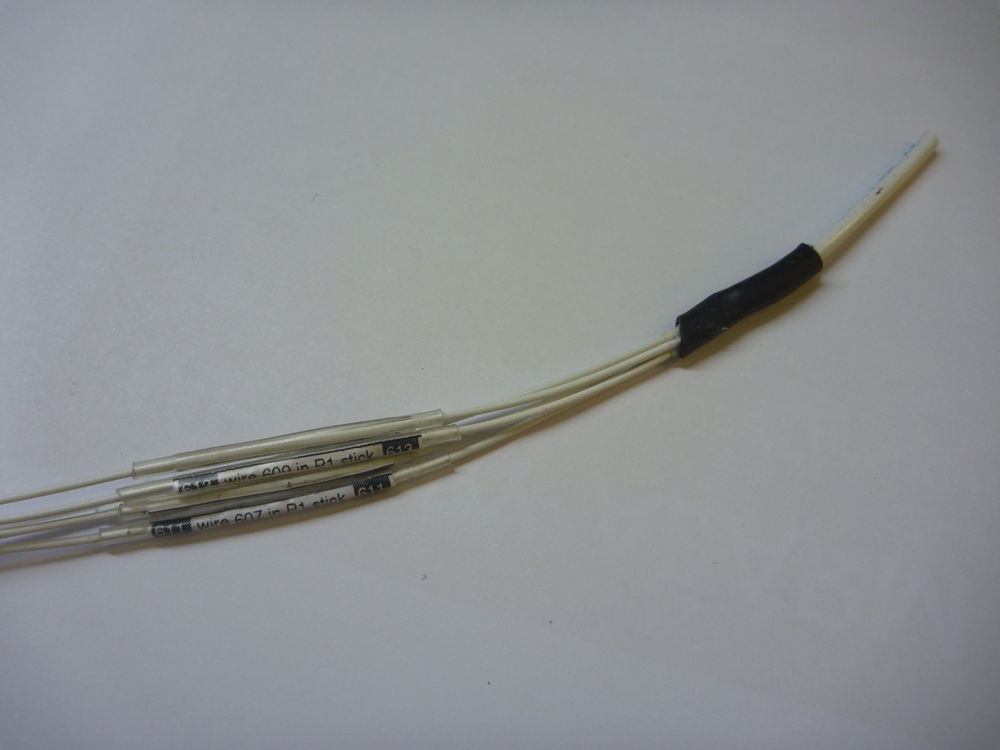

P1 stick wires bundled: 2020-11-06 Panasonic DMC-FT1
The wires that pass into the P1 stick (for PTT and trim) bound together and joined to a short piece of 12AWG wire with adhesive-lined heatshrink sleeving. This is to make it easy to draw all the wires through the conduits in the port footwell and into the base of the stick.

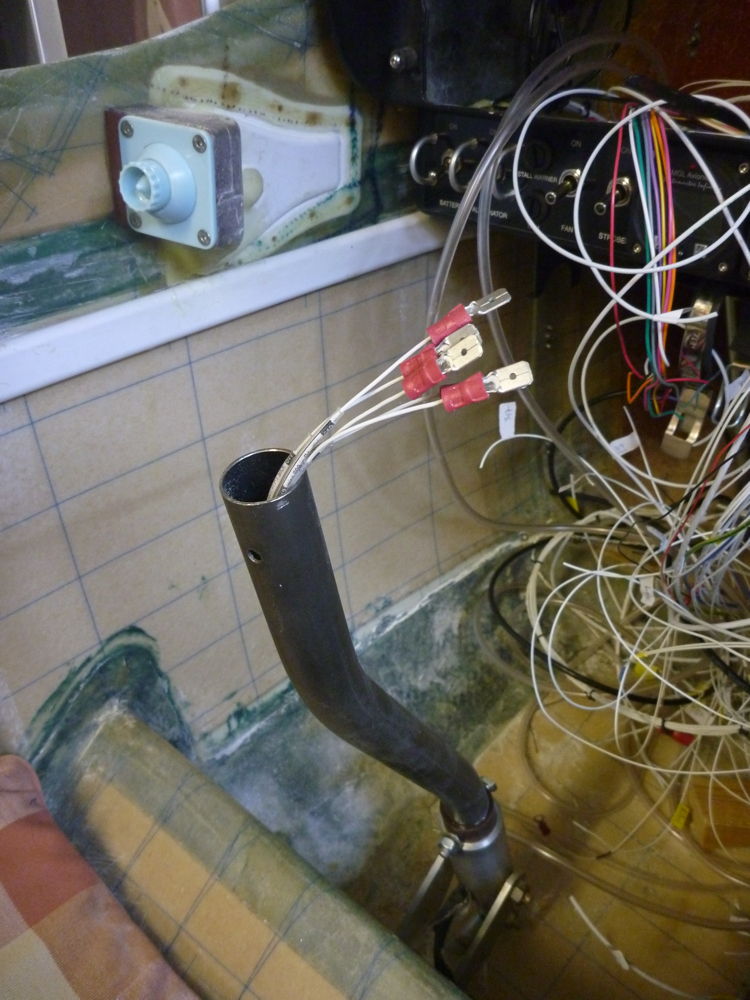

P1 stick wires drawn in: 2020-11-06 Panasonic DMC-FT1
The wires in the P1 stick for PTT and trim, terminated with blade connectors.

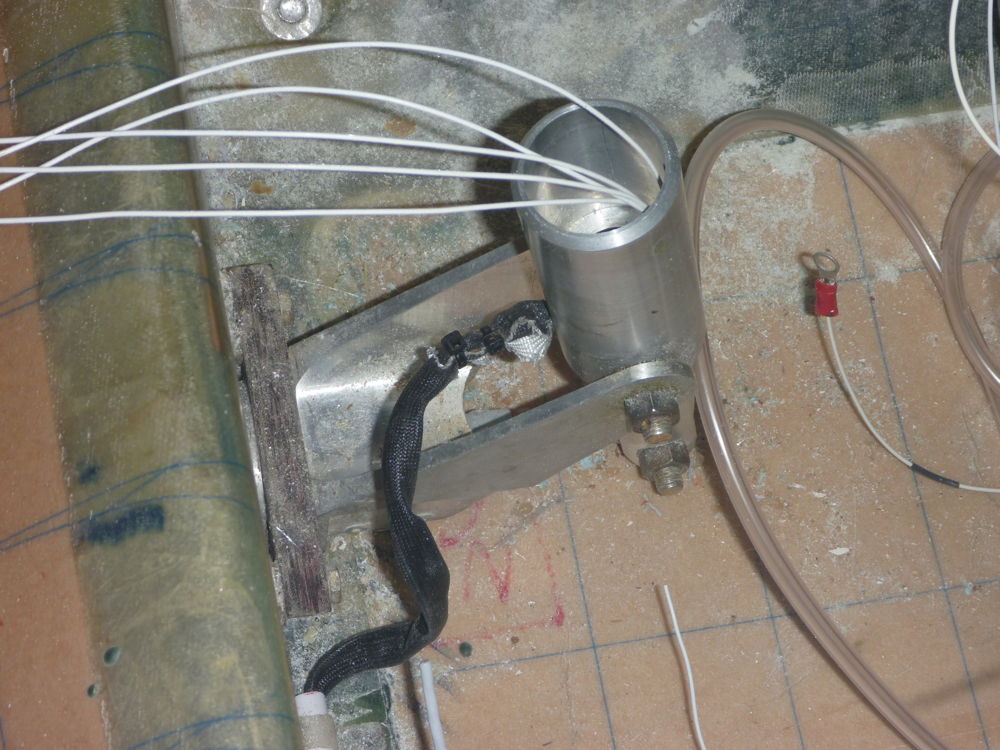

P1 stick wires protection: 2020-11-06 Panasonic DMC-FT1
The braided sleeving protecting the wires for PTT and trim where they pass into the P1 stick base.
