oil hoses passing rear starboard baffle

2 pictures on this page - scroll down to see the rest

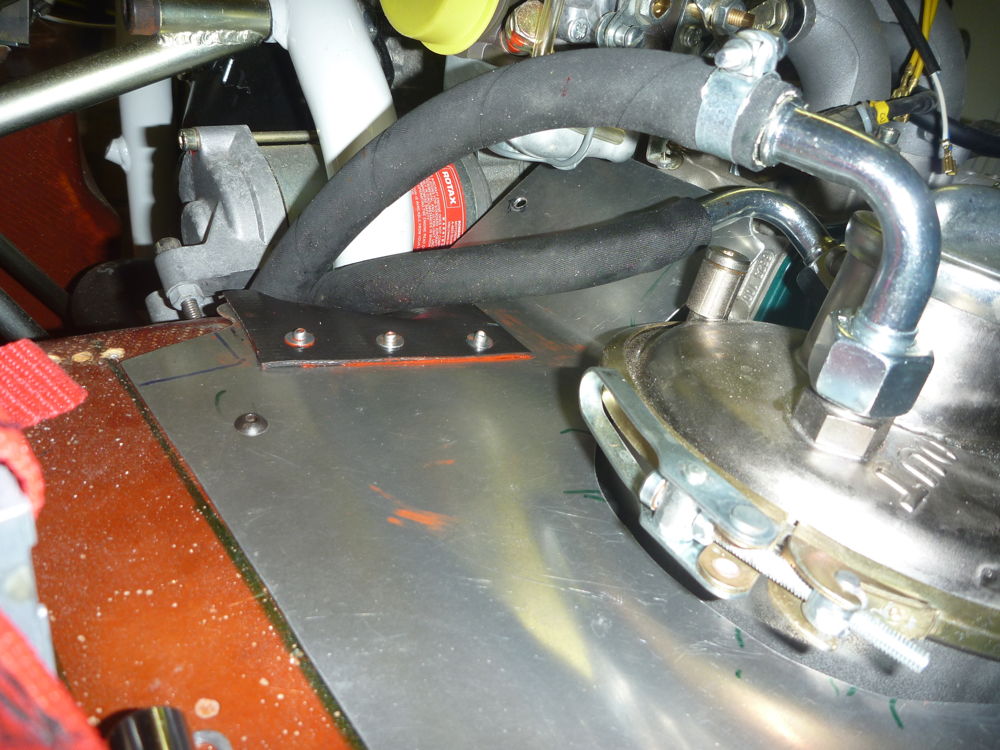

oil hose routing

oil hose routing: 2018-12-11 Panasonic DMC-FT1

Rubber "firewall fabric" fitted to edge of starboard rear baffle to protect oil hoses to & from oil tank.

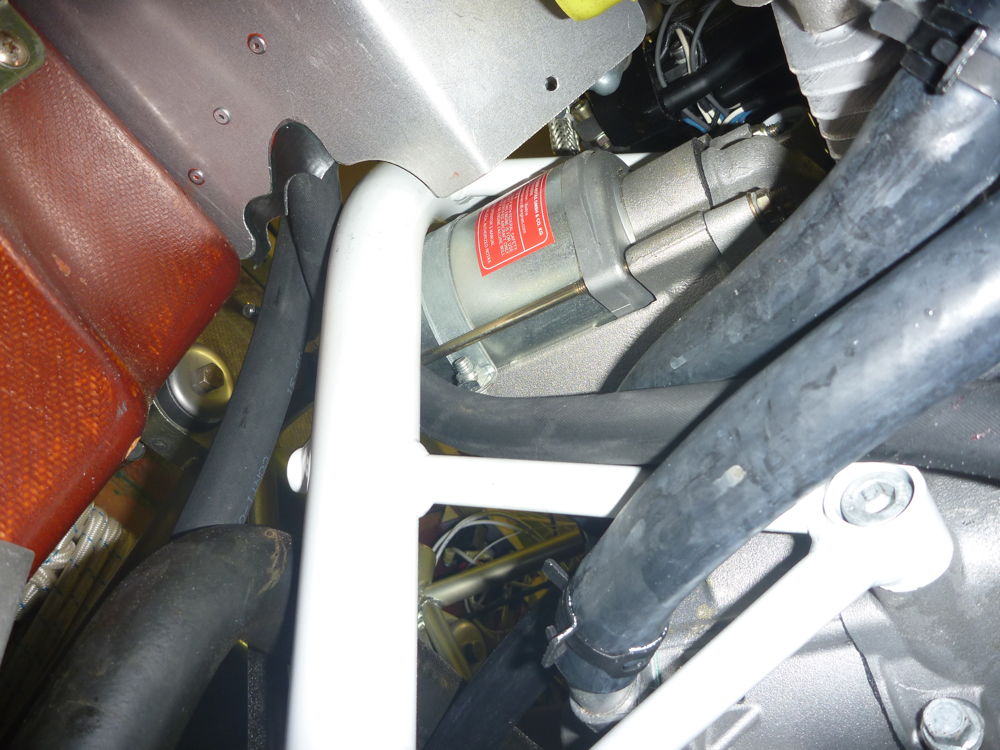

oil hose routing

oil hose routing: 2018-12-11 Panasonic DMC-FT1

Rubber "firewall fabric" fitted to edge of starboard rear baffle to protect oil hoses (upper left of picture), viewed from underside.
