oil hose routing

2 pictures on this page - scroll down to see the rest


oil hose routing

oil hose routing: 2018-12-11 Panasonic DMC-FT1

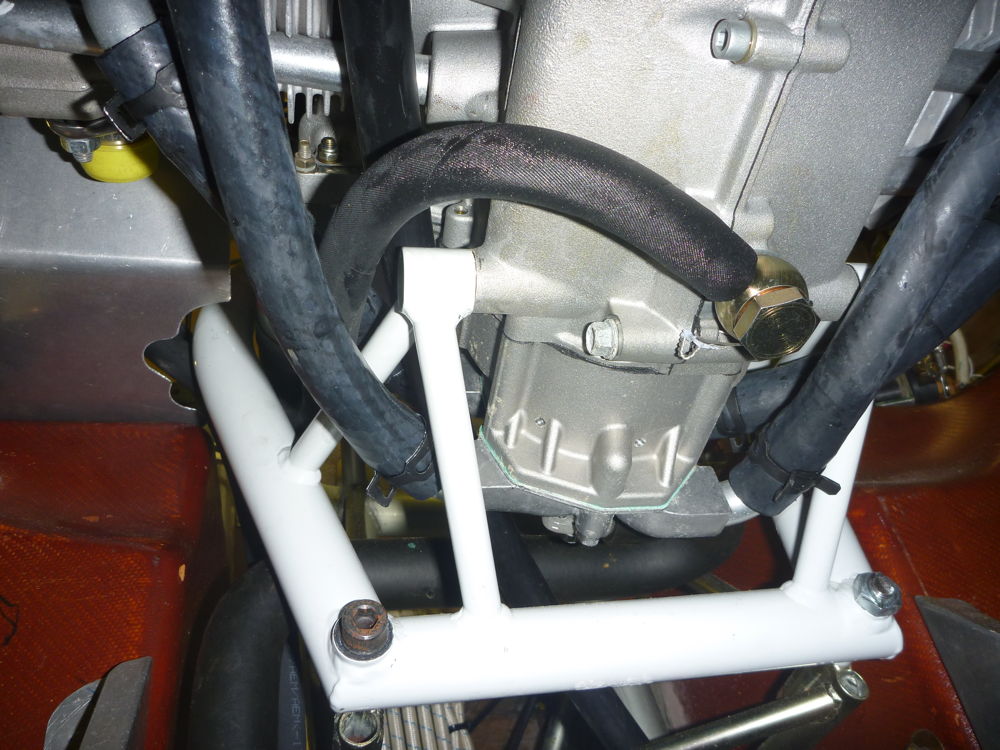

Oil hose run from sump banjo towards oil tank, showing route past Rotax engine mount and between water hoses.


oil hose routing

oil hose routing: 2018-12-11 Panasonic DMC-FT1

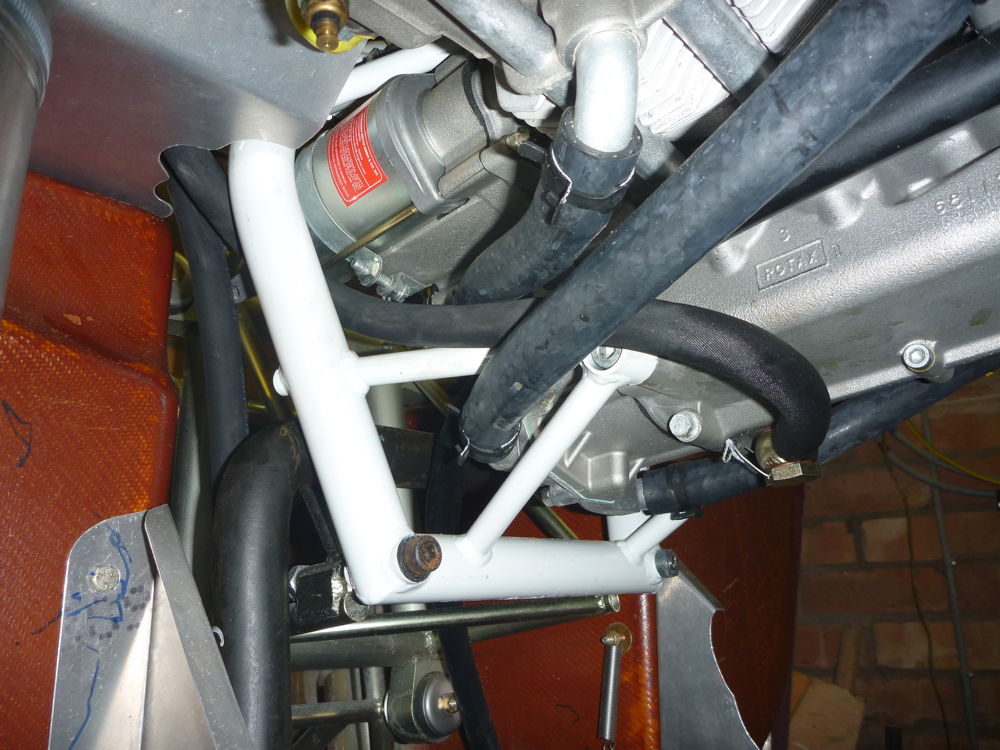

Oil hose run from sump banjo towards oil tank, showing route between water hoses and Rotax engine mount and past starboard rear baffle (at upper left of picture).
