oil cooler hoses fitted
|
|
oil cooler hoses fitted |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest
hoses fitted to oil cooler: 2020-01-28 Panasonic DMC-FT1

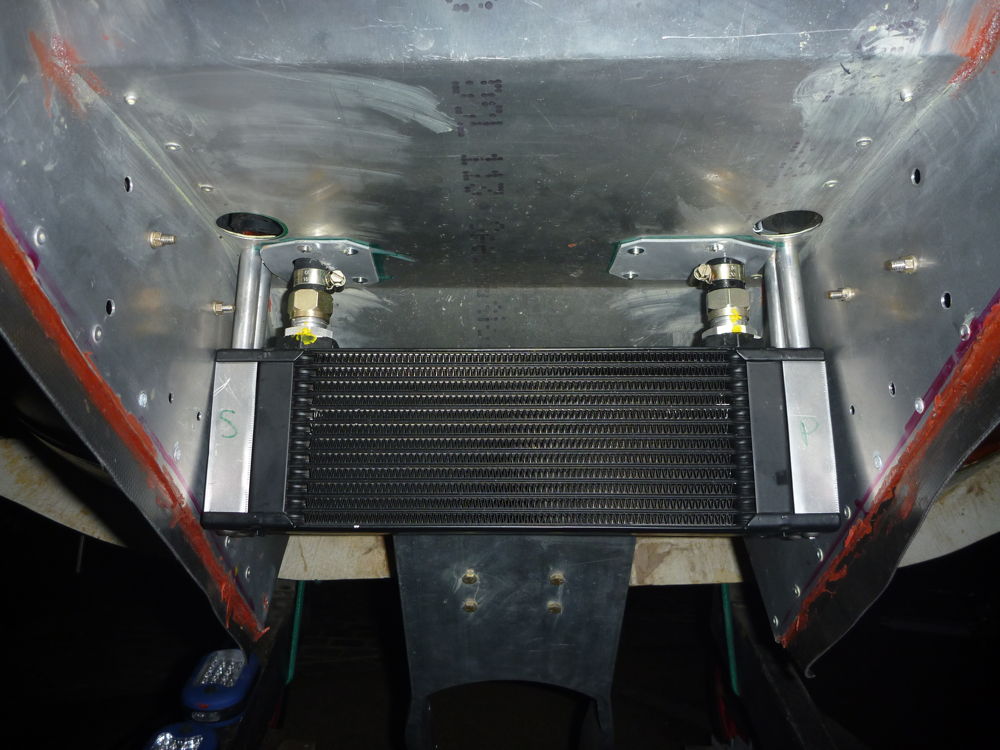

The oil cooler fitted to the cooling duct, with the hoses connected and secured. The grey pieces of cowl-saver sheet that seal around the hoses can be seen attached to the top surface of the duct.
hoses fitted to oil cooler: 2020-01-28 Panasonic DMC-FT1

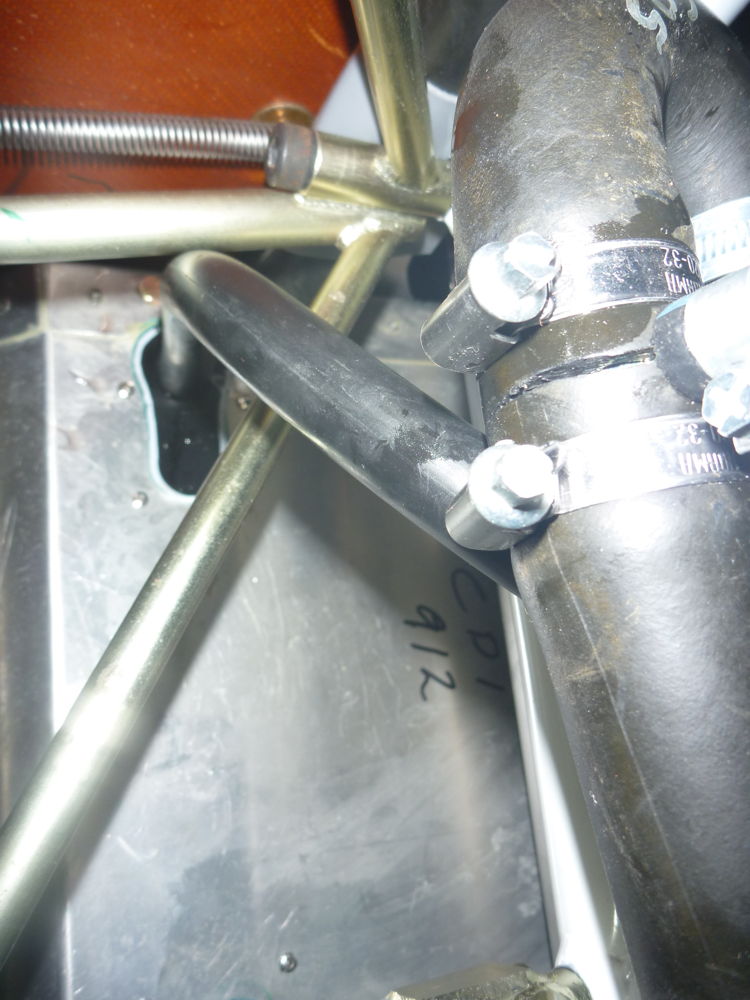

The oil hose C06 to the oil pump inlet fitted to the port side of the oil cooler.
hoses fitted to oil cooler: 2020-01-28 Panasonic DMC-FT1

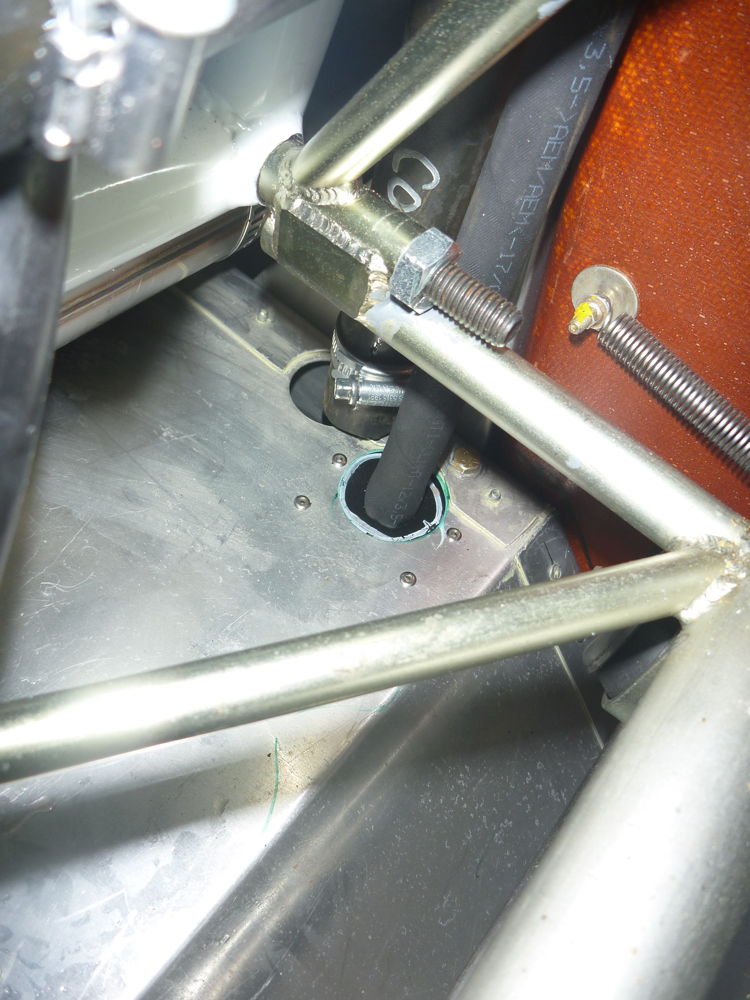

The oil hose from the oil tank outlet fitted to the starboard side of the oil cooler.
