mounting oil cooler in duct
|
|
mounting oil cooler in duct |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
oil cooler fitted to duct: 2020-01-28 Panasonic DMC-FT1

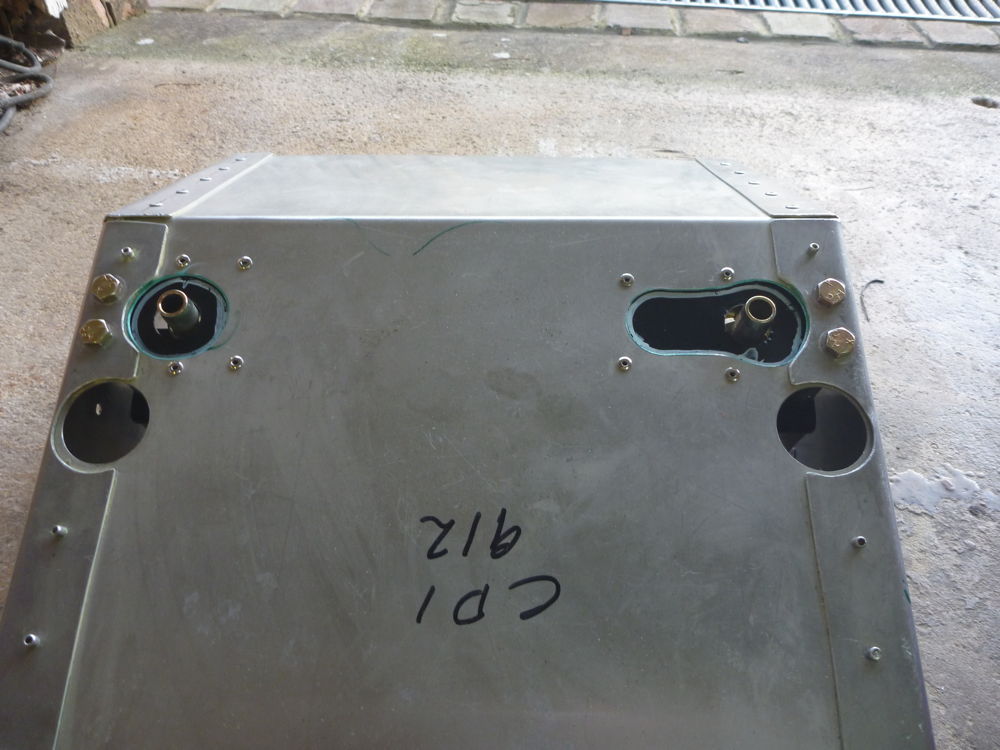

The oil cooler fitted to the cooling duct. The hose barbs protrude through the cowl-saver sealing pieces, and slightly above the duct surface.
oil cooler fitted to duct: 2020-01-28 Panasonic DMC-FT1

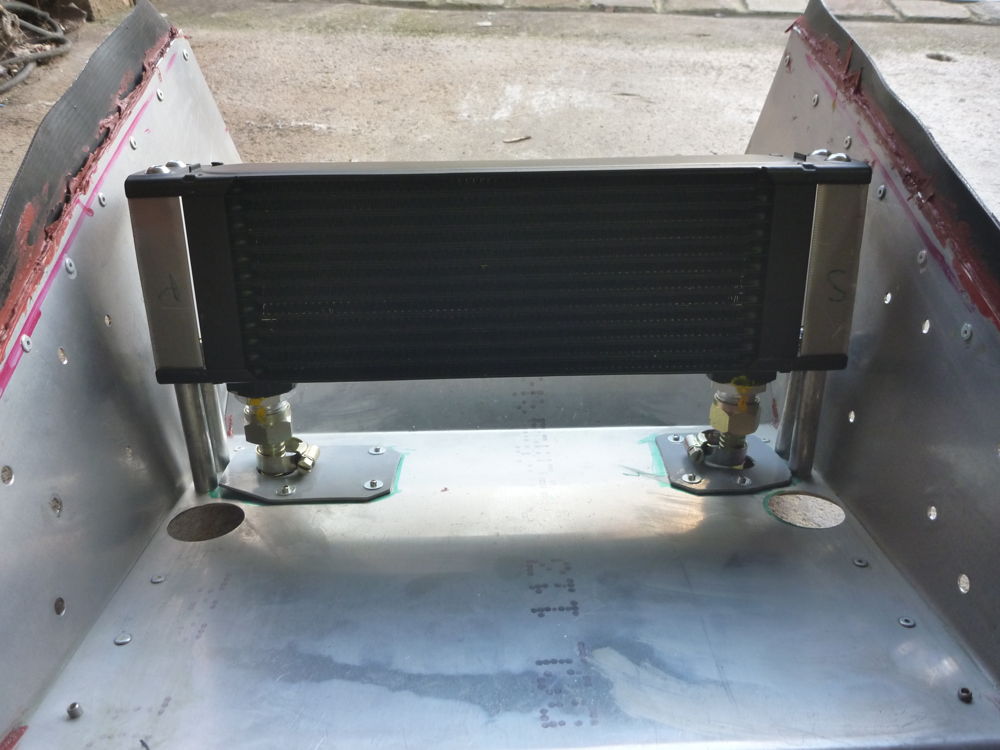

The oil cooler fitted to the cooling duct. Note that the hose clips have been slipped around the hose barbs before the oil cooler was mounted in the duct.
