dolly hold-down nutplate locations
|
|
dolly hold-down nutplate locations |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
fitting nutplates: 2014-10-16
Lumix DMC-FT1

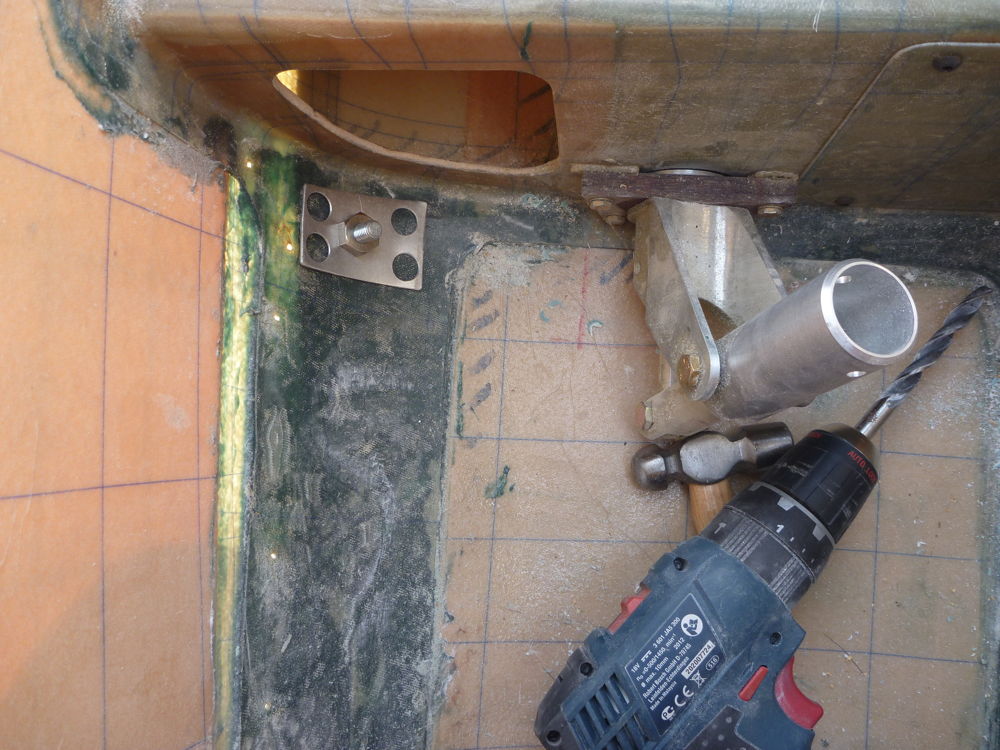

This is the starboard nutplate installed on the cockpit floor, with a M10 bolt passing through the support moulding on the rigging dolly to hold the fuselage in place.
fitting nutplates: 2014-10-16
Lumix DMC-FT1
This is the port nutplate installed on the cockpit floor, with a M10 bolt passing through the support moulding on the rigging dolly to hold the fuselage in place.
