split pin on engine mount bolt: 2019-09-17 Panasonic DMC-FT1

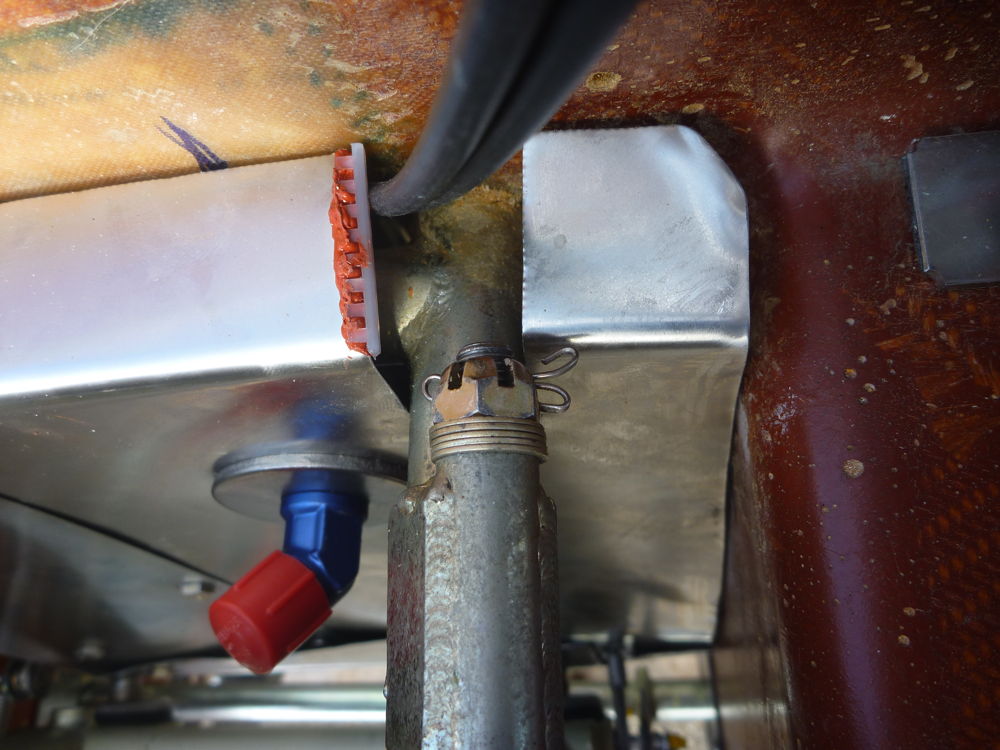

The port upper engine mount bolt showing the split-pin fitted to the castellated nut. Also visible are the 5 washers needed to place the nut castellations in proper relationship to the hole drilled in the bolt.
split pin on engine mount bolt: 2019-09-17 Panasonic DMC-FT1

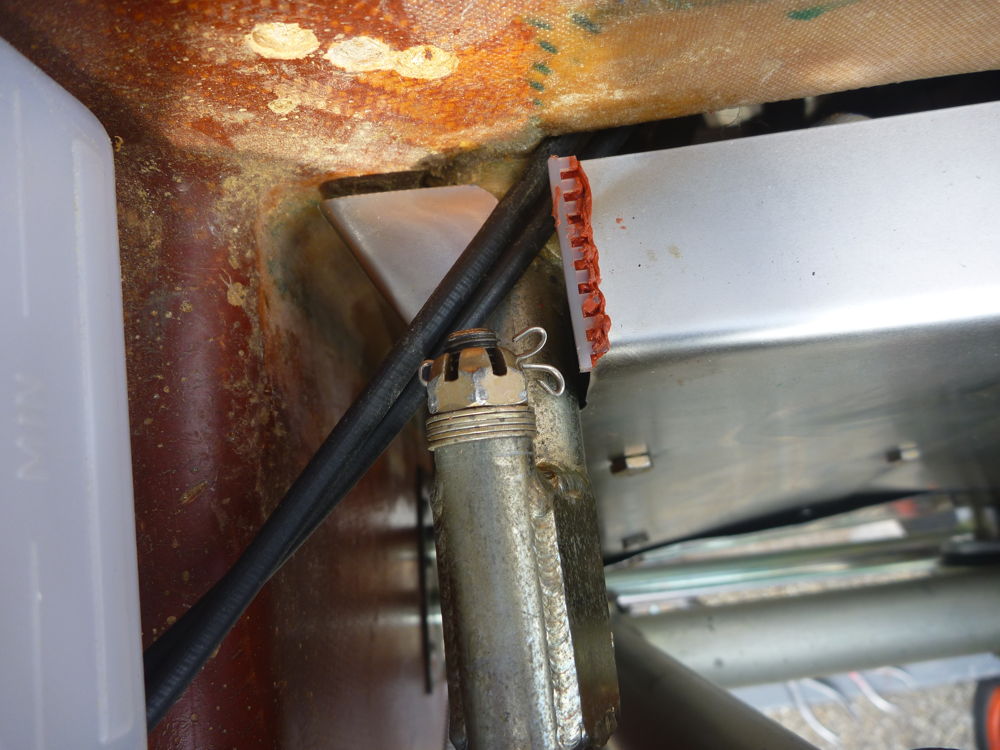

The starboard upper engine mount bolt showing the split-pin fitted to the castellated nut. Also visible are the 5 washers needed to place the nut castellations in proper relationship to the hole drilled in the bolt.
split pin on engine mount bolt: 2019-09-17 Panasonic DMC-FT1

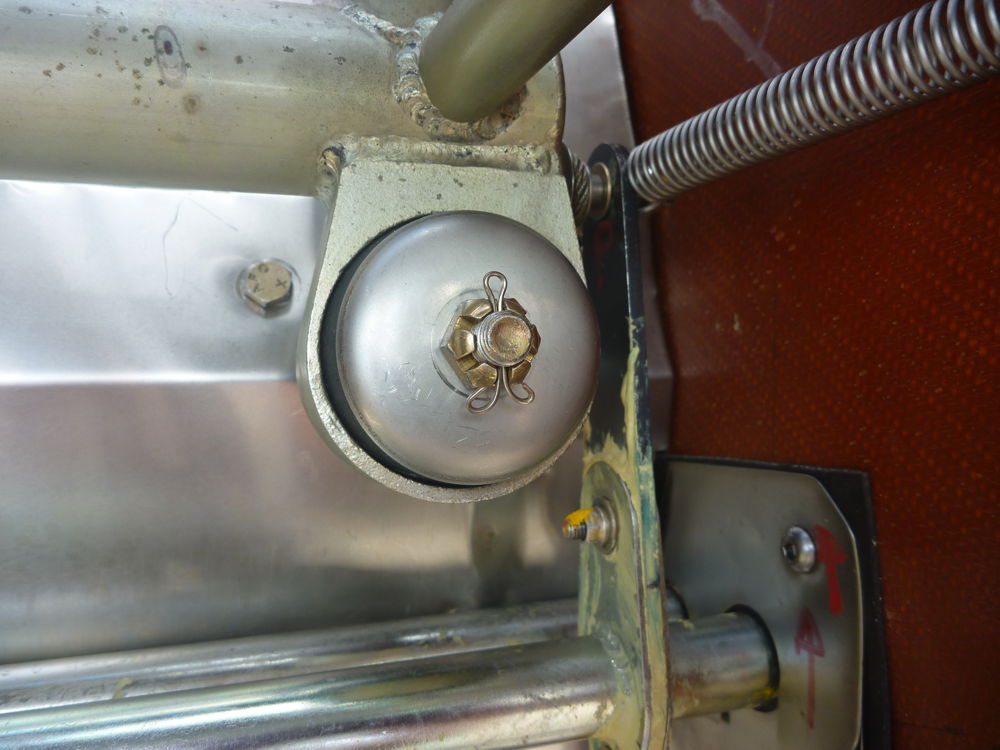

The port lower engine mount bolt showing the split-pin fitted to the castellated nut.
split pin on engine mount bolt: 2019-09-17 Panasonic DMC-FT1
The starboard lower engine mount bolt showing the split-pin fitted to the castellated nut.
