carburettor Bowden cable fittings
|
|
carburettor Bowden cable fittings |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

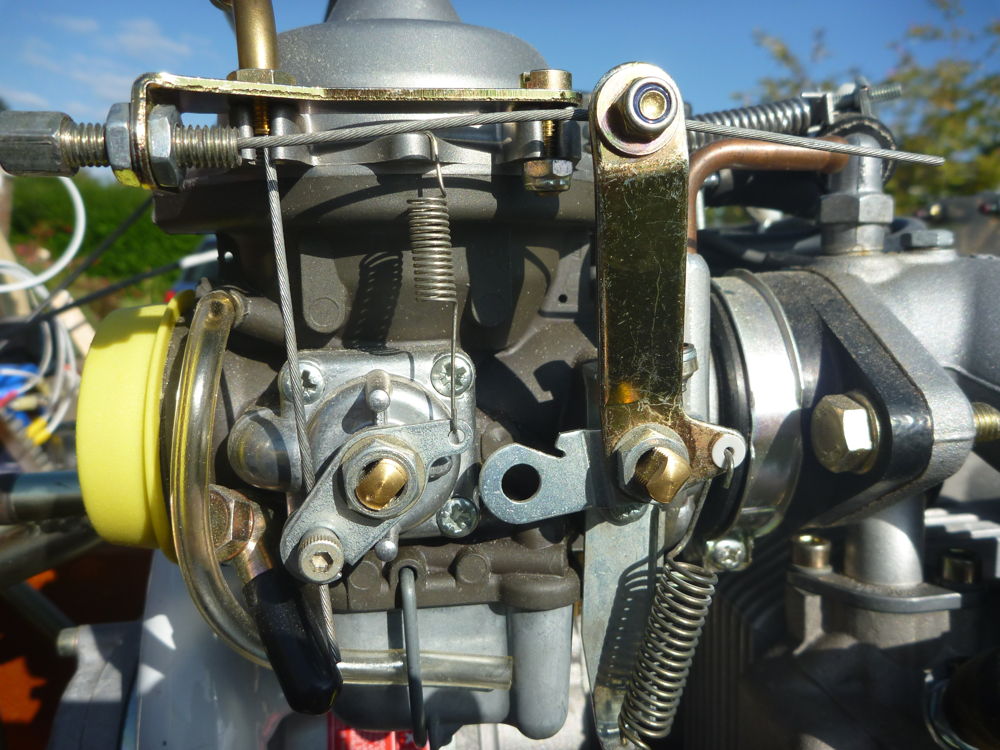

Bowden cables on carburettor: 2019-09-17 Panasonic DMC-FT1
The termination of the Bowden cables on the starboard carburettor. The throttle cable comes in horizontally at top left and is secured to the throttle arm near top right. The choke cable comes in vertically at top left and is secured to the choke arm near lower left, with a socket-head screw, not the original pan-head slotted type.

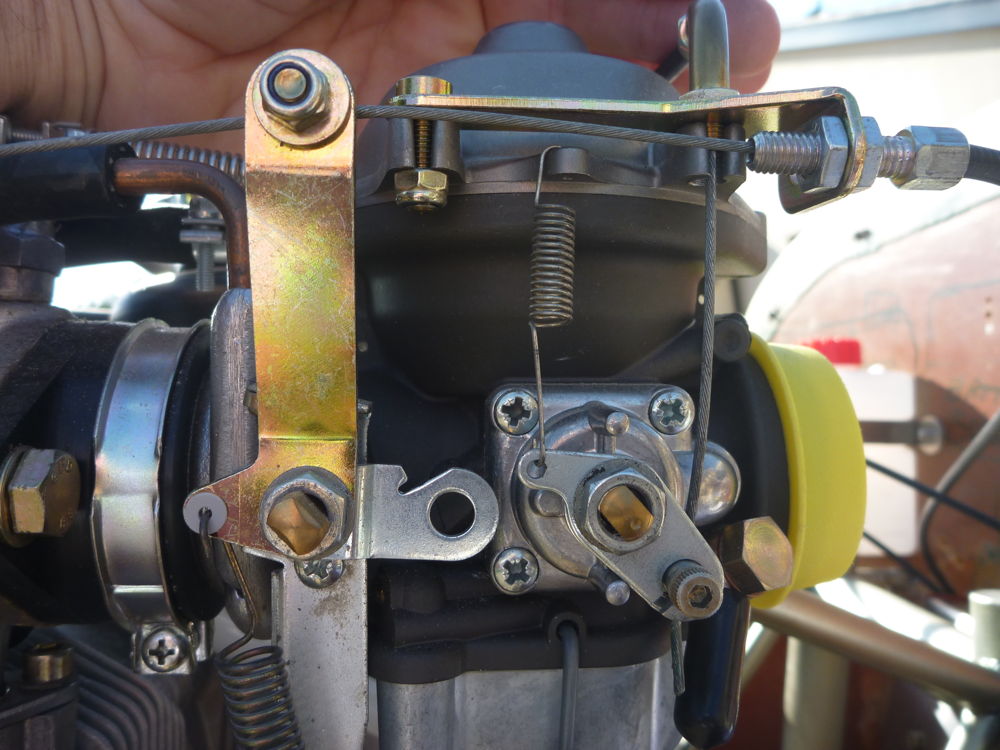

Bowden cables on carburettor: 2019-09-17 Panasonic DMC-FT1
The termination of the Bowden cables on the port carburettor. The throttle cable comes in horizontally at top right and is secured to the throttle arm near top left. The choke cable comes in vertically at top right and is secured to the choke arm near lower right, with a socket-head screw, not the original pan-head slotted type.
