Wing leveller servo mounted

2 pictures on this page - scroll down to see the rest

wing-leveller servo mounted

wing-leveller servo mounted: 2009-04-22

Nikon Coolpix 8400

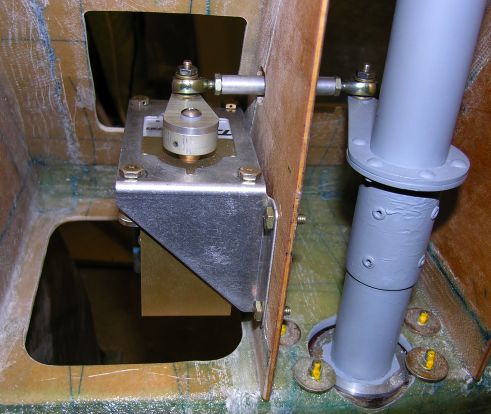

The TruTrak wing-leveller servo mounted on the starboard centre thigh-support rib, and connected to the arm on the aileron torque tube CS05 by a short pushrod.

wing-leveller servo access

wing-leveller servo access: 2009-04-22

Nikon Coolpix 8400

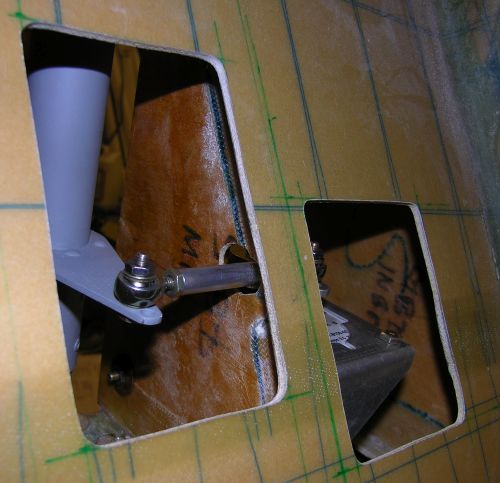

Once the cockpit module is bonded to the fuselage bottom moulding, access to the TruTrak wing-leveller servo will be by these holes in the seat. This view, looking down across the seat, shows the size of the hole in the rib for the pushrod which connects the servo to the arm fitted earlier on the aileron torque tube CS05.
