starter cable bush manufacture

3 pictures on this page - scroll down to see the rest


making bush for starter cable

making bush for starter cable: 2018-11-13 Panasonic DMC-FT1

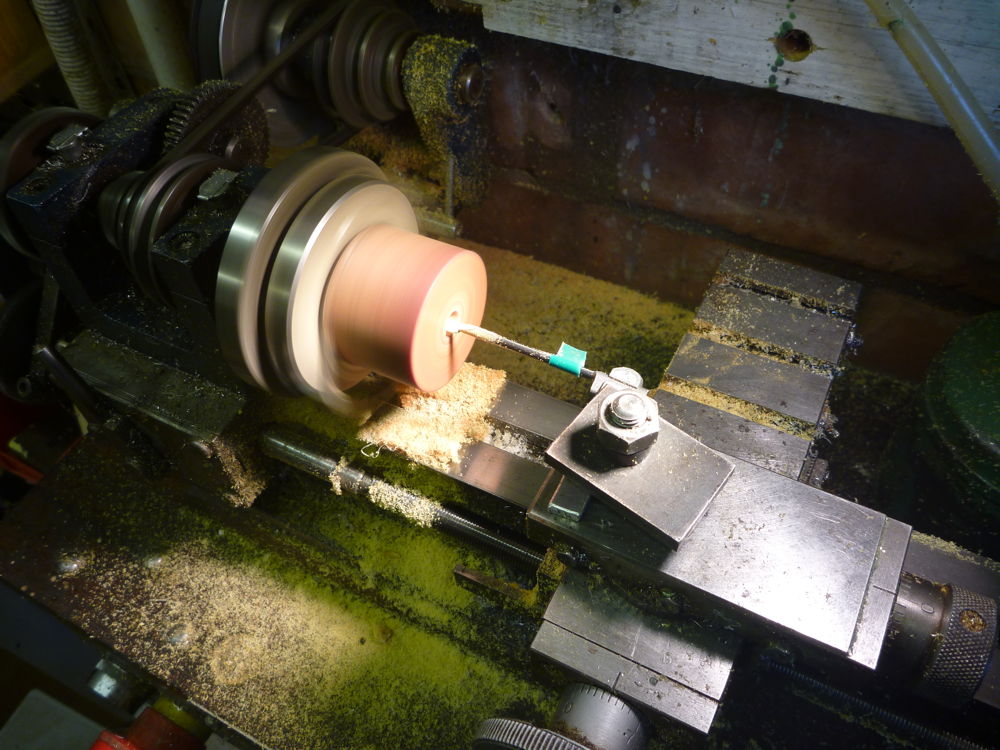

Making an insulating bush for the starter cable to pass through the aft baffle. Here starting to bore out the central drilling. Note the green insulating tape wrapped around the boring tool as a depth check - I need to bore right through the SRBF workpiece but NOT into the chuck jaws!


making bush for starter cable

making bush for starter cable: 2018-11-13 Panasonic DMC-FT1

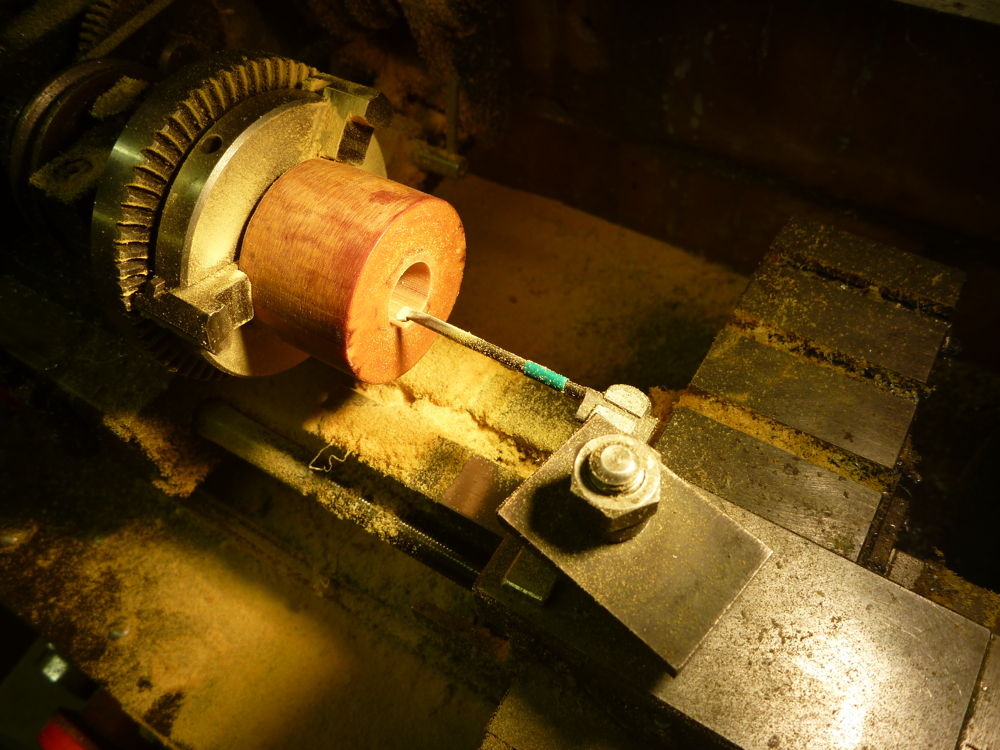

Making an insulating bush for the starter cable to pass through the aft baffle. Almost finished boring out the central drilling.


making bush for starter cable

making bush for starter cable: 2018-11-13 Panasonic DMC-FT1

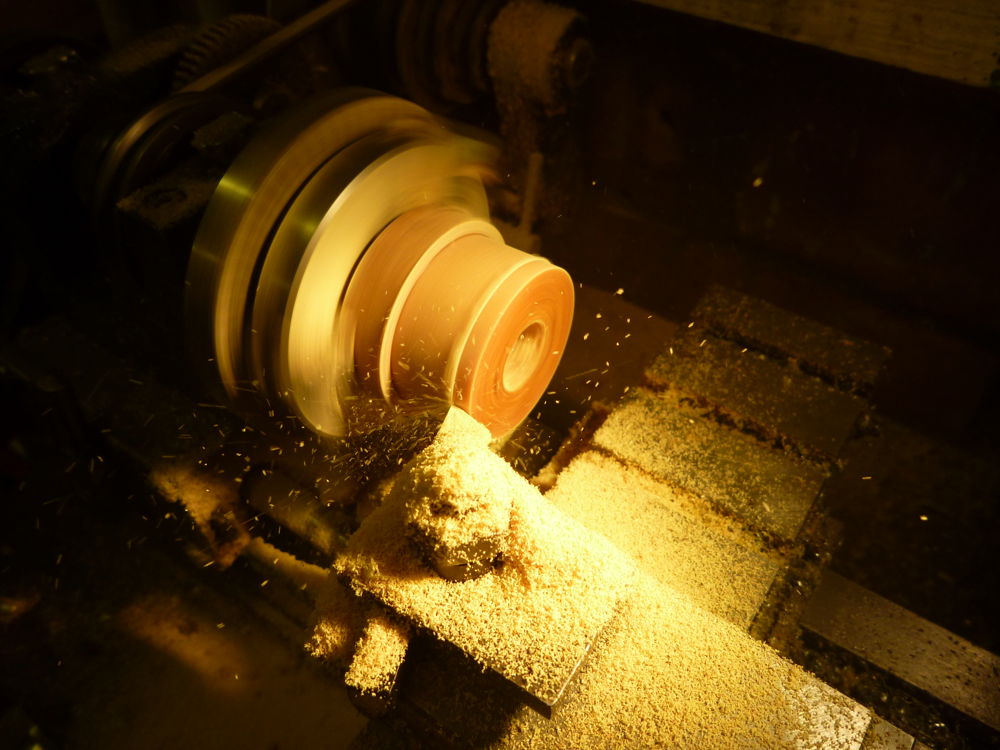

Making an insulating bush for the starter cable to pass through the aft baffle. Here starting to reduce the outside diameter for the length of the thread, leaving a full-diameter shoulder gripped in the chuck.
