fuselage levelling jig

fuselage datum jig

fuselage datum jig: 2014-05-09

Lumix DMC-FT1

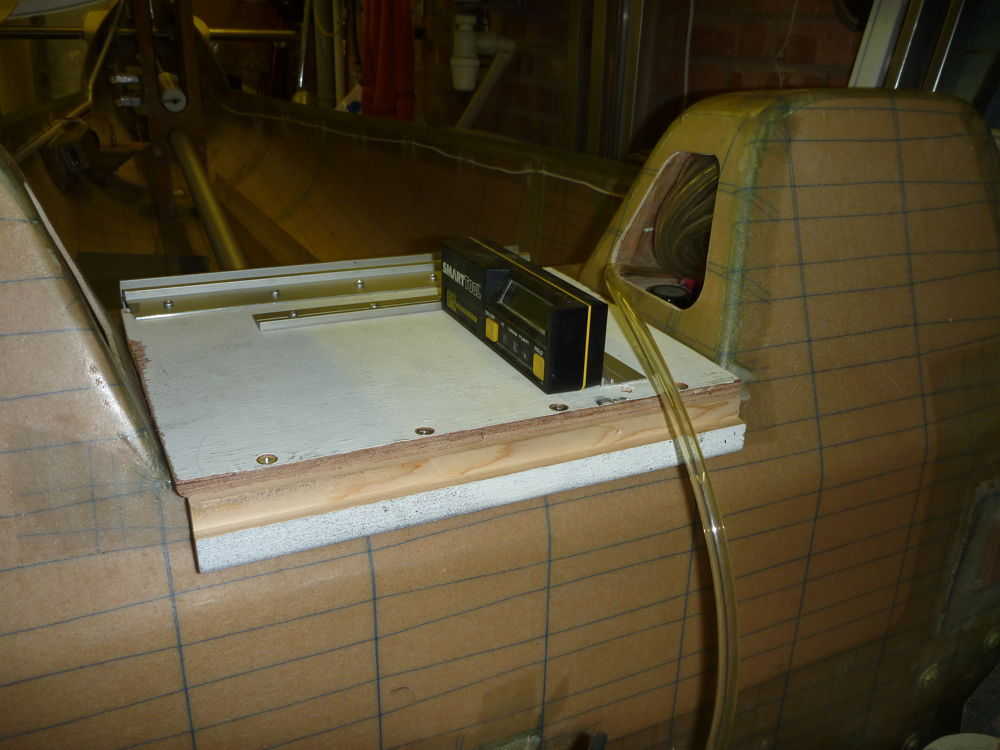

A piece of plywood shaped to fit snugly between the headrests, with lips fitted to provide fore and aft restraint. 2 lengths of aluminium angle provide a repeatable location for the digital level, both across and along the fuselage.
