fuselage centreline marks

2 pictures on this page - scroll down to see the rest

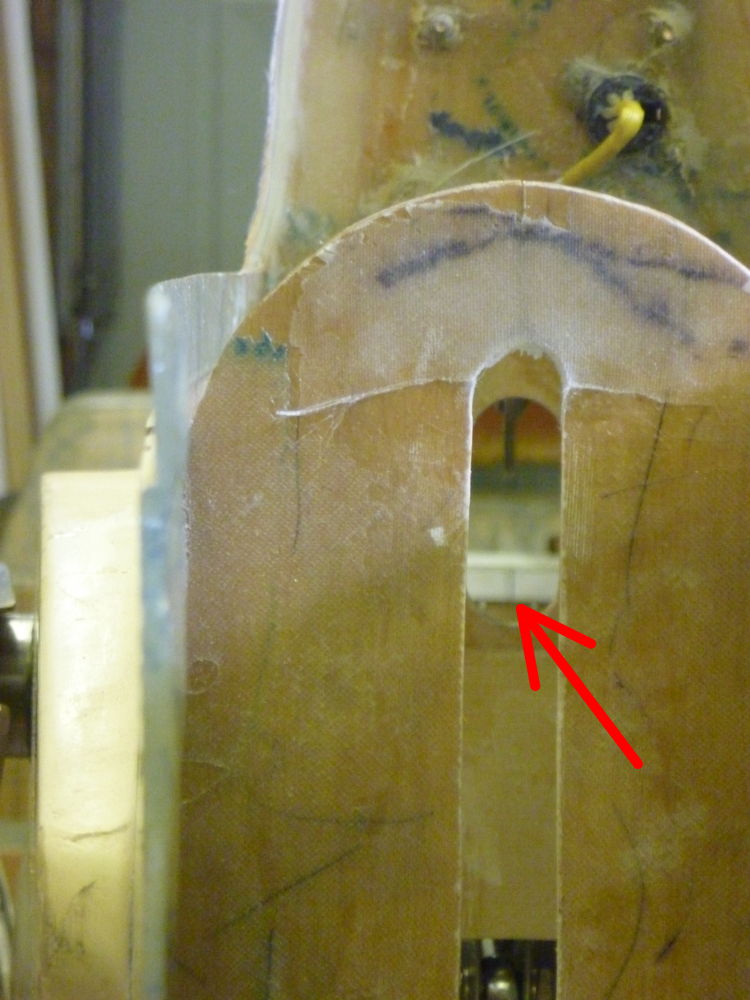

fuselage centre line mark

fuselage centre line mark: 2014-05-13

Lumix DMC-FT1

It was impossible to get the auto-focus on the digital camera to focus on the distant centrelines when seen through the bulkheads - both the rear fuselage bulkhead and the TS05 link rod restraint bulkhead. The red arrow points to the (fuzzy) centreline mark on the aft edge of the fuselage levelling jig, centred in the aperture of the rear bulkhead.

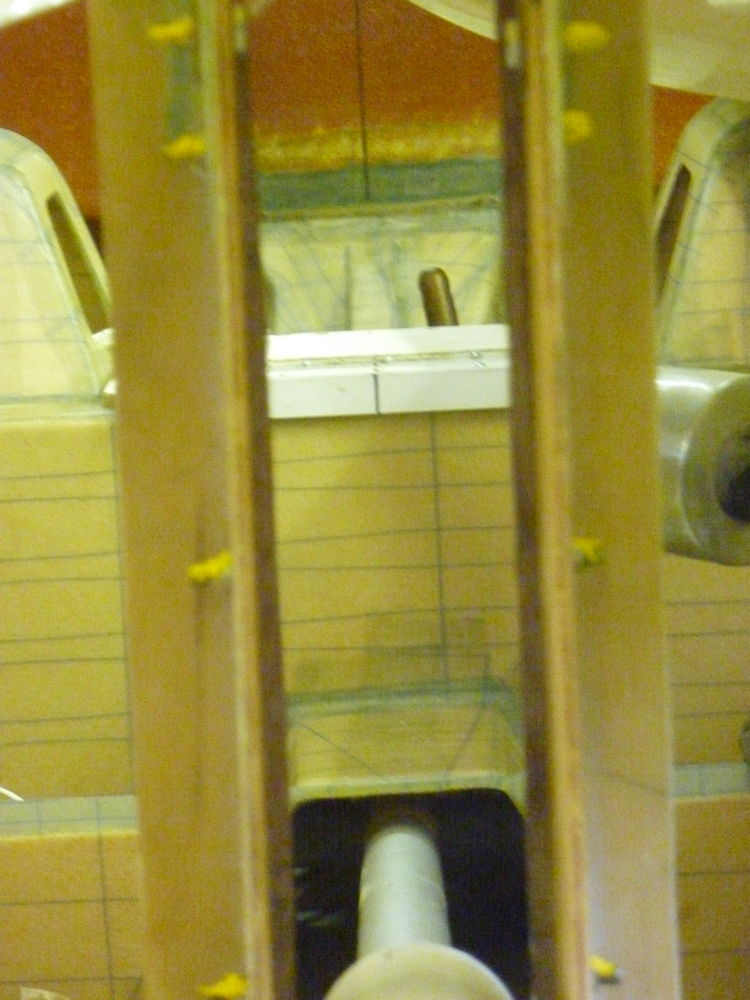

fuselage centre line marks

fuselage centre line marks: 2014-05-13

Lumix DMC-FT1

Taking the camera forward of the fuselage rear bulkhead allowed it to focus better on the distant lines. This shot demonstrates that the 2 marked centre lines (on the levelling jig and on the firewall) are well-aligned with the pitch pushrod and the centre of the containment bulkhead.
