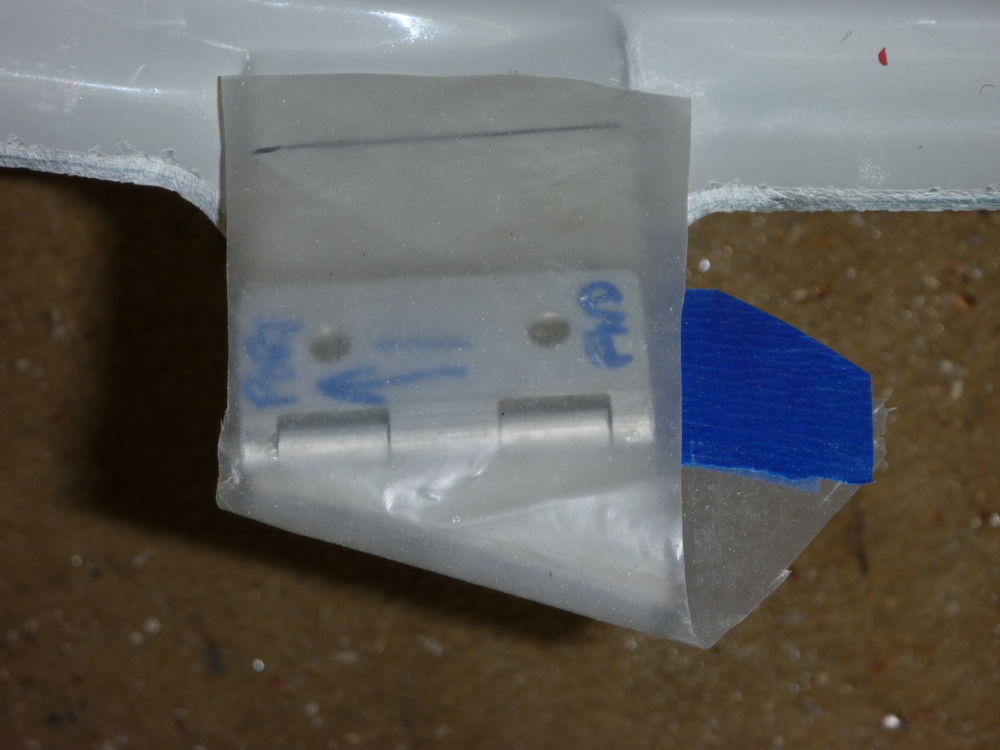

door hinge masked: 2017-03-04 Panasonic DMC-FT1
Port forward hinge (#1) covered with polyethylene sheet to protect it while moulding the flox pad on the fuselage recess. The flox pad had to be added because the hinge mounting pad in the fuselage recess as manufactured was too low to give correct alignment of the door.

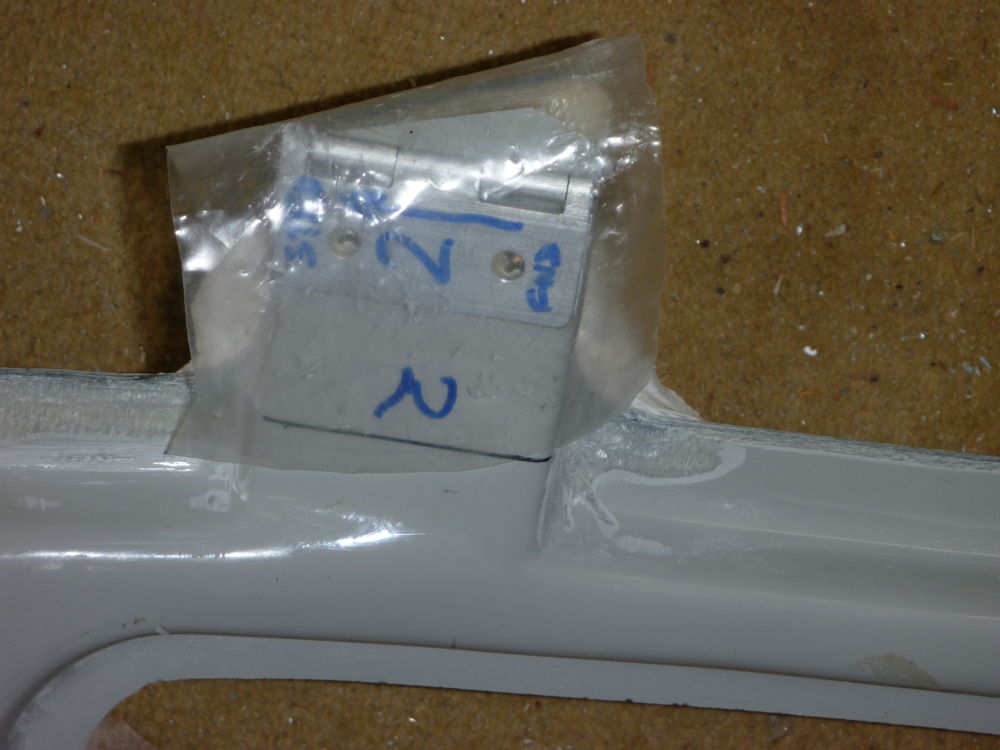

door hinge masked: 2017-03-04 Panasonic DMC-FT1
Starboard forward hinge (#2) covered with polyethylene sheet to protect it while moulding the flox pad on the fuselage recess. The flox pad had to be added because the hinge mounting pad in the fuselage recess as manufactured was too low to give correct alignment of the door.

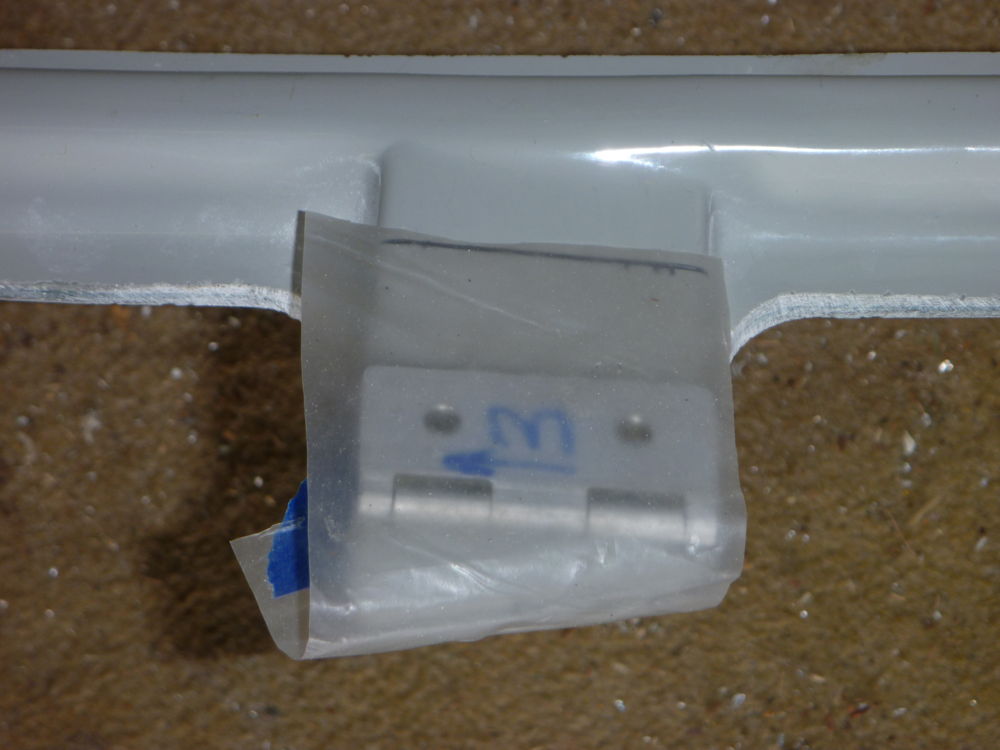

door hinge masked: 2017-03-04 Panasonic DMC-FT1
Port aft hinge (#3) covered with polyethylene sheet to protect it while moulding the flox pad on the fuselage recess. The flox pad had to be added because the hinge mounting pad in the fuselage recess as manufactured was too low to give correct alignment of the door.

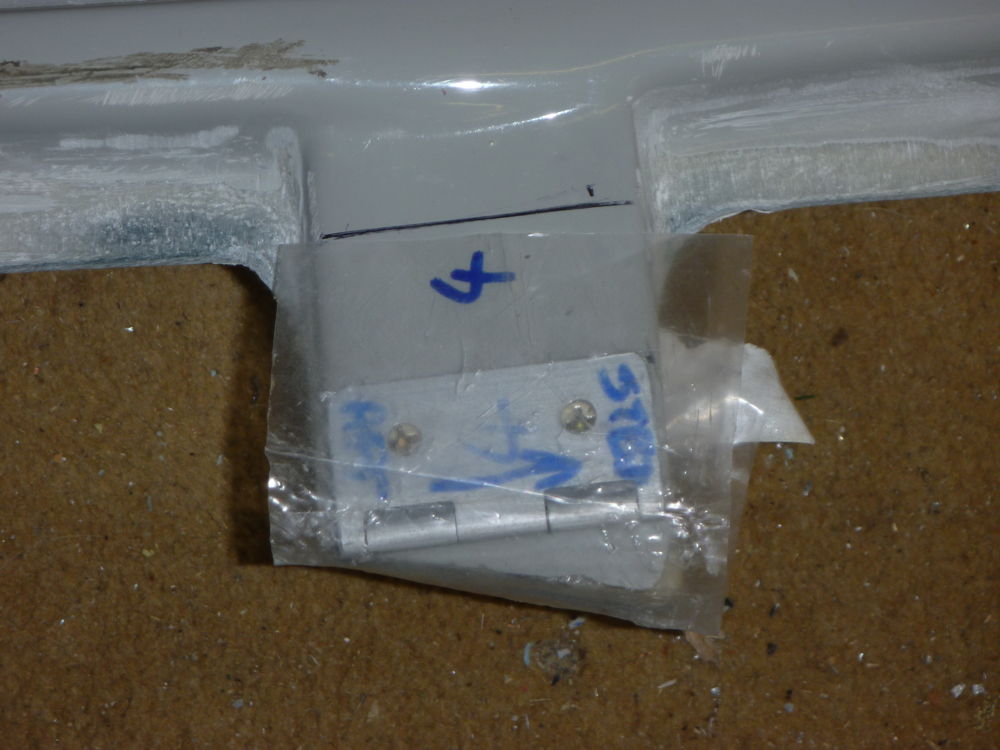

door hinge masked: 2017-03-04 Panasonic DMC-FT1
Starboard aft hinge (#4) covered with polyethylene sheet to protect it while moulding the flox pad on the fuselage recess. The flox pad had to be added because the hinge mounting pad in the fuselage recess as manufactured was too low to give correct alignment of the door.
