headset solder joints supported
|
 |
headset solder joints supported
headset socket box wiring: 2020-12-11 Panasonic DMC-FT1

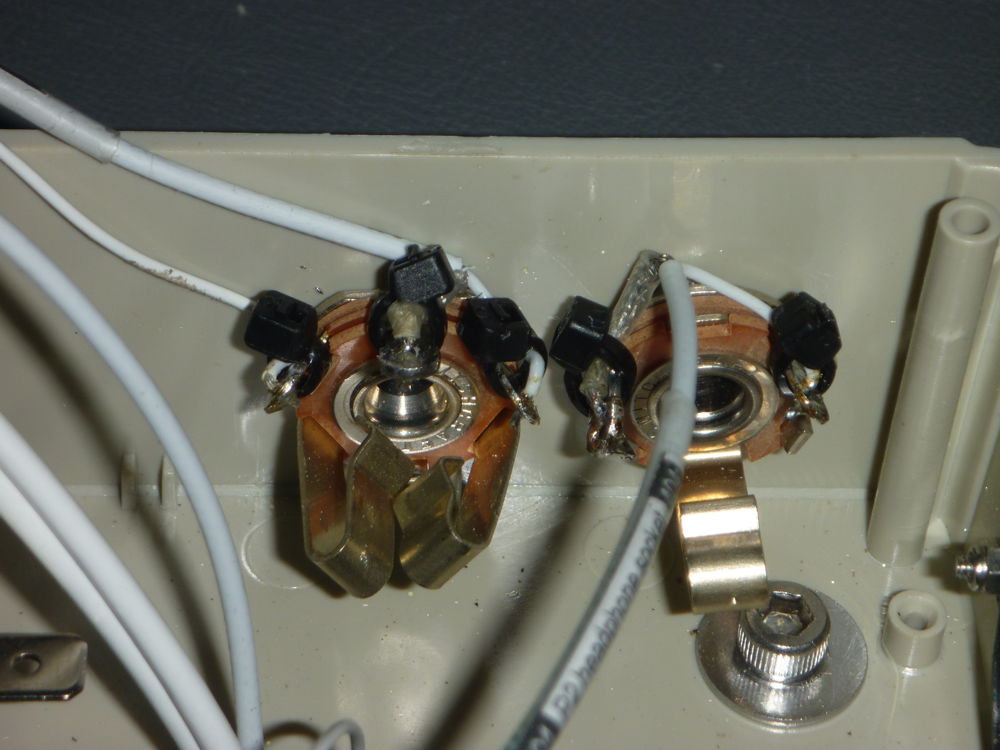

Wiring the headset sockets; after soldering, the wires have been dressed back along the solder tags of the sockets and secured to them with small cable ties. This is to provide mechanical support and prevent movement of the wires at the soldered area, which would cause early failure of the joints.
|
