fuel pipe from gascolator to pump

gascolator and fuel pump

gascolator and fuel pump: 2015-10-17 Panasonic DMC-FT1

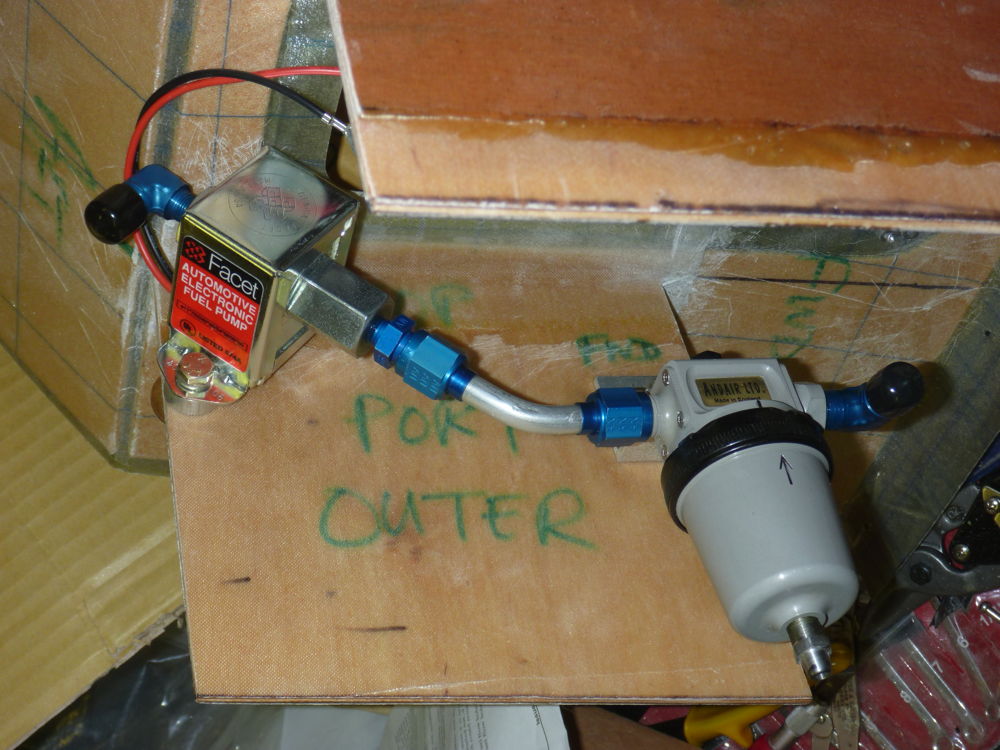

The Andair gascolator and the fuel pump fitted to the port outboard rib underneath the baggage bay bulkhead. The pipe between them is the shortest in which I could make a 45-degree bend and still have room to flare the ends. At the top of the picture, visible on the inner face of the inboard rib is the thin SRBF sheet bonded on to act as a rubbing surface for the rudder cable.
