firewall templates

2 pictures on this page - scroll down to see the rest

firewall templates tryout

firewall templates tryout: 2015-10-16 Panasonic DMC-FT1

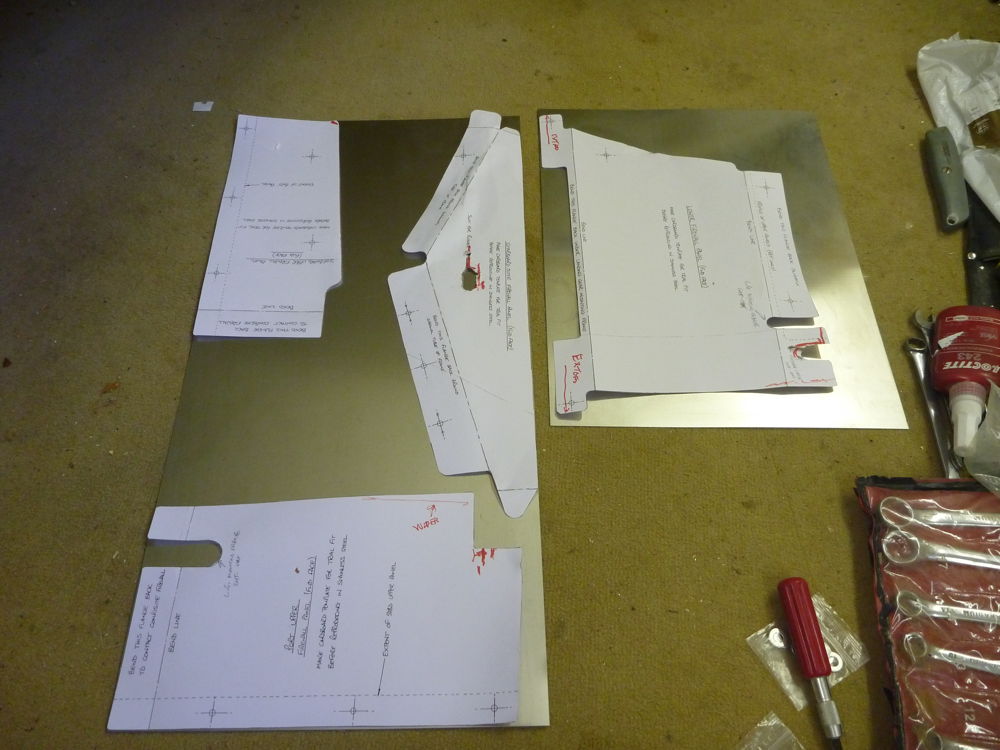

The templates for the firewall parts (printed on thin card - 210 gsm) laid onto the stainless steel sheet to determine the best layout.

firewall templates stuck to steel sheet

firewall templates stuck to steel sheet: 2015-10-17 Panasonic DMC-FT1

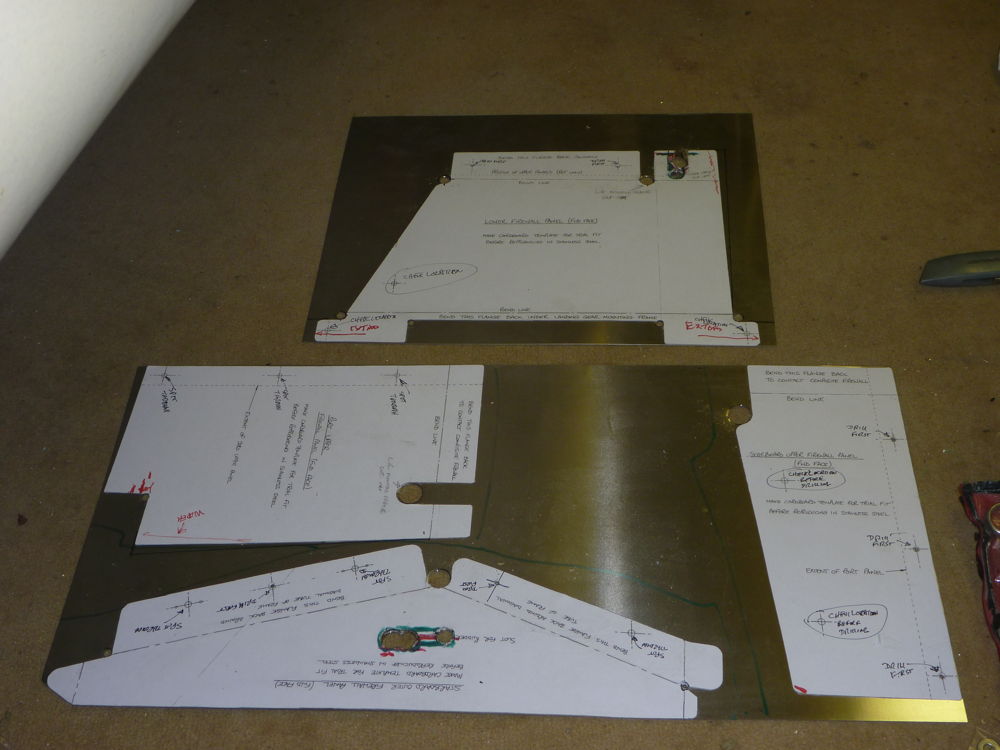

The final arrangement of the firewall templates, stuck to the stainless steel sheets with 3M Photo Mount. I have drilled holes for the rudder cables and at all the internal angles to prevent stress-risers. The bottom left-hand corner of the larger piece has already been cut off as a test of the snips.
