fuel pipe to gascolator

gascolator inlet pipe

gascolator inlet pipe: 2015-10-30 Panasonic DMC-FT1

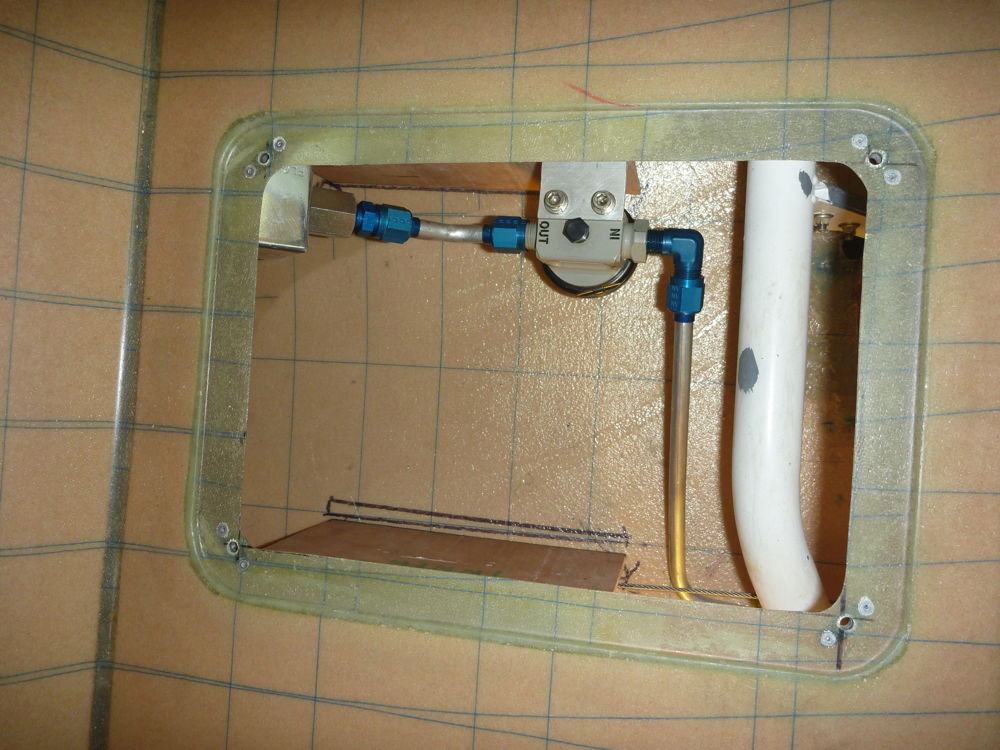

Looking down through the port access hole in the baggage bay floor, showing the fuel pipe from the selector valve connected to the gascolator. The pipe runs aft along the fuselage floor to keep clear of the rudder cable before the upward bend to align with the elbow on the gascolator. The baggage bay bulkhead and supporting ribs are not yet bonded in.
