fuel pipe support bracket: 2015-11-03 Panasonic DMC-FT1

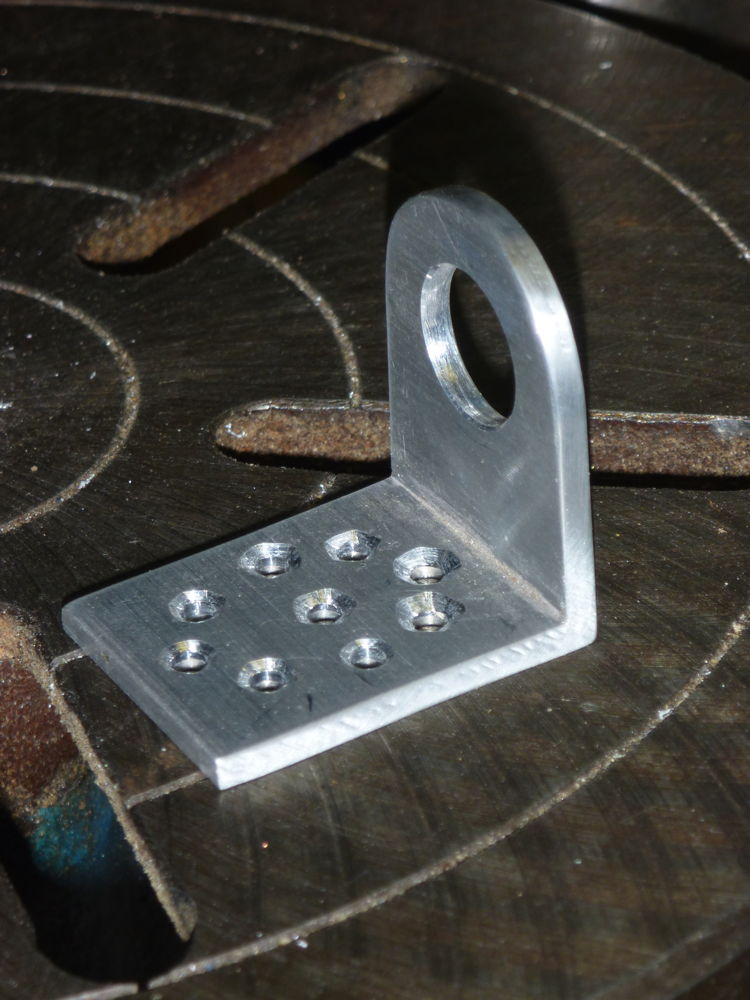

A bracket made from aluminium angle to support the fuel line union between the rigid aluminium pipe inside the fuselage and the stainless steel braided hose in the tunnel. It will be bonded to the fuselage floor just forward of the tunnel bulkhead.
fuel pipe support bracket: 2015-11-03 Panasonic DMC-FT1

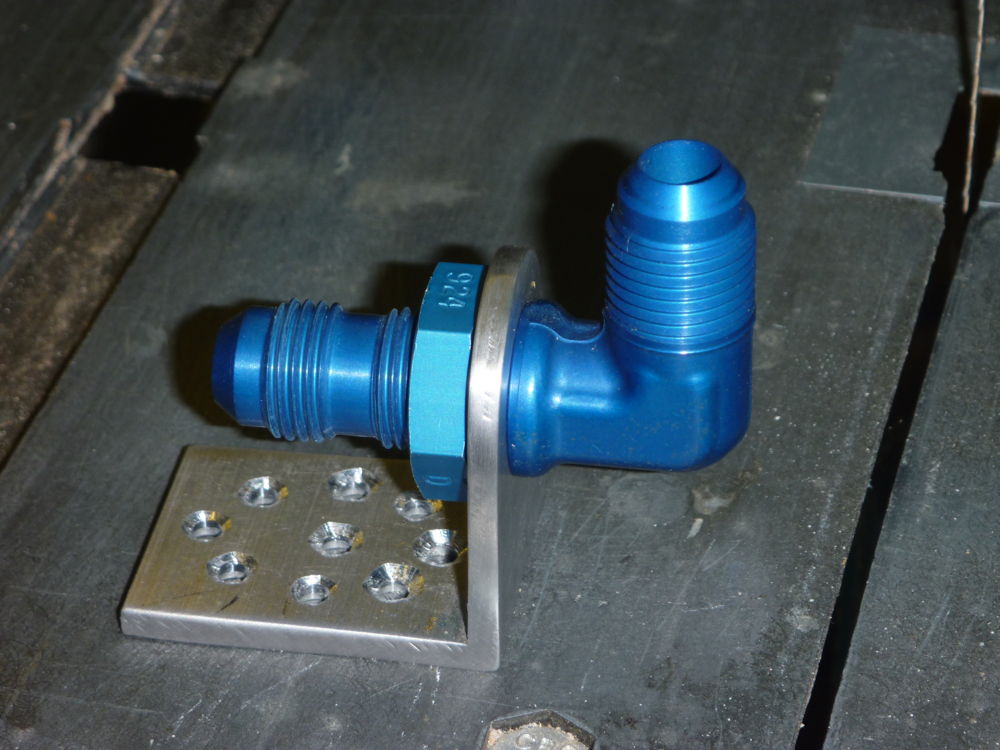

A bracket made from aluminium angle to support the fuel line elbow union between the rigid aluminium pipe inside the fuselage (at the left on this picture) and the stainless steel braided hose in the tunnel. It will be bonded to the fuselage floor just forward of the tunnel bulkhead.
