fuse tray cover with legend

2 pictures on this page - scroll down to see the rest

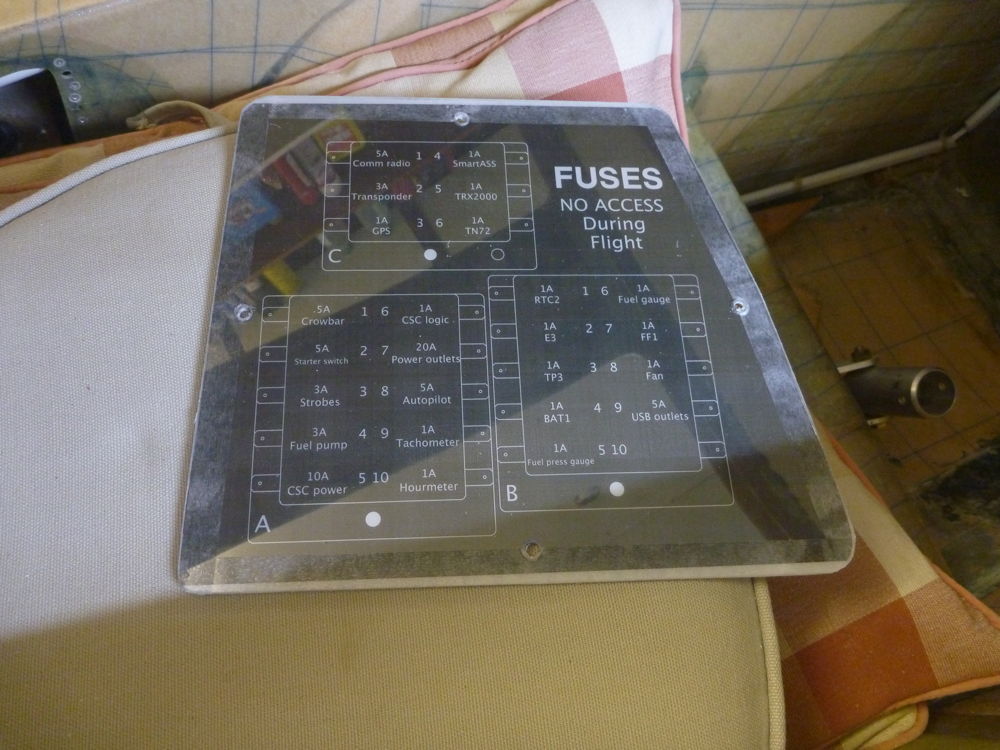

fuse panel cover with legend

fuse panel cover with legend: 2023-06-21 Panasonic DMC-FT1

The cover for the fuse panel with the legend film and drafting film diffuser fitted between the 2 layers of polycarbonate.

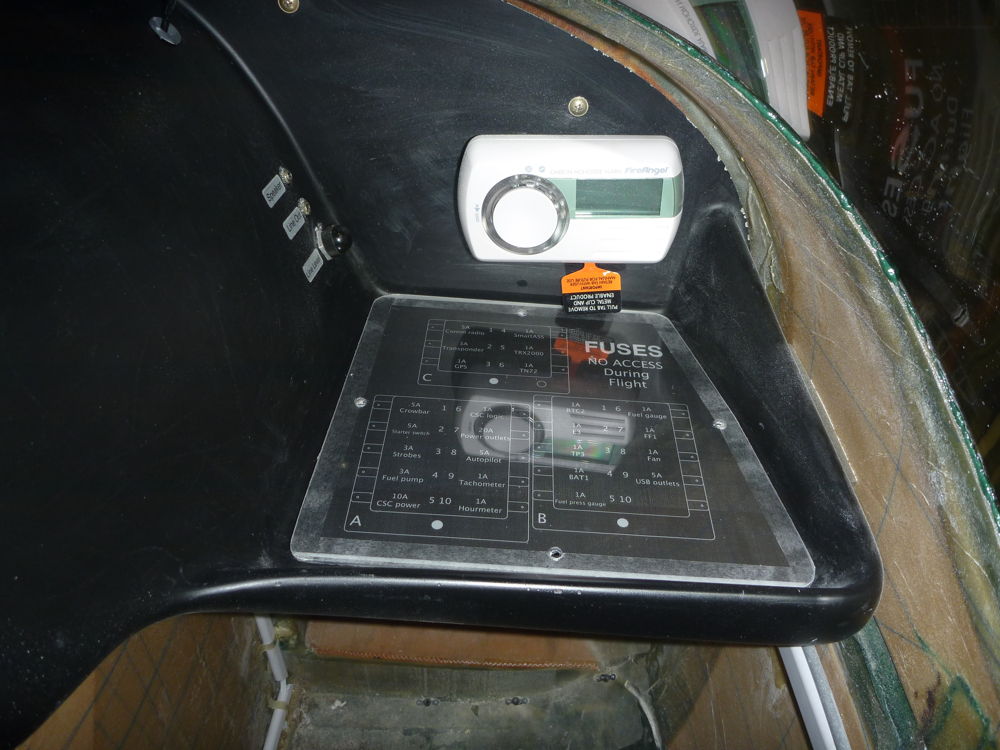

fuse panel cover in place

fuse panel cover in place: 2023-06-21 Panasonic DMC-FT1

The cover for the fuse panel in place on the parcel shelf at the starboard side fo the Instrument Module.
