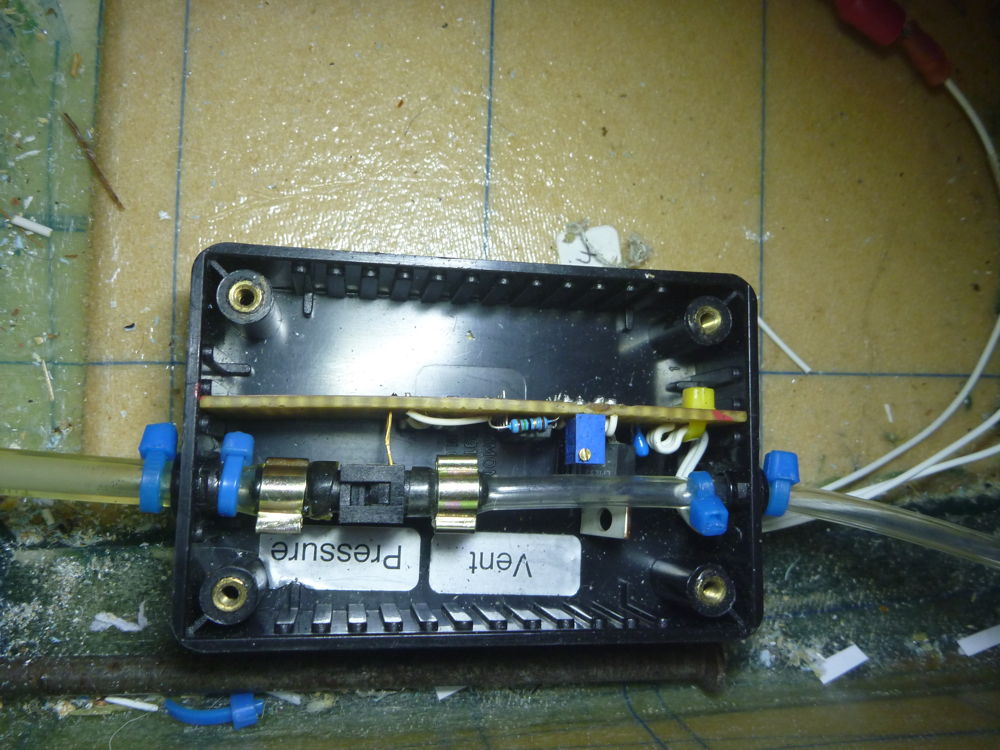

fuel weight sensor repaired: 2022-01-03 Panasonic DMC-FT1
The fuel weight sensor re-assembled after repairs. One of the pins on the pressure sensor broke because of excessive handling. I re-soldered the sensor to the PCB with all pins shortened. That meant that the PCB had to be located in a different slot, so the pressure & vent tubes would line up with the holes in the box. I had also been dissatisfied with the fit of the tubes and clamps for the pressure and vent ports and here the assembly is much better.
