Fuel weight sensor tube attachment 2nd try

2 pictures on this page - scroll down to see the rest

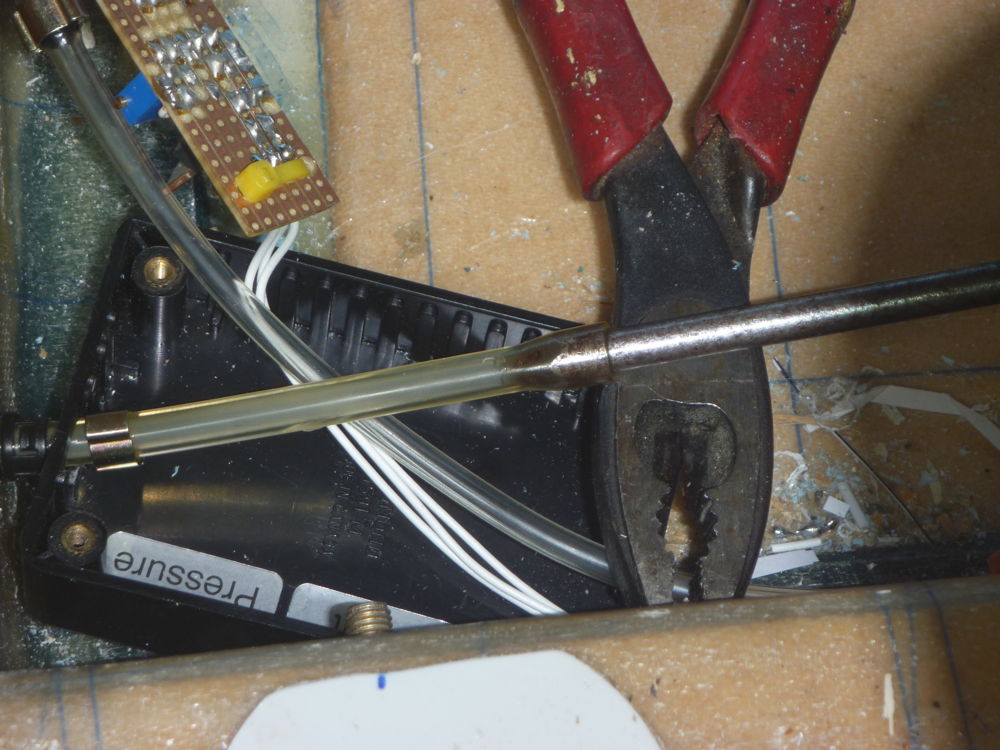

enlarging fuel weight sensor tube again

enlarging fuel weight sensor tube again: 2021-12-13 Panasonic DMC-FT1

After a failure, starting again to get the pressure-side tubing onto the fuel weight sensor port. I've pushed a warm nail into the end of the tube and it is now cooling to let the tube take a set with a slightly larger bore. The nail is resting on the pliers so that it won't melt the plastic box in which the sensor PCB is mounted.

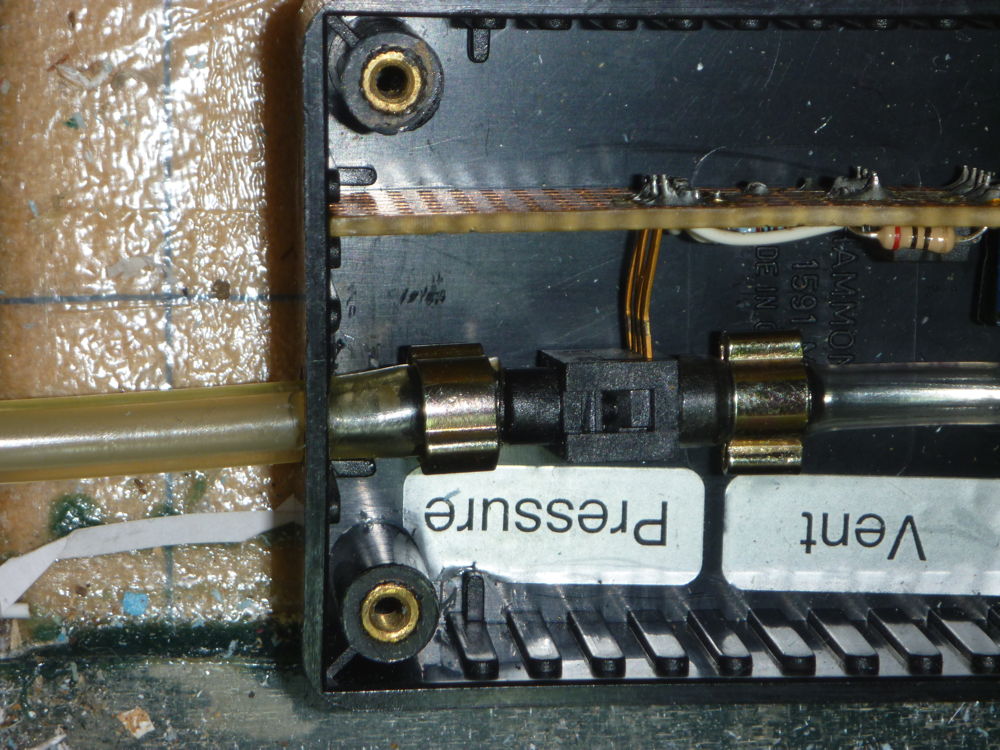

fuel weight sensor tubing connexion

fuel weight sensor tubing connexion: 2021-12-13 Panasonic DMC-FT1

The pressure-side tubing fitted and clamped to the sensor port. Ideally I'd have preferred the tube to fit further onto the port but this seems to be secure enough.
