flap slot damage inside
|
|
flap slot damage inside |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

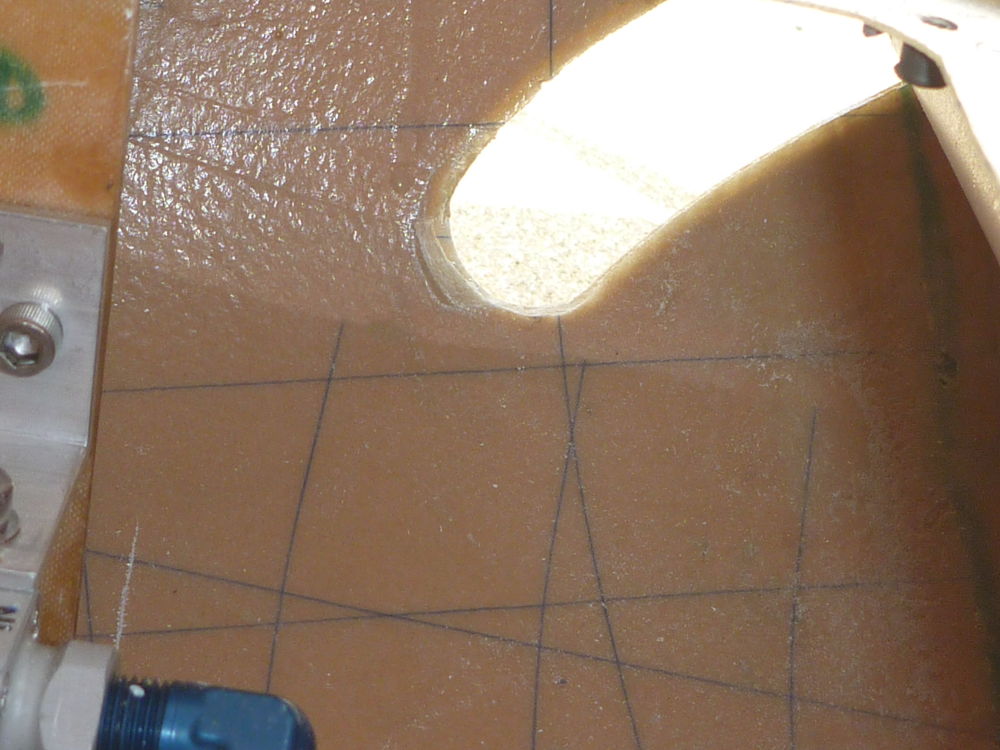

flap slot damage: 2017-04-01 Panasonic DMC-FT1
The inside of the fuselage showing the damage to the aft end of the port slot where the flap operating tube was pushed against it. The damage on the inside appears to be limited to slight crushing of the flox-filled edge of the hole.

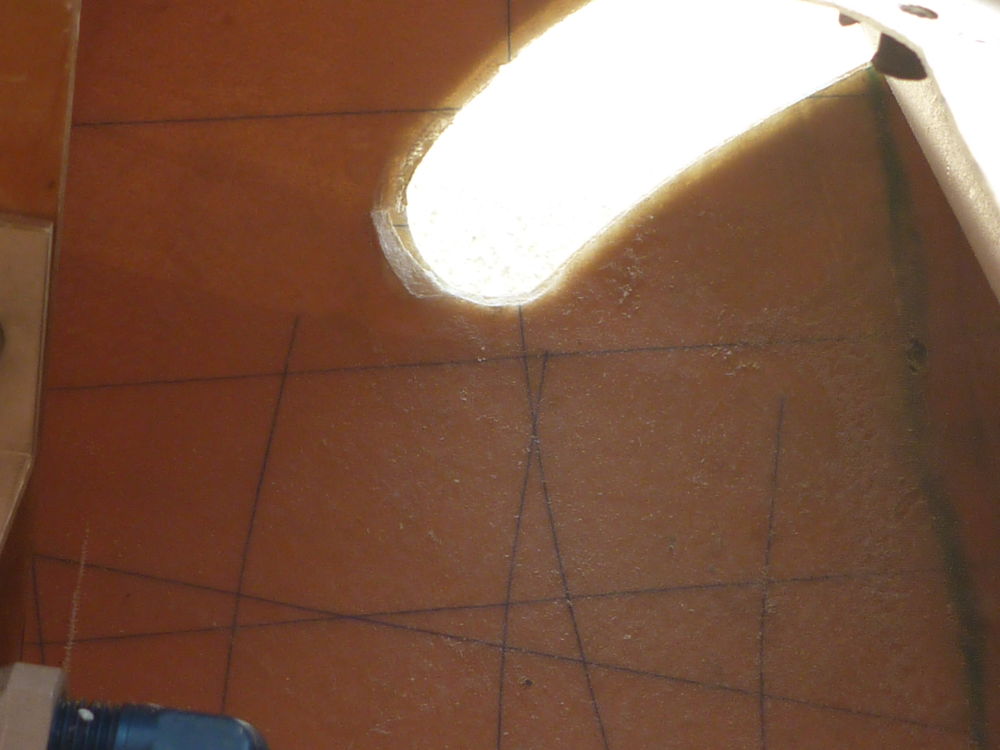

flap slot damage: 2017-04-01 Panasonic DMC-FT1
The inside of the fuselage showing the damage to the aft end of the port slot where the flap operating tube was pushed against it. The damage on the inside appears to be limited to slight crushing of the flox-filled edge of the hole. This picture taken without flash so the daylight outside can silhouette any cracks through the brown foam - and there are none visible.

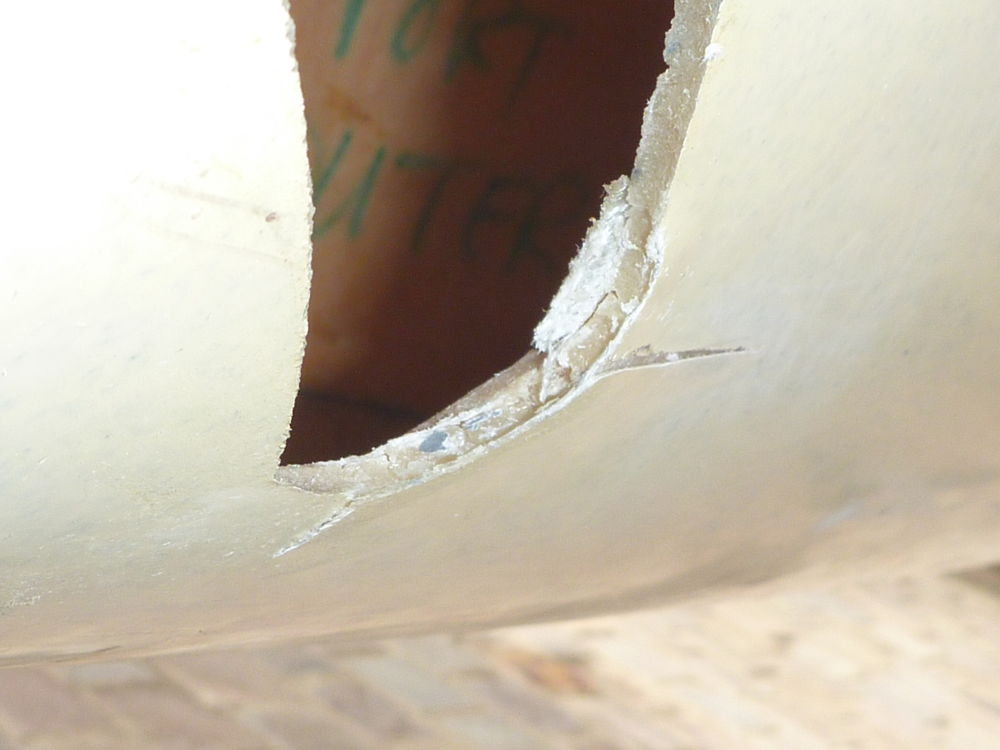

flap slot damage: 2017-04-01 Panasonic DMC-FT1
The outside of the fuselage showing the damage to the aft end of the port slot where the flap operating tube was pushed against it. The damage appears to be mostly the 2 cracks in the outer skin; the inner skin and the brown foam layer seem to be intact.
