FL18 hinge brackets on straight-edge
|
|
FL18 hinge brackets on straight-edge |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
fuselage flap hinges on straight-edge - first try: 2015-02-12
Lumix DMC-FT1

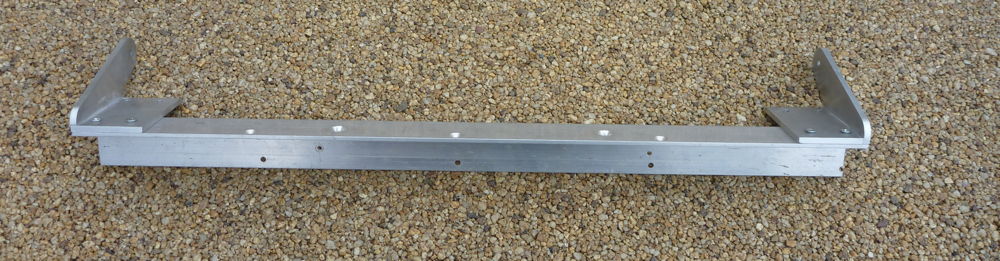

The FL18 hinge brackets for the flap cross-tube mounted on a straight-edge for alignment. Unfortunately, with this arrangement, the upright part of the aluminium angle straight-edge fouled the bend in the centre of the cross-tube, and the protruding ends of the straight-edge fouled the FL16 hinge arms.
fuselage flap hinges on straight-edge - second try: 2015-02-12
Lumix DMC-FT1

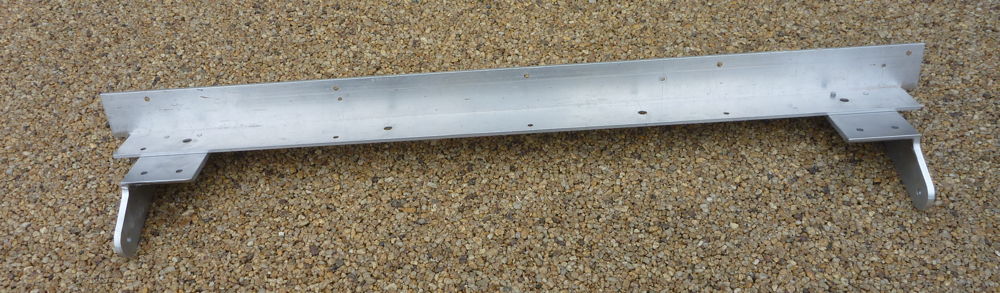

The straight-edge shortened and reversed to avoid fouling the cross-tube and the hinge arms.
