FL18 hinge bracket alignment - first try

fuselage flap hinge alignment - first try

fuselage flap hinge alignment - first try: 2015-02-12

Lumix DMC-FT1

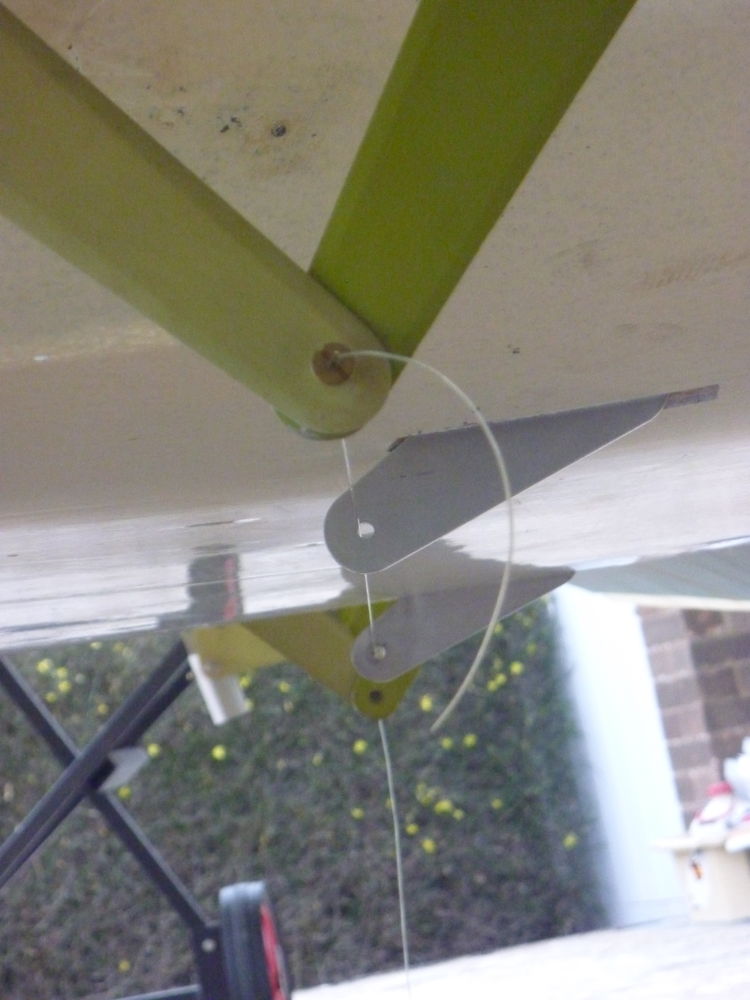

A piece of nylon monofilament line stretched between the inboard wing flap hinges and passing through the fuselage hinges. The fuselage hinges are too far aft by about 4mm.
