fuel filler vents

fuel filler vents: 2016-03-09 Panasonic DMC-FT1

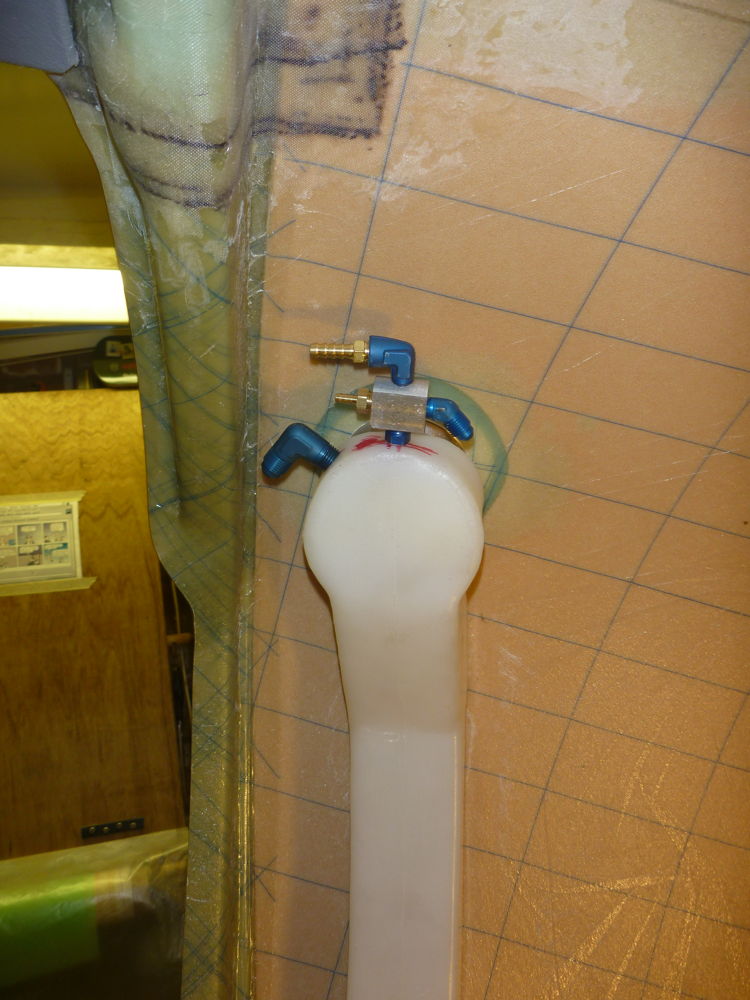

The various pieces of hardware for fuel vent arrangements trial assembled to the top of F18 filler neck. The left-hand elbow will connect to aluminium pipe coming up from the tank vent. The right-hand elbow will connect to aluminium pipe going down through the baggage shelf and venting to atmosphere. The upper brass hose nipple will connect to the fuel sight gauge and the lower one will connect to the rear port of the digital fuel level sensor.

blue foam spacer for F18 filler neck

blue foam spacer for F18 filler neck: 2016-03-09 Panasonic DMC-FT1

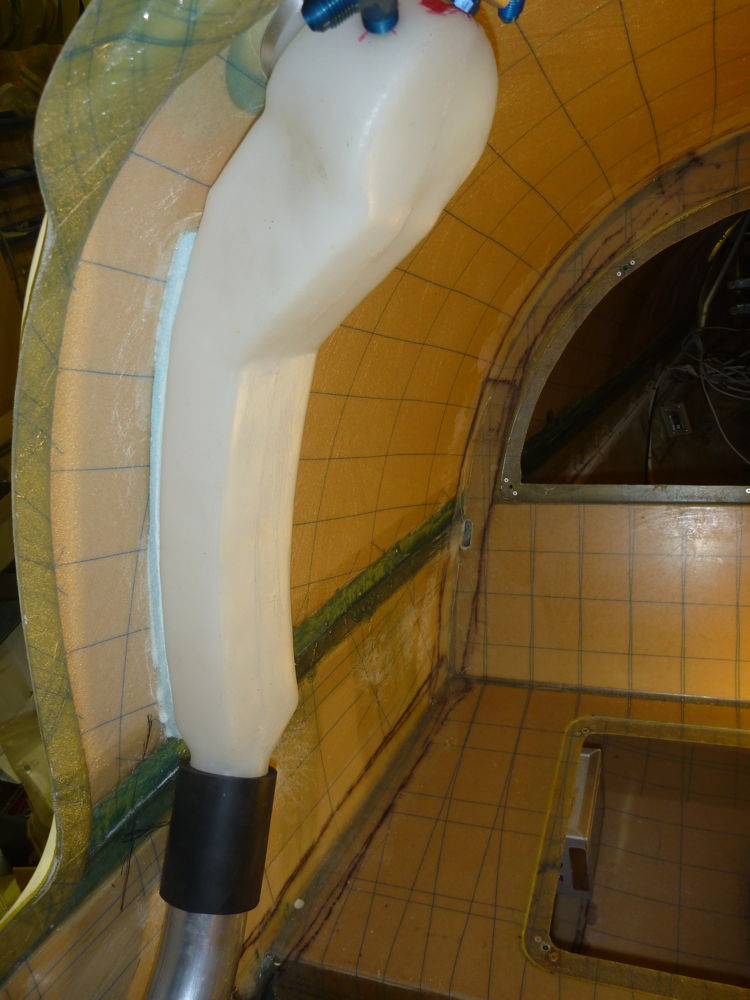

Trail assembly of F18 fuel filler neck showing blue foam spacer between F18 and fuselage.
