trail fit of water radiator
|
|
trail fit of water radiator |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest

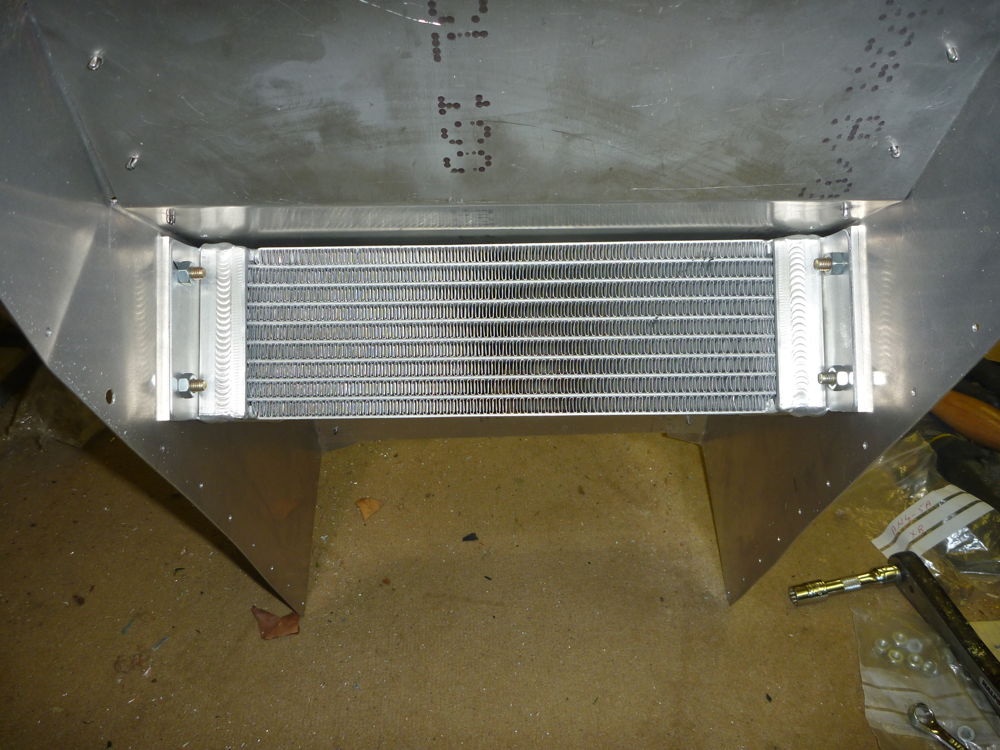

cooling duct with radiator fitted: 2016-10-15 Panasonic DMC-FT1
The water radiator test-assembled to the cooling duct. There are aluminium plate spacers between the radiator flanges and the duct sides to fill the gaps there. Visible above the radiator is a small gap between it and the top part of the duct. That will need to be sealed. Just visible to the left of the radiator is the rivet hole in the duct side that was accidentally drilled out to 1/4". That will be corrected by inserting a stepped washer.

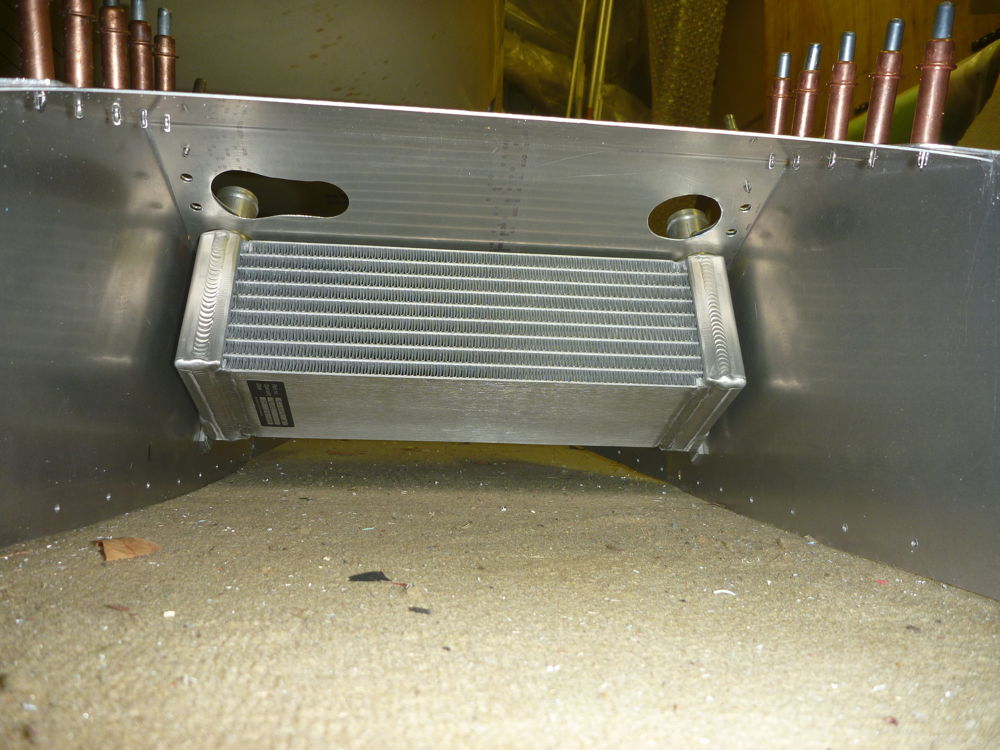

cooling duct with radiator fitted: 2016-10-15 Panasonic DMC-FT1
The water radiator test-assembled to the cooling duct.

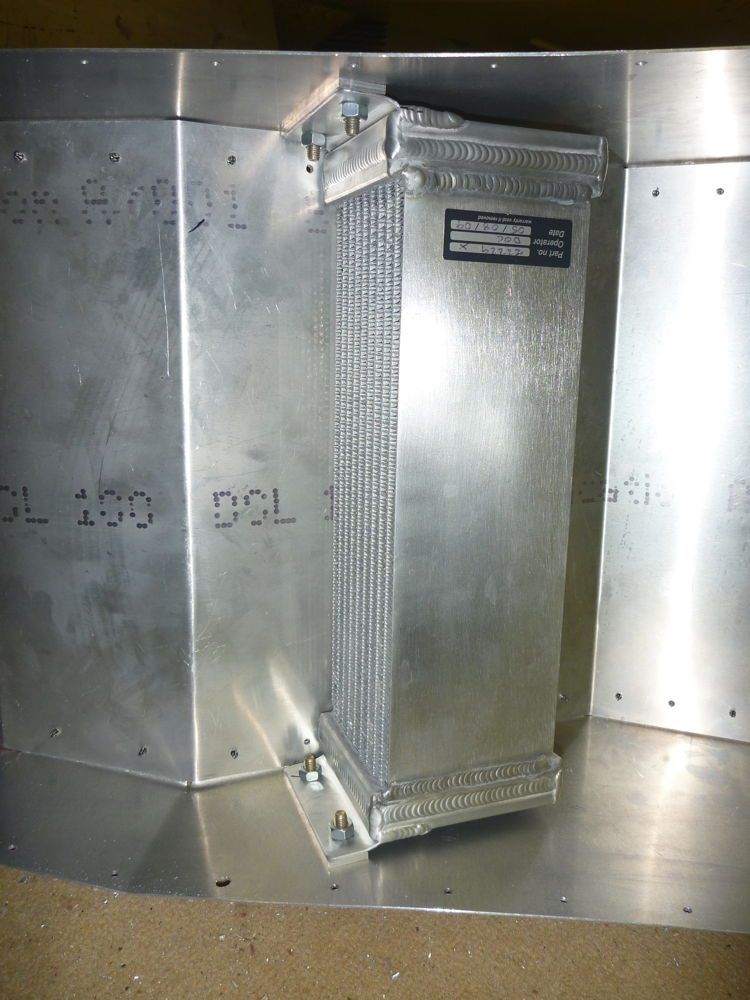

cooling duct with radiator fitted: 2016-10-15 Panasonic DMC-FT1
The water radiator test-assembled to the cooling duct.
cooling duct with radiator fitted: 2016-10-15 Panasonic DMC-FT1
The water radiator test-assembled to the cooling duct. The holes for the oil cooler connexions have been enlarged to fit the bosses on the oil cooler.
