doors hinged

4 pictures on this page - scroll down to see the rest

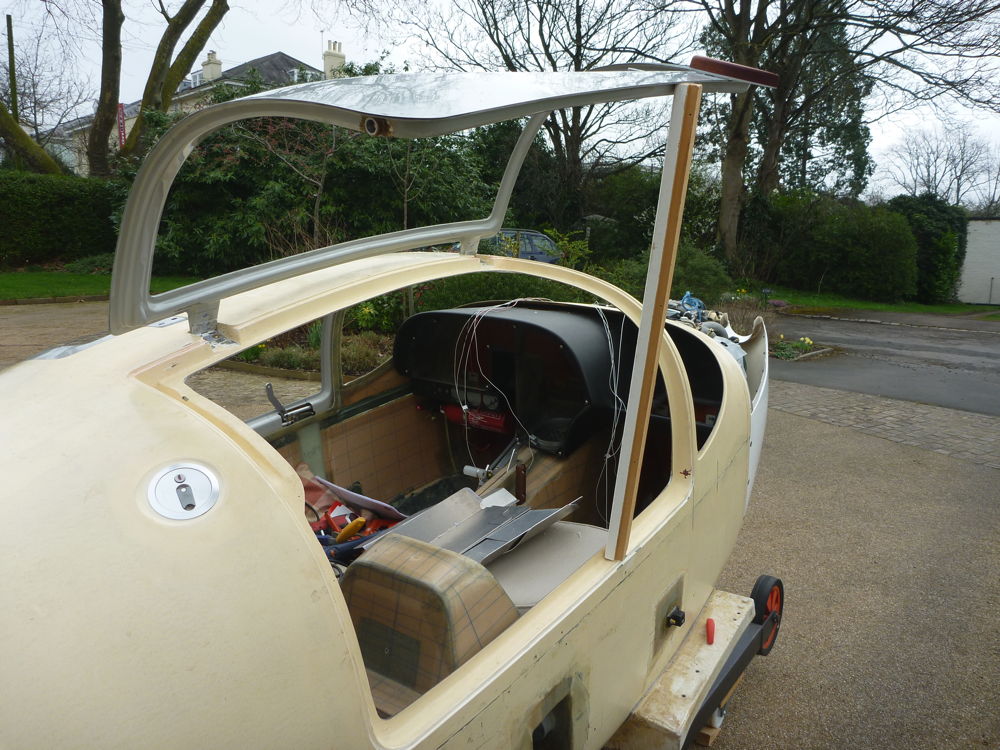

port door hinged

port door hinged: 2017-03-10 Panasonic DMC-FT1

The port door after fitting the hinges to the fuselage, propped up to show extent of opening.

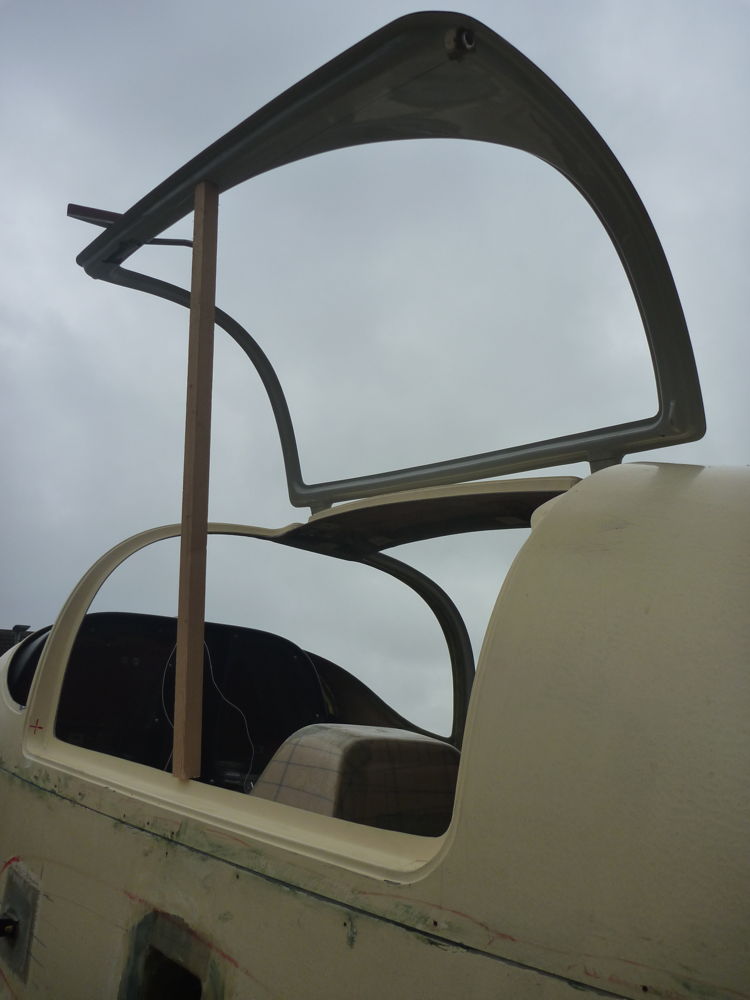

starboard door hinged

starboard door hinged: 2017-03-10 Panasonic DMC-FT1

The starbaord door after fitting the hinges to the fuselage, propped up to show extent of opening.

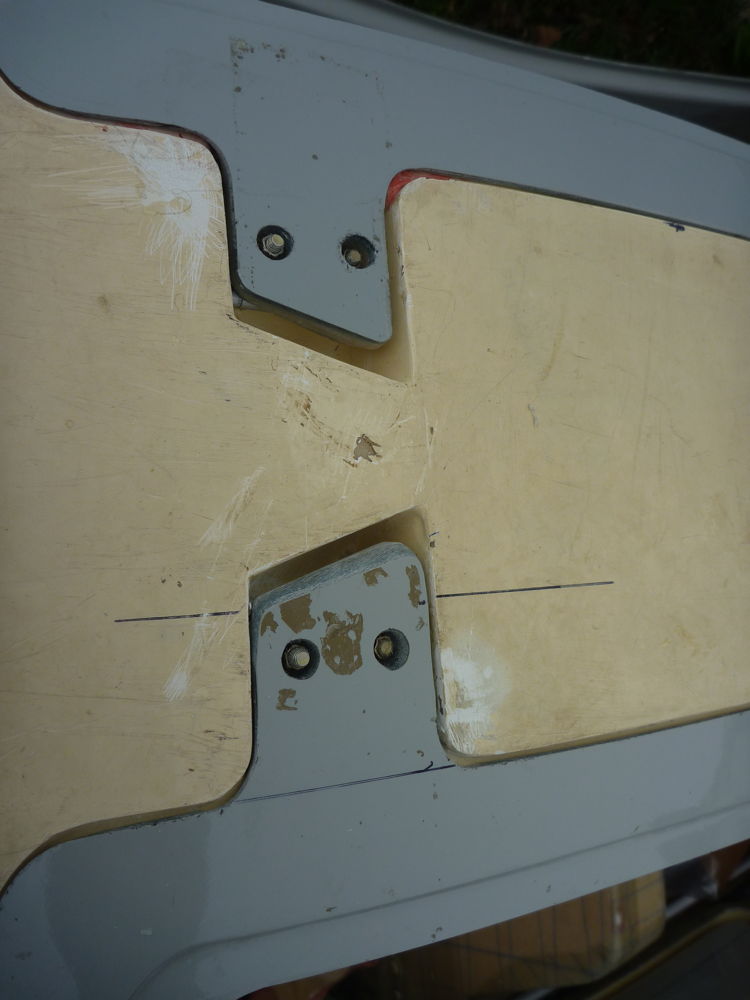

forward door hinges

forward door hinges: 2017-03-10 Panasonic DMC-FT1

The forward door hinges after fitting. Note the slightly different clearances that were needed on the port and starboard hinge tangs.

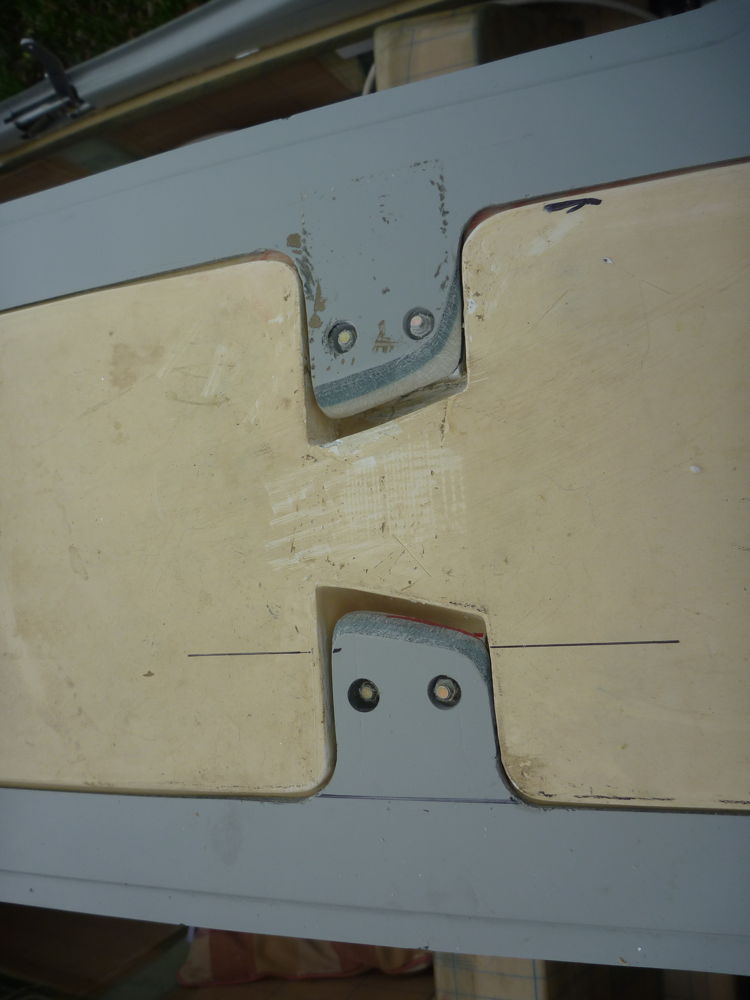

aft door hinges

aft door hinges: 2017-03-10 Panasonic DMC-FT1

The aft door hinges after fitting. Note the slightly different clearances that were needed on the port and starboard hinge tangs.
