door latch fitting

2 pictures on this page - scroll down to see the rest

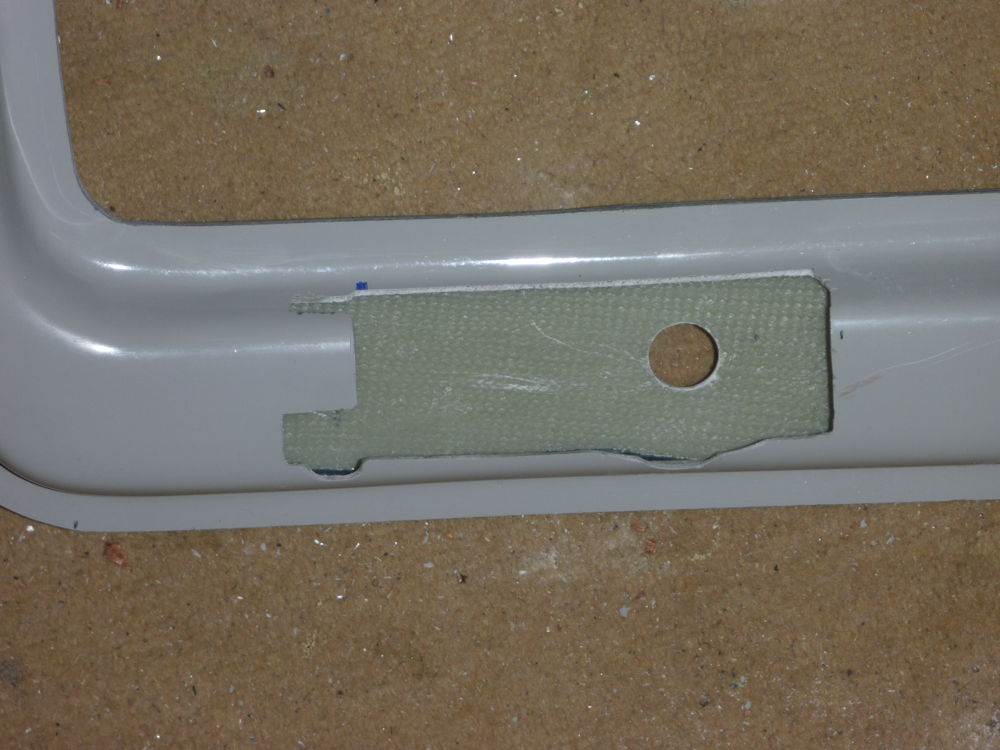

door cutout for handle mechanism

door cutout for handle mechanism: 2017-01-14 Panasonic DMC-FT1

The cutout in the starboard door for the handle mechanism. I had to enlarge it in several places from the dimensions in the manual to allow the mechanism to be fitted, and to operate freely.

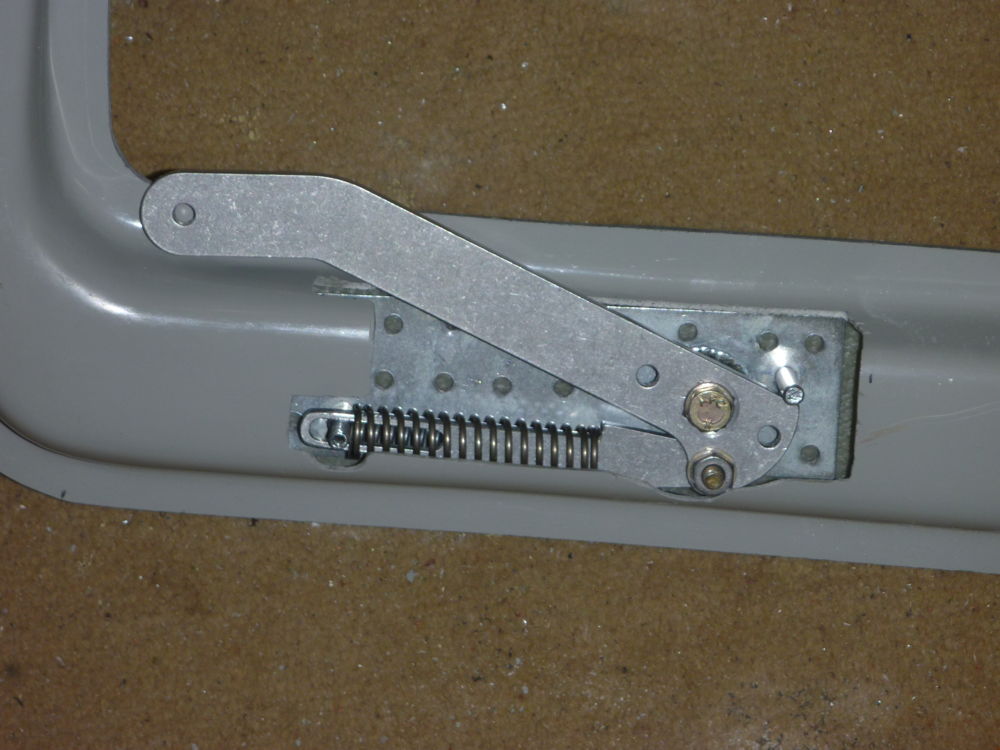

door latch fitting

door latch fitting: 2017-01-14 Panasonic DMC-FT1

The door latch mechanism test fitted to the starboard door.
