fitting door latch covers with screws

4 pictures on this page - scroll down to see the rest


fitting door latch covers

fitting door latch covers: 2021-04-21 Panasonic DMC-FT1

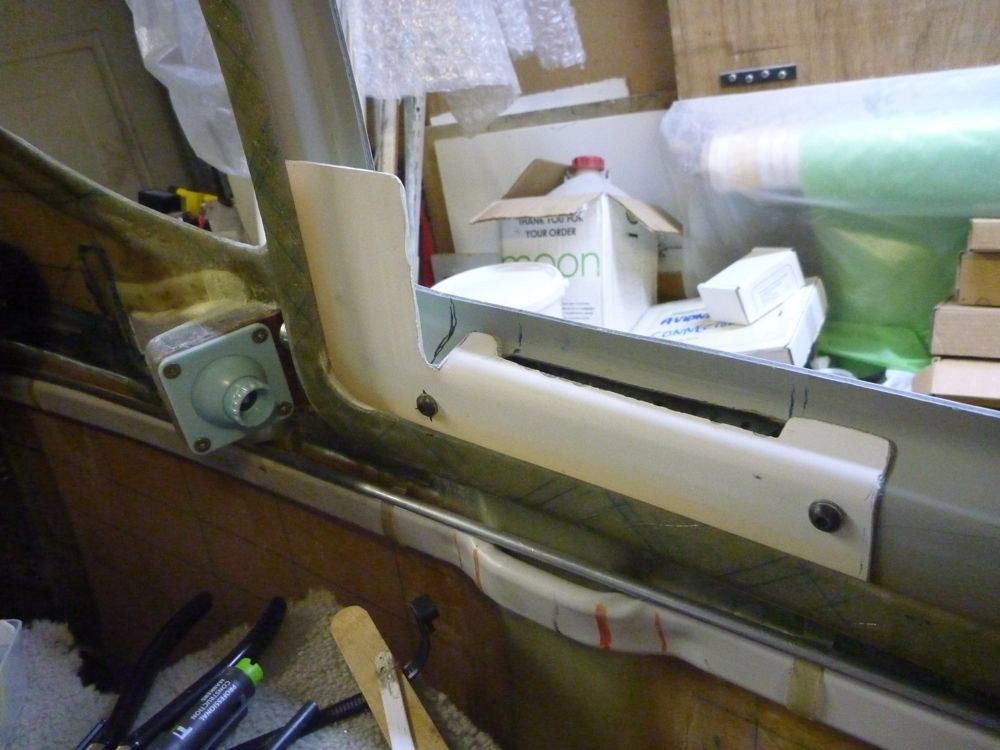

The starboard door latch cover fitted with temporary screws, shown here with the door closed. I decided to fit the covers in a way that they could be removed for service access to the door bolt mechanism, rather than bond them on permanently as suggested by the factory. This will also allow the door handles to be removed for painting the doors.


fitting door latch covers

fitting door latch covers: 2021-04-21 Panasonic DMC-FT1

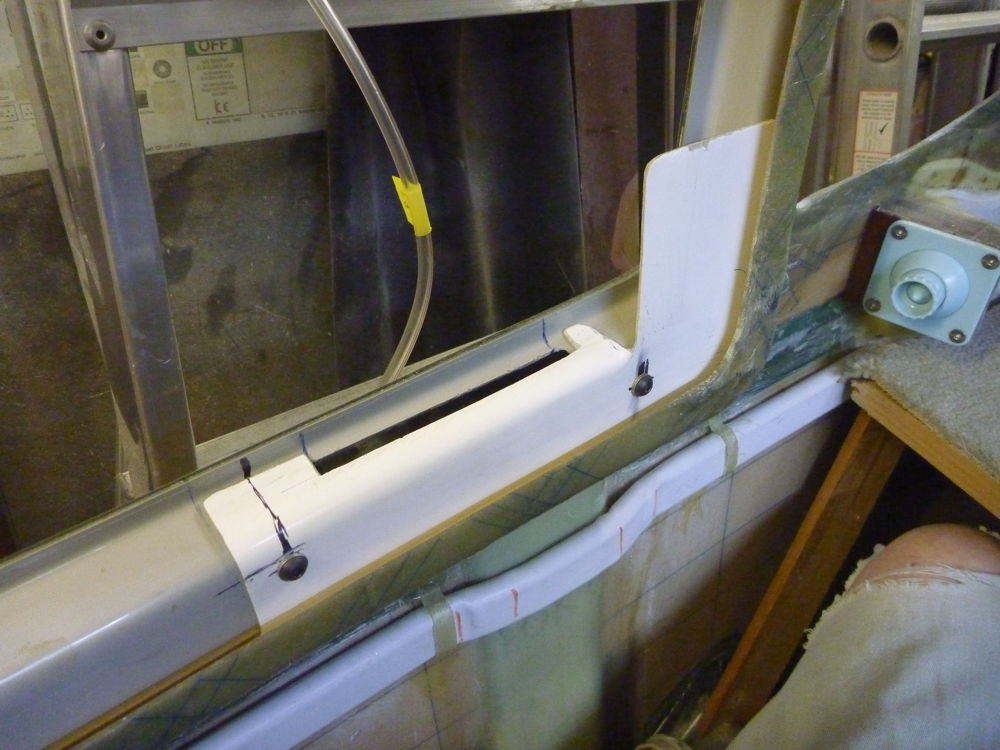

The starboard door latch cover fitted with temporary screws, here with the door open.


fitting door latch covers

fitting door latch covers: 2021-04-21 Panasonic DMC-FT1

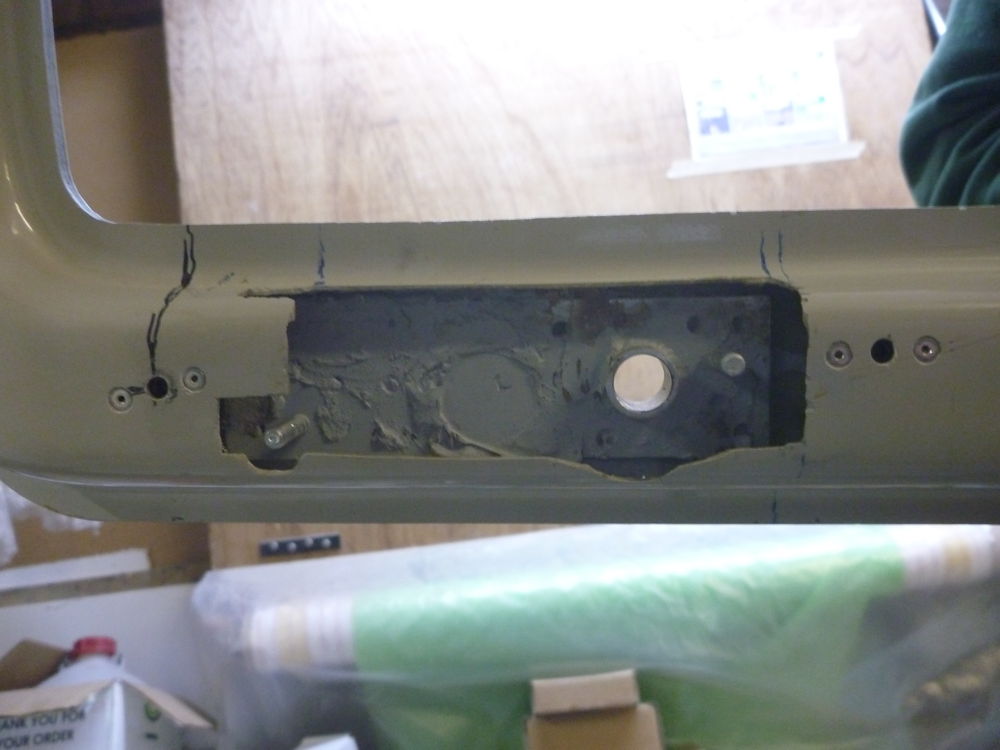

The access hole for the starboard door bolt mechanism, with the anchor nuts fitted fore and aft of the hole to retain the latch cover plate.


fitting door latch covers

fitting door latch covers: 2021-04-21 Panasonic DMC-FT1

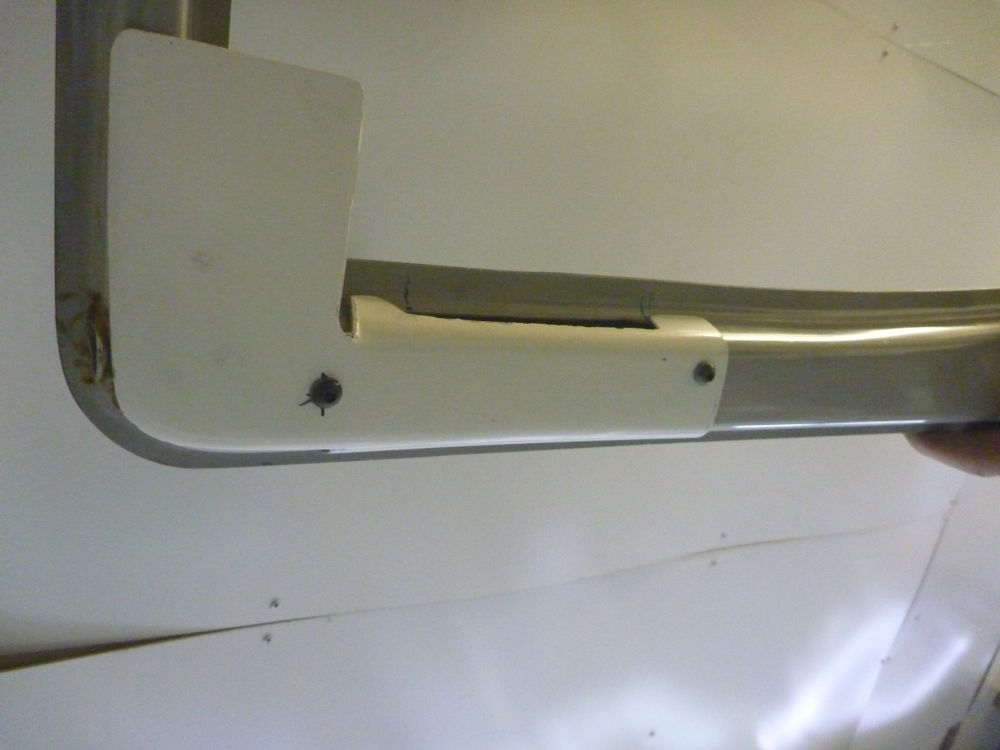

The port door latch cover fitted with temporary screws in the same manner as for the starboard one.
