Witness marks on CS22 & CS23

CS22 & CS23 bearing blocks

CS22 & CS23 bearing blocks: 2013-06-22

Panasonic Lumix DMC-FT1

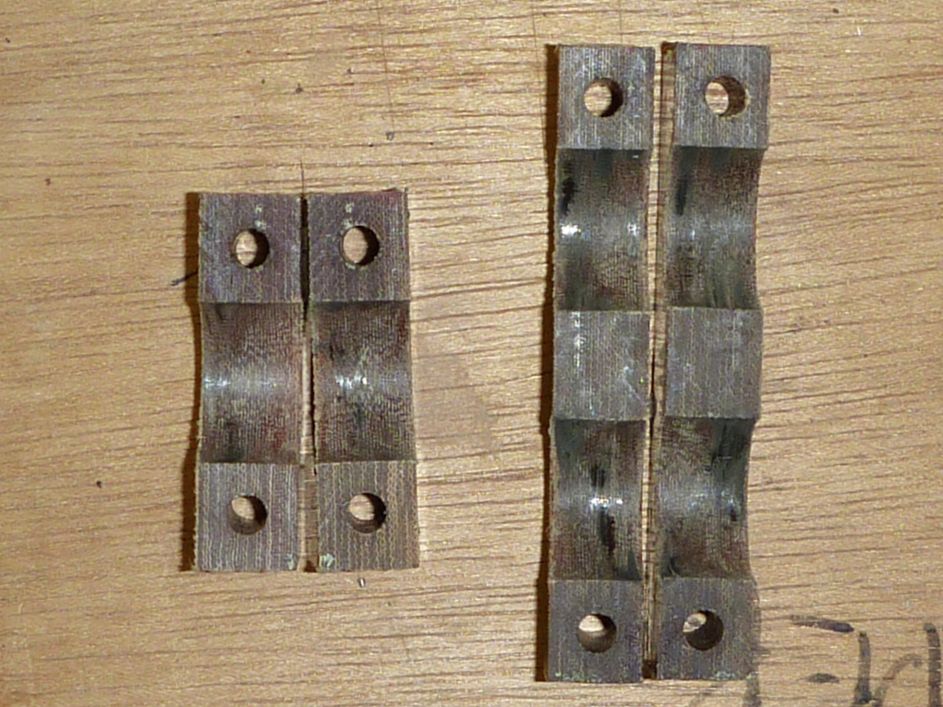

CS22 & CS23 bearing blocks dismantled after initial assembly of rudder pedal system. The black shiny marks show where the pedal shafts were rubbing on the bearings. I used a bearing scraper to remove material from the bearing blocks, to achieve a free-running fit.
