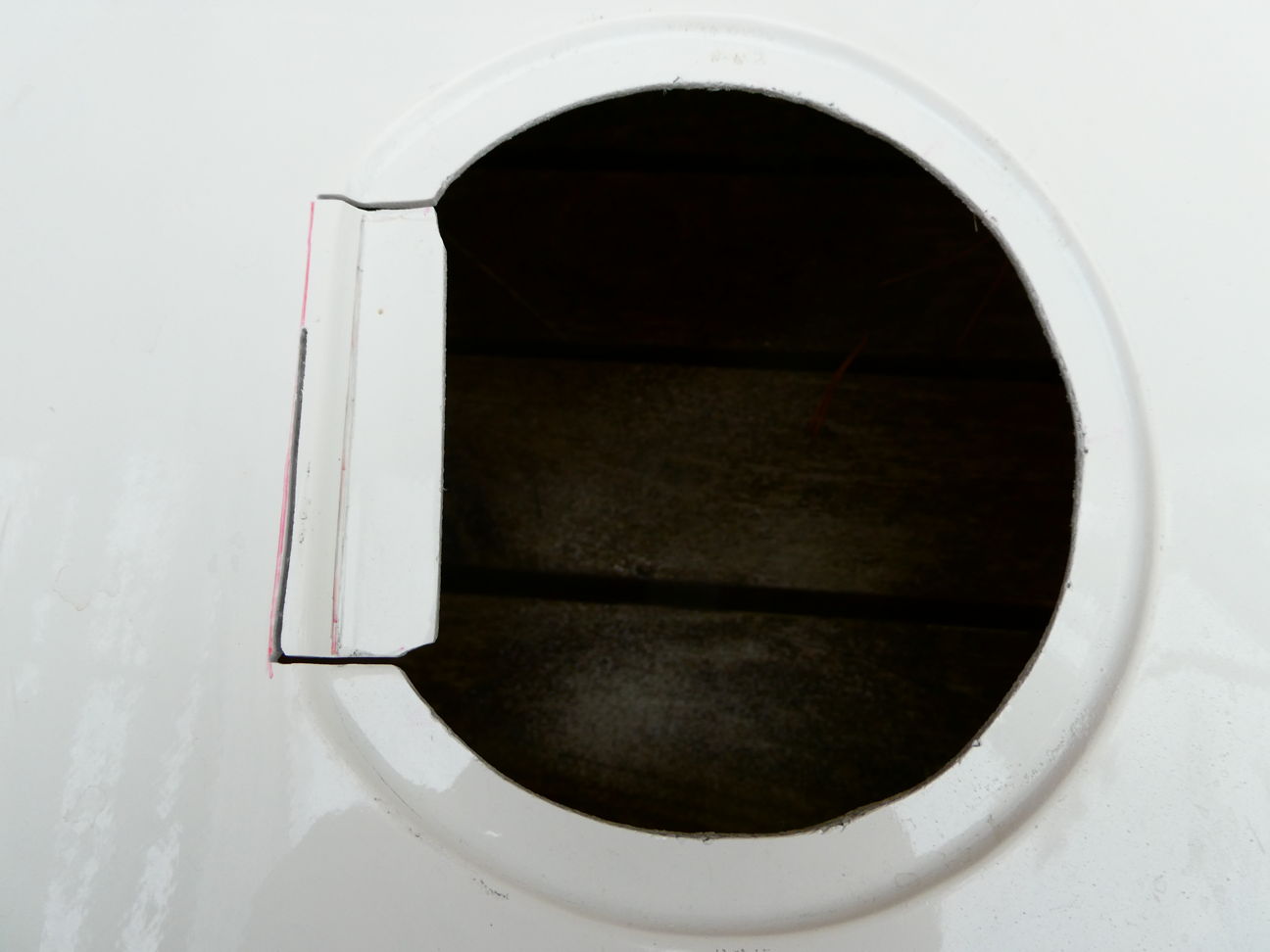

cutting centre cowl hatch hinge recess: 2023-08-28 Panasonic DC-TZ90
The centre access hole on the cowl, with the moulded recess partly cut away for the hinge. Note that the cutout is larger than that first made on the starboard access hole.

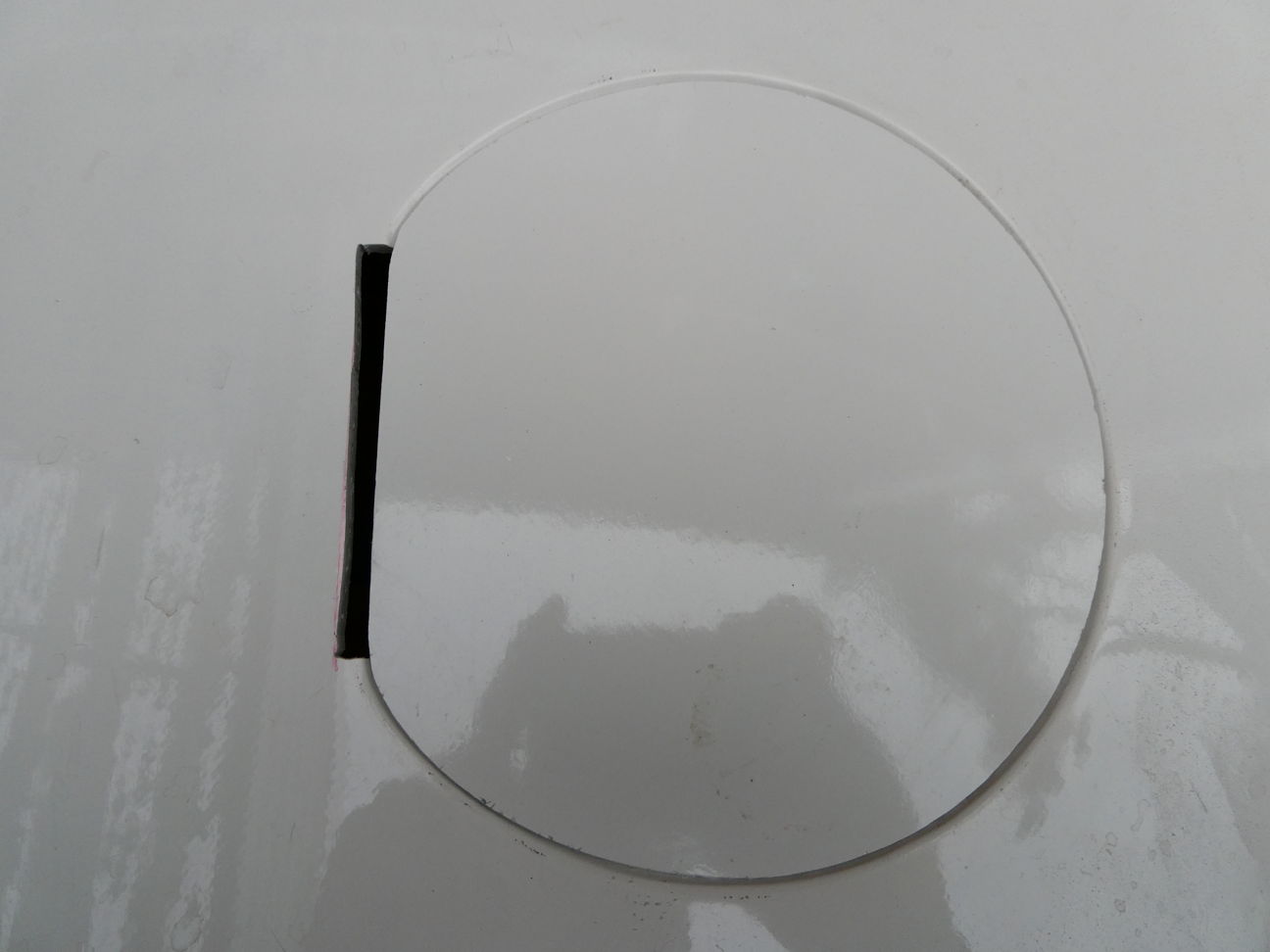

checking hinge slot on centre cowl access hole: 2023-08-28 Panasonic DC-TZ90
The hatch cover for the centre cowl access hole placed in position to check the size of the slot for the hinge knuckle.
