cowl trimming guide line

reference line for cowl trimming

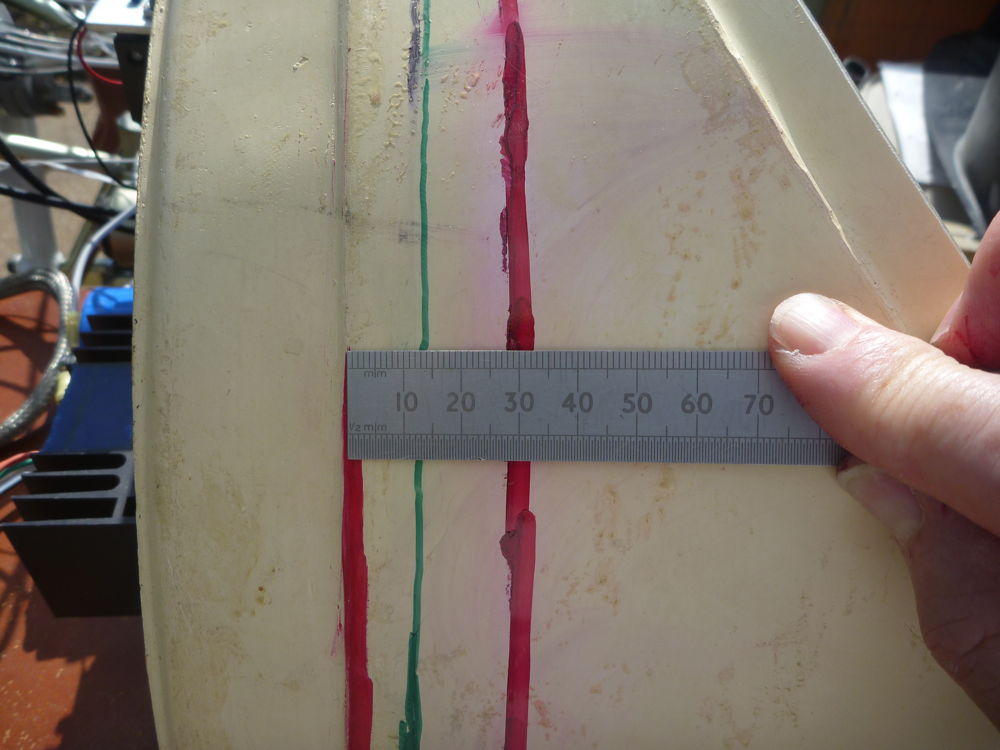

reference line for cowl trimming: 2016-07-18 Panasonic DMC-FT1

I laid a steel rule (not the one in the picture) on the fuselage with its forward edge aligned along the fuselage joggle and traced the red line along its aft edge. Thus the red line is the width of the steel rule (about 30mm) aft of the fuselage joggle all the way around. To mark the cut line on the cowls when they are in place, I laid the steel rule against the red line and marked the cut line against its forward edge.
