modifying compass bracket

modifying compass bracket: 2020-11-16 Panasonic DMC-FT1

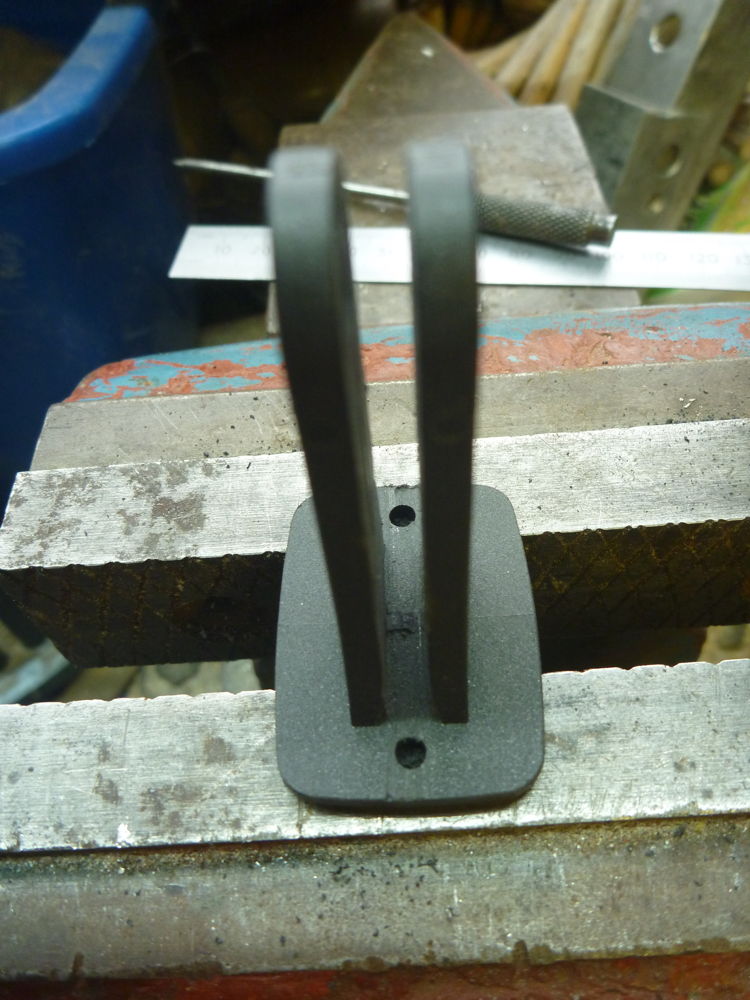

Modifying the long mounting bracket for the SIRS compass. Here I have cut away the central web of the bracket.


modifying compass bracket

modifying compass bracket: 2020-11-16 Panasonic DMC-FT1

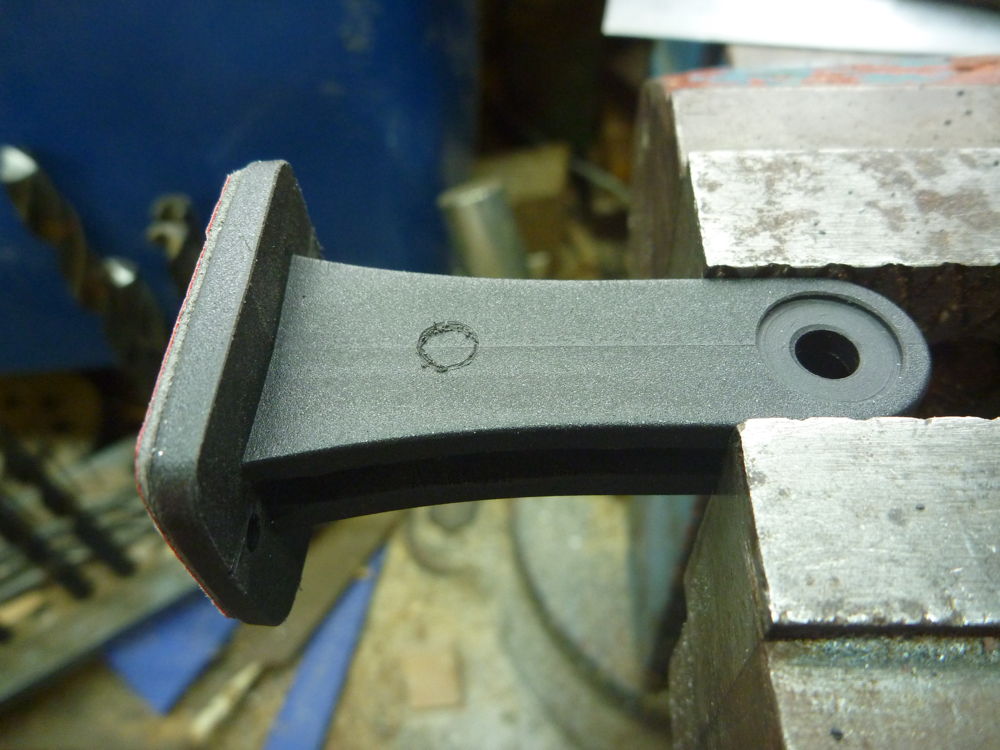

Modifying the long mounting bracket for the SIRS compass. The required position of the new hole has been marked with a scriber.


modifying compass bracket

modifying compass bracket: 2020-11-16 Panasonic DMC-FT1

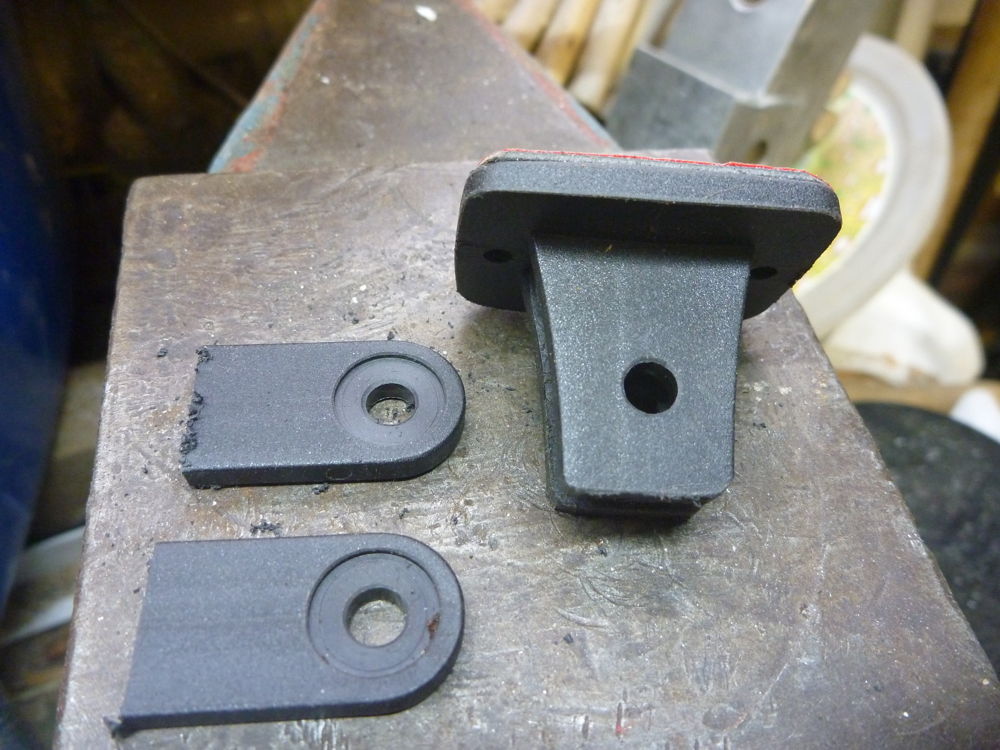

Modifying the long mounting bracket for the SIRS compass. Here the new hole has been made and the bracket shortened.
