anchor nuts for compass mounting arm

anchor nuts for compass mounting arm: 2020-12-05 Panasonic DMC-FT1

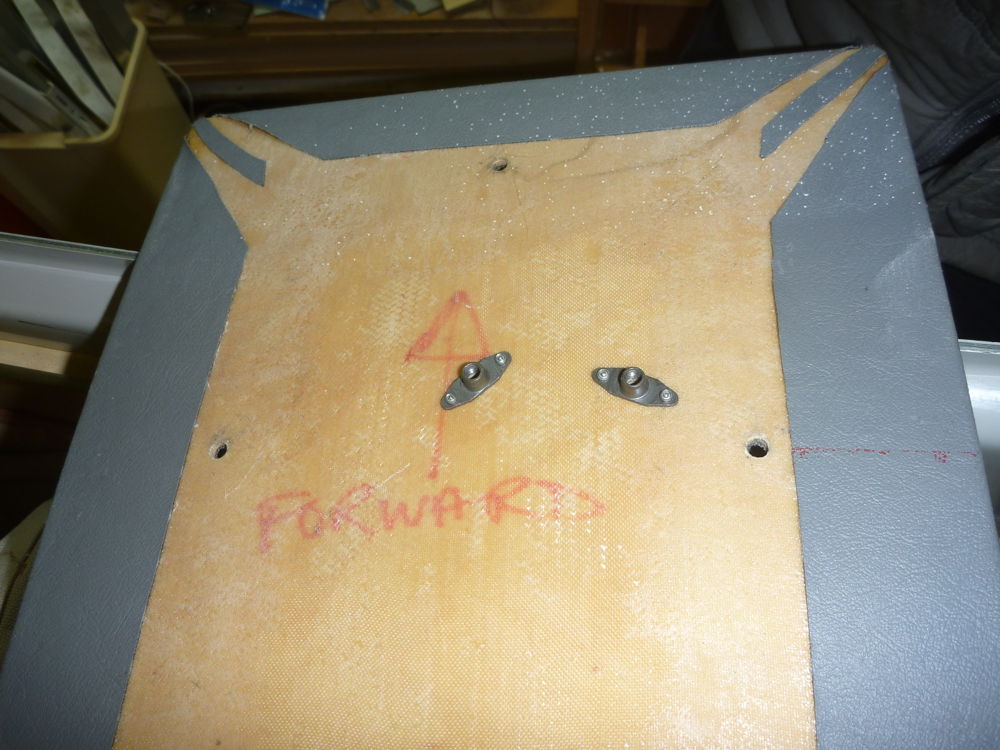

The 2 anchor nuts on the overhead panel for fitting the compass mounting arm. The 3rd mounting point is through the existing hole at the forward end of the panel.


overhead panel mounting easement

overhead panel mounting easement: 2020-12-05 Panasonic DMC-FT1

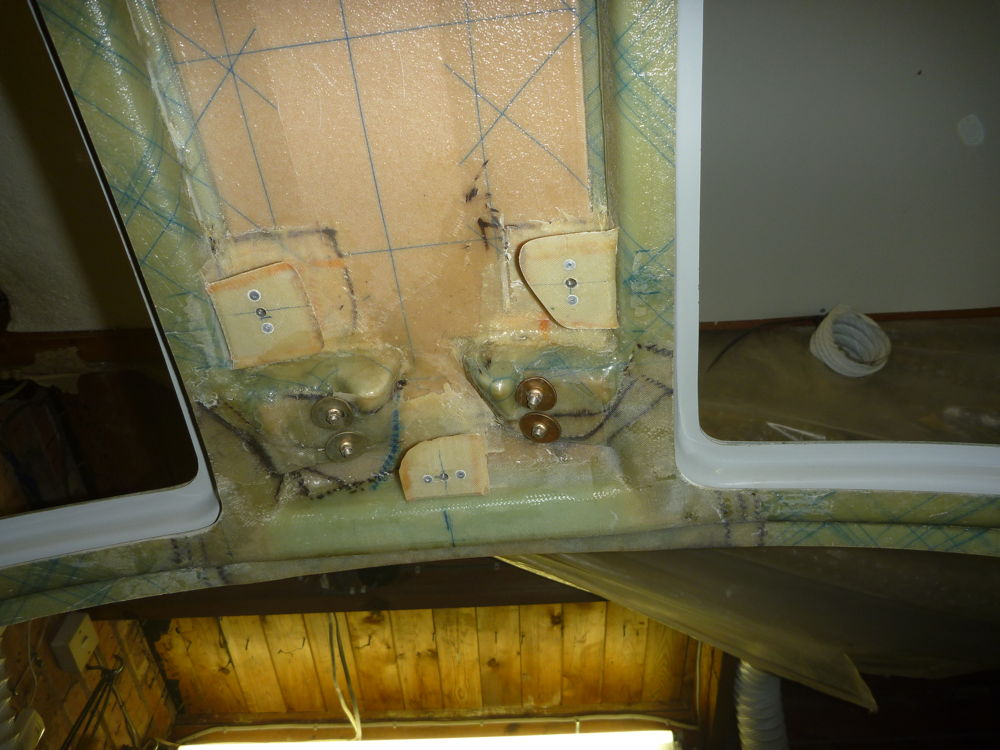

The composite bracket on the right side of the overhead recess has been cut back slightly to clear one of the anchor nuts on the overhead panel for fitting the compass mounting arm.
