Fitting fuselage rear bulkhead

index sitemap advanced
search engine by freefind
notepad Navigation & Acknowledgements

Fitting fuselage rear bulkhead

2 pictures on this page - scroll down to see the rest

Brass clamp on piano-wire

Brass clamp on piano-wire: 2011-01-13

Lumix DMC-FT1

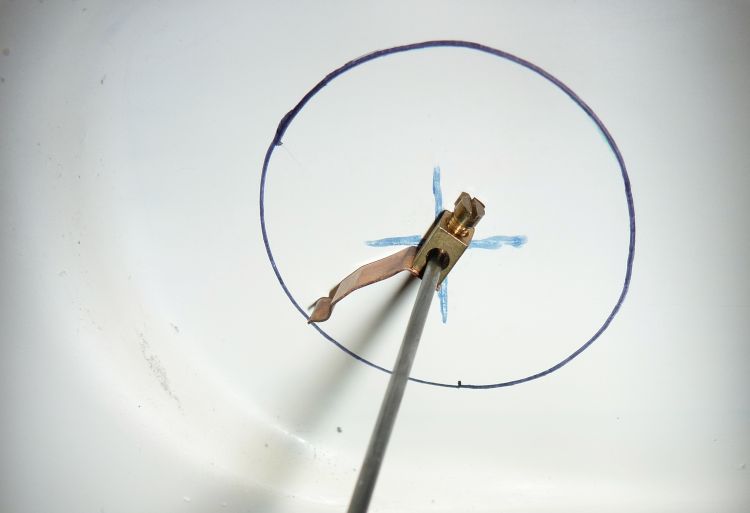

The black circle marks where the torque tube will be fitted. A small hole is drilled in the centre on each side of the fuselage, and a piece of piano-wire passed through. On it are clamped brass terminals to keep the fuselage sides pressed in to their correct position.

Rear bulkhead clamped in position

Rear bulkhead clamped in position: 2011-01-13

Lumix DMC-FT1

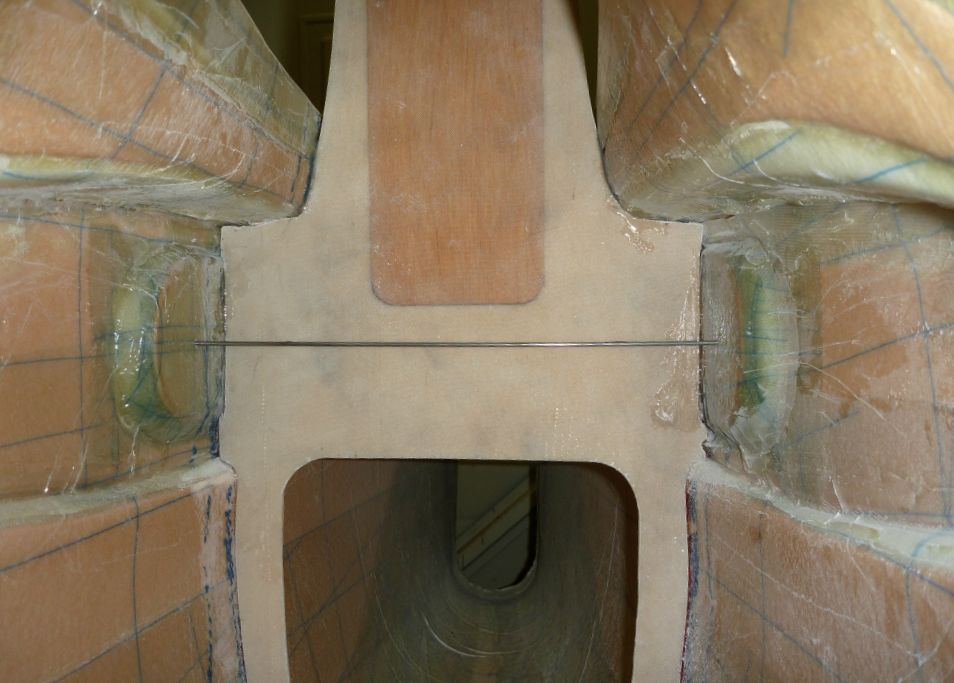

View inside the rear fuselage, looking aft, with the rear bulkhed in position and the fuselage sides held in to the correct width by brass clamps outside the fuselage on the piano-wire passing through the centres of where the torque-tube will be fitted.
