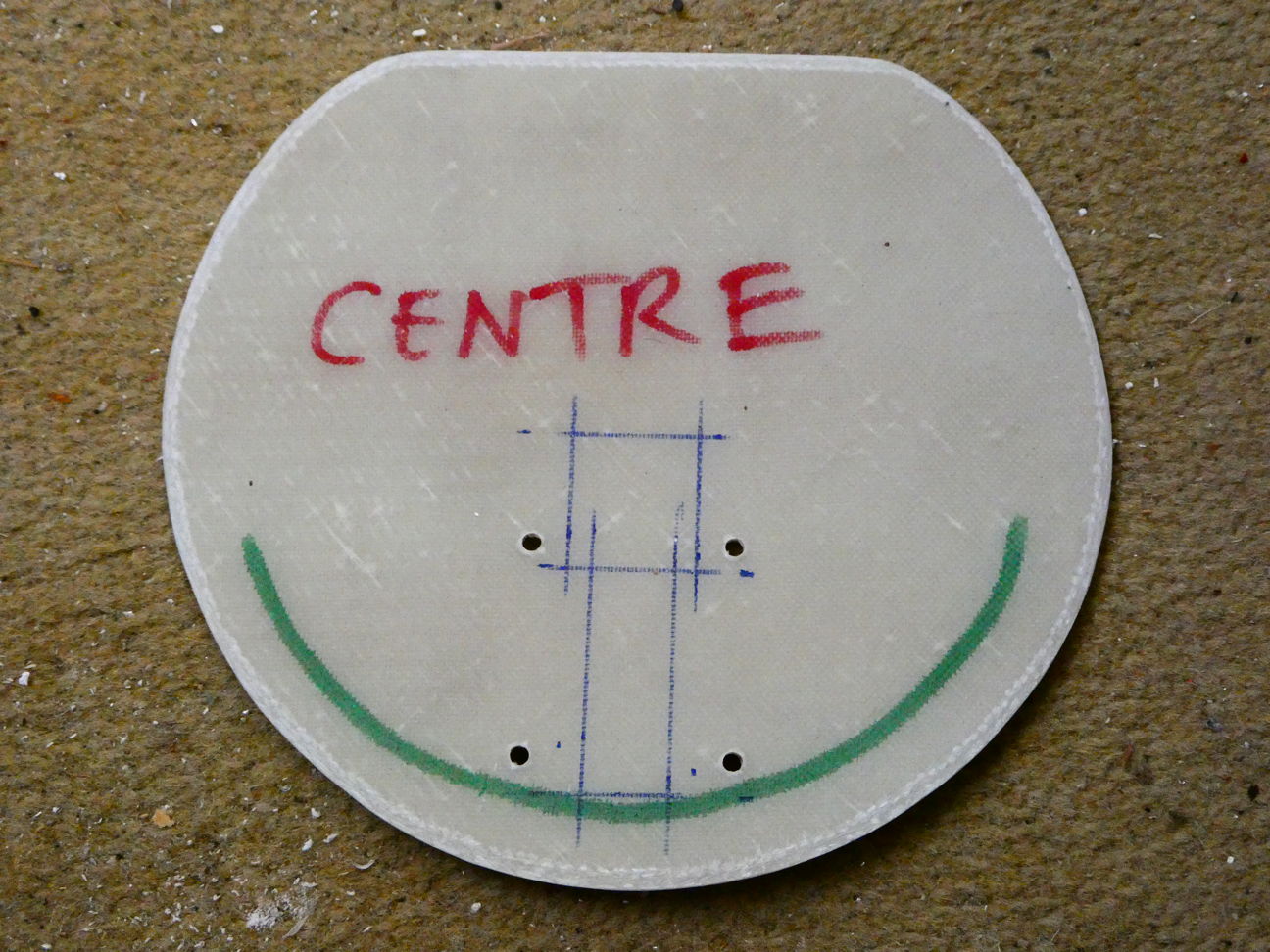

fitting latch to cowl centre hatch: 2023-09-30 Panasonic DC-TZ90
The cutout for the Hartwell latch operation has been marked on the cowl centre hatch cover using offset measurements from the mounting holes.

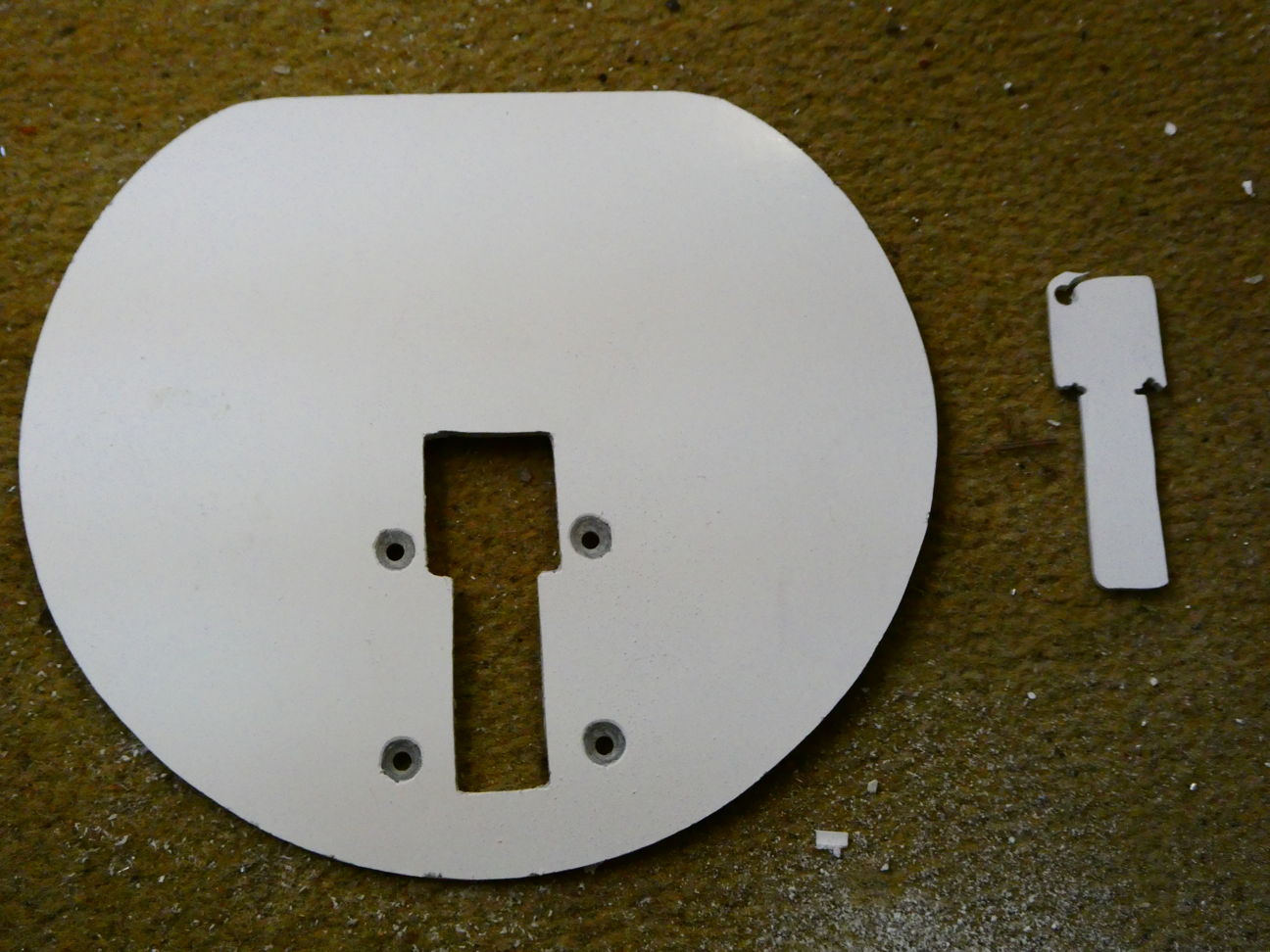

fitting latch to cowl centre hatch: 2023-09-30 Panasonic DC-TZ90
The cutout for the Hartwell latch on the cowl centre hatch cover, made using a MiniTool jigsaw with a diamond blade.

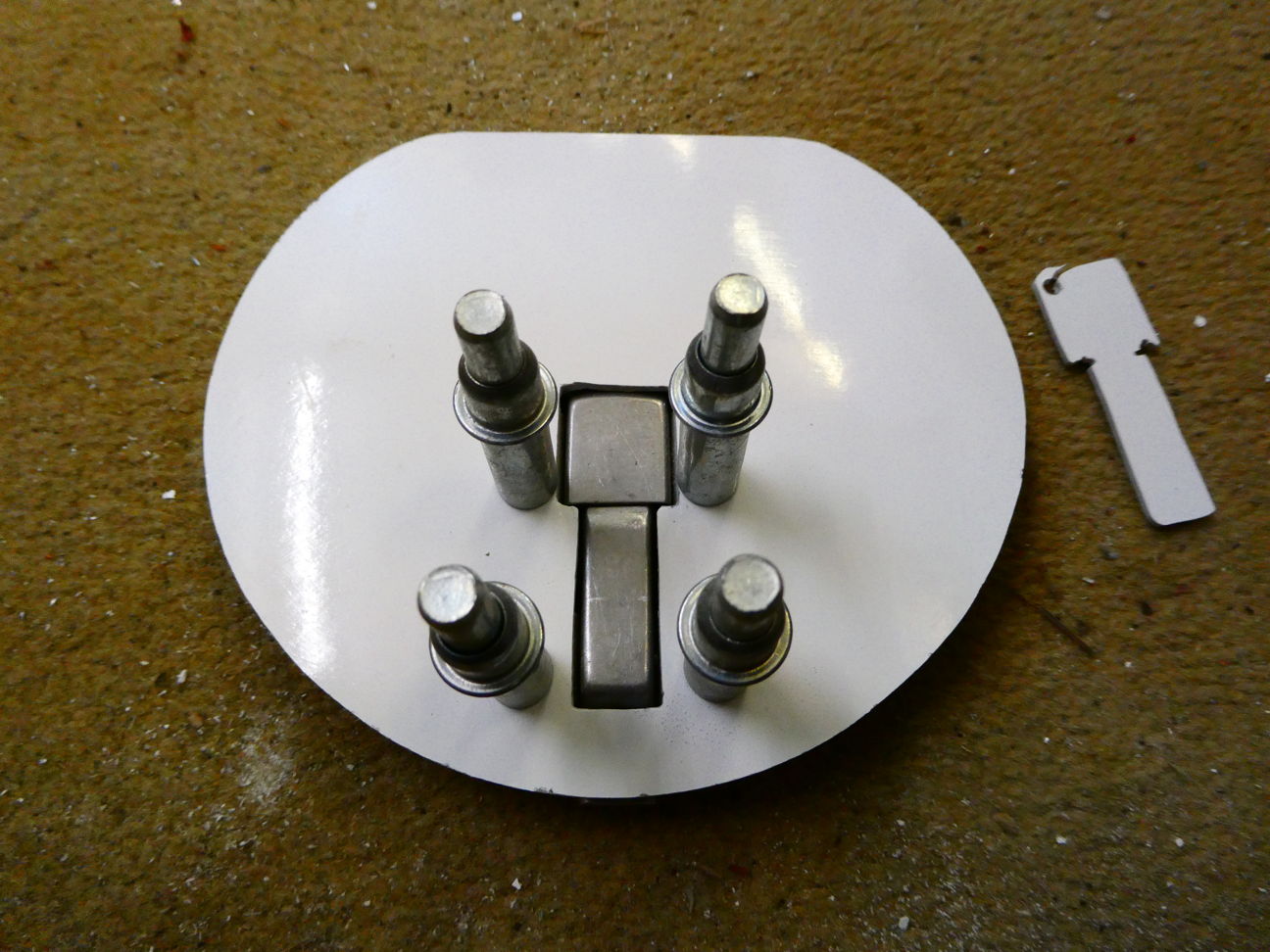

fitting latch to cowl centre hatch: 2023-09-30 Panasonic DC-TZ90
The Hartwell latch temporarily fitted to the cowl centre hatch cover with clecos, to check that the cutout is satisfactory.

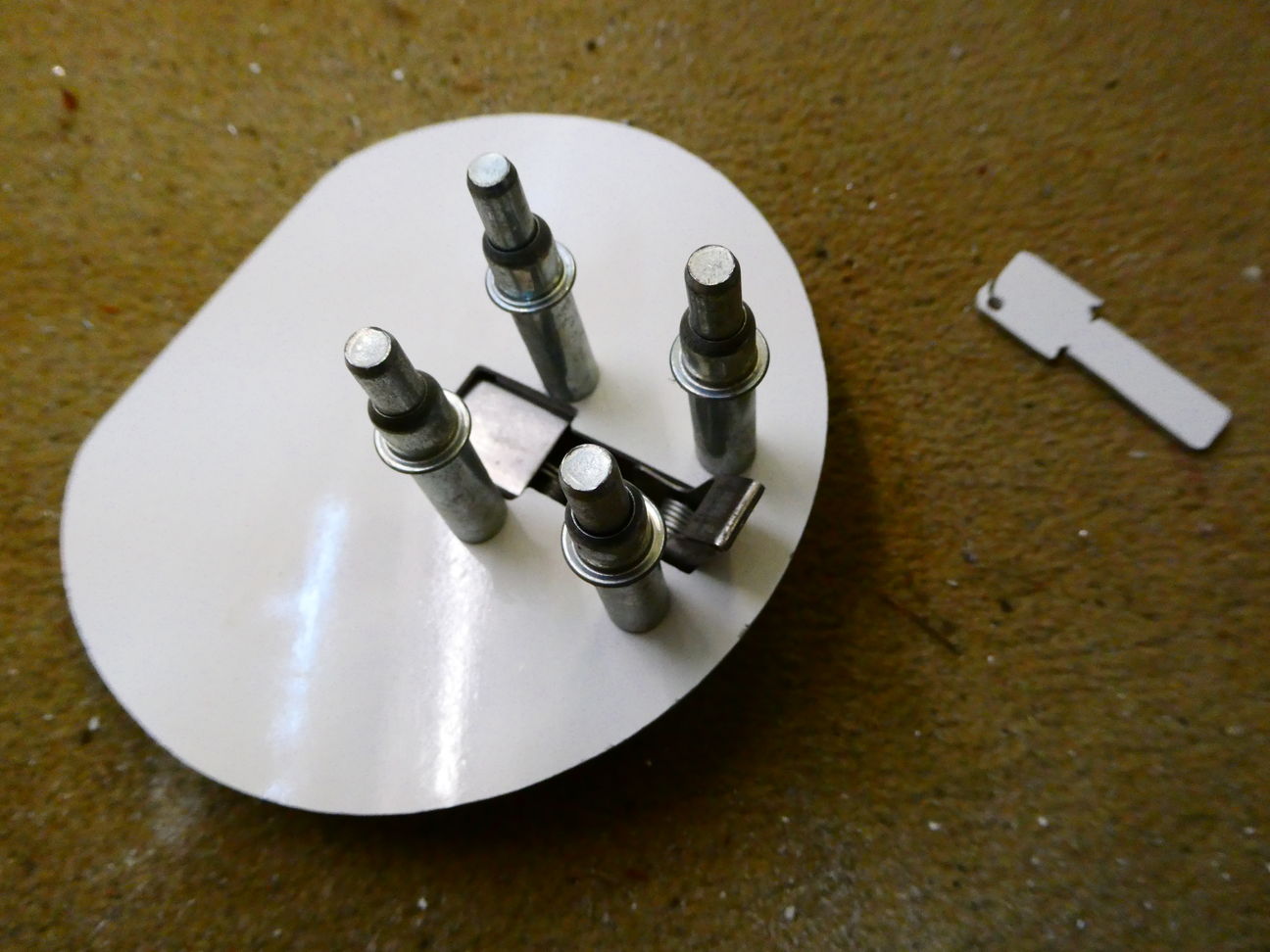

fitting latch to cowl centre hatch: 2023-09-30 Panasonic DC-TZ90
The Hartwell latch temporarily fitted to the cowl centre hatch cover with clecos. Latch in open position.
