water pipe routing test

water pipe routing trial

water pipe routing trial: 2017-04-18 Panasonic DMC-FT1

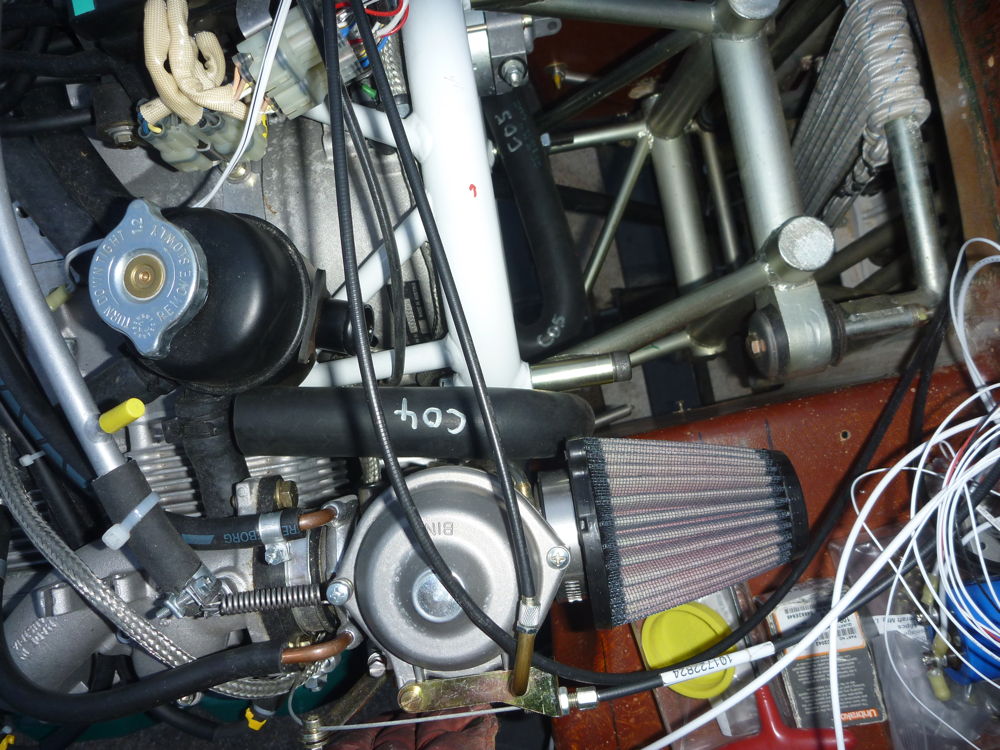

A trial positioning of the water pipe C04 which goes between the header tank and the port side of the radiator. There is very little free space around the pipe, particularly between the footwell and the engine mount. The horizontal part of the pipe will need to be shortened to keep the bend clear of the carburettor air filter.
