Splash moulding for top of containment bulkhead
|
|
Splash moulding for top of containment bulkhead |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

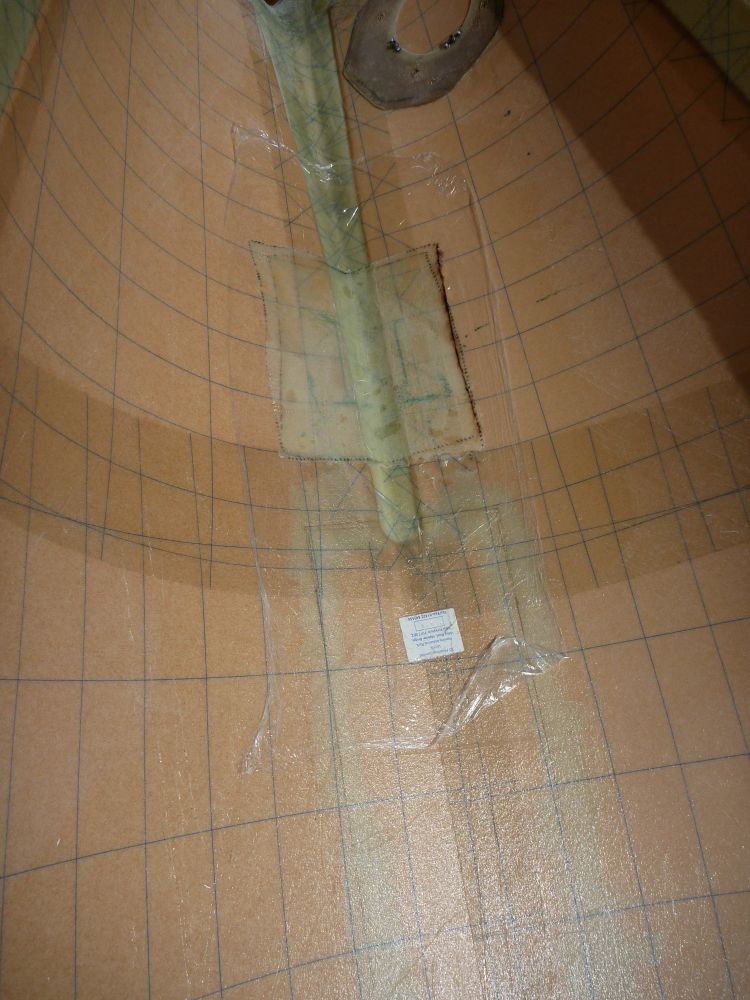

splash moulding for bulkhead bracket fitting: 2013-08-20
Panasonic Lumix DMC-FT1
A splash moulding made inside the fuselage top moulding, positioned around where the containment bulkhead touches. Cling film prevents the layup adhering to the fuselage, and the finished layup has been peel-plied.

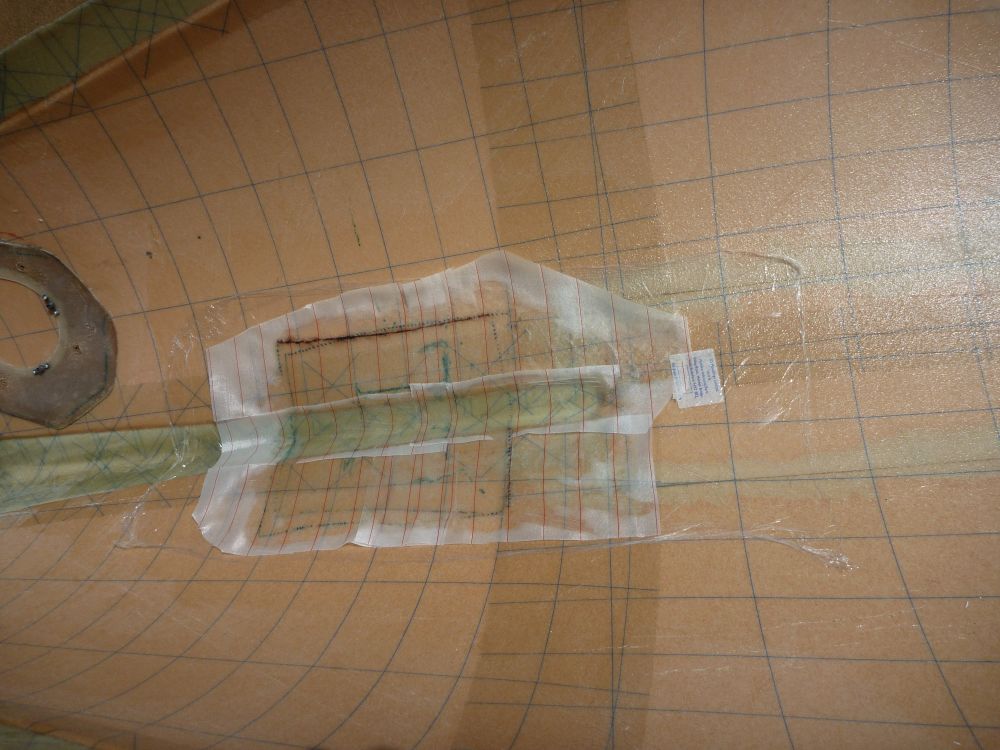

splash moulding for bulkhead bracket fitting: 2013-08-22
Panasonic Lumix DMC-FT1
The splash moulding cured, with peel-ply removed, but left in position on fuselage.
