Bowden cable protection

2 pictures on this page - scroll down to see the rest


Bowden cable protection

Bowden cable protection: 2019-12-31 Panasonic DMC-FT1

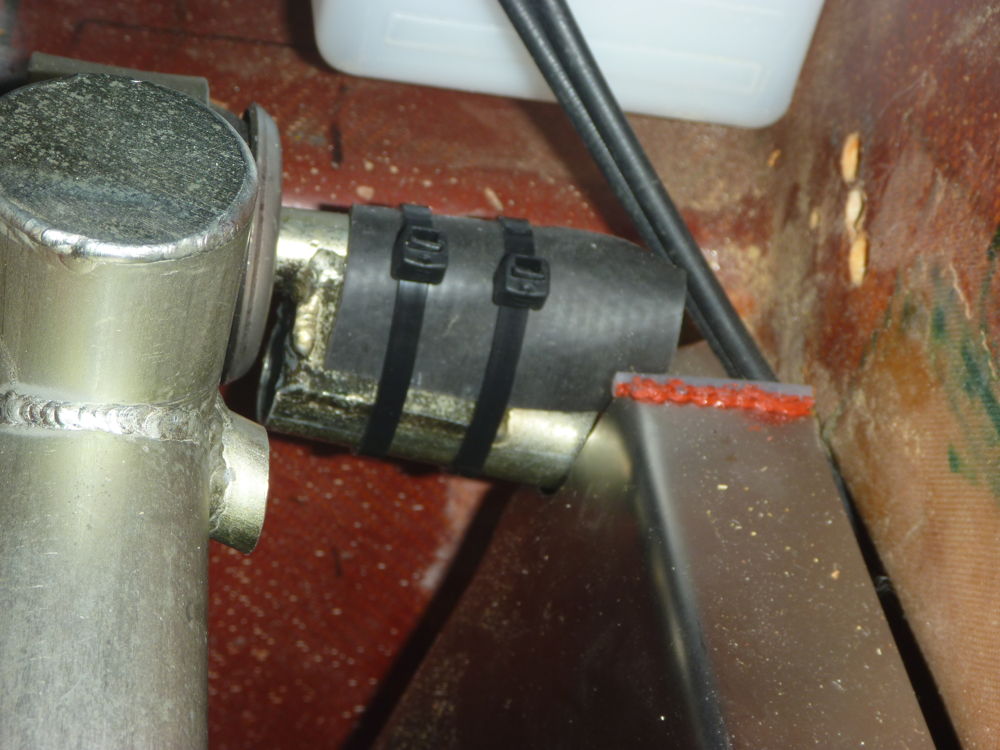

This piece of rubber firewall fabric is secured with cable-ties around the top of the engine mount at the port side to protect the Bowden cables (throttle & choke) from abrasion against the castellated nut and split-pin. This shows the Nylon 66 weatherproof cable-ties replacing the original ones which were less robust.


Bowden cable protection

Bowden cable protection: 2019-12-31 Panasonic DMC-FT1

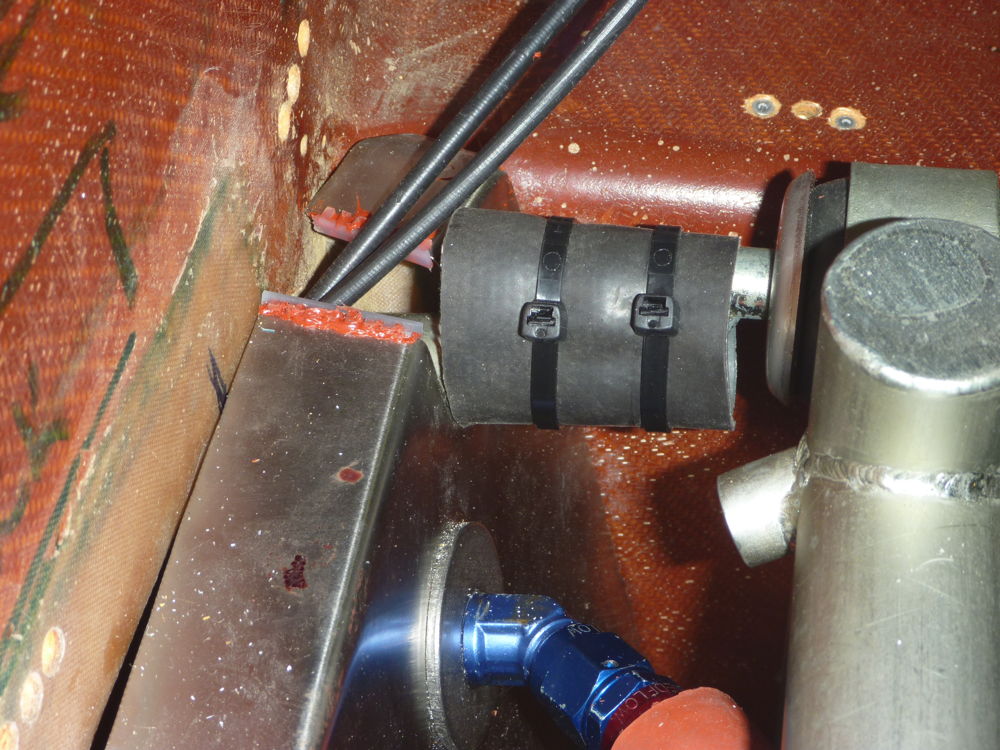

This piece of rubber firewall fabric is secured with cable-ties around the top of the engine mount at the starboard side to protect the Bowden cables (throttle & choke) from abrasion against the castellated nut and split-pin. This shows the Nylon 66 weatherproof cable-ties replacing the original ones which were less robust.
