flap pushrod clearance improved

bolt reversed

bolt reversed: 2015-04-08

Lumix DMC-FT1

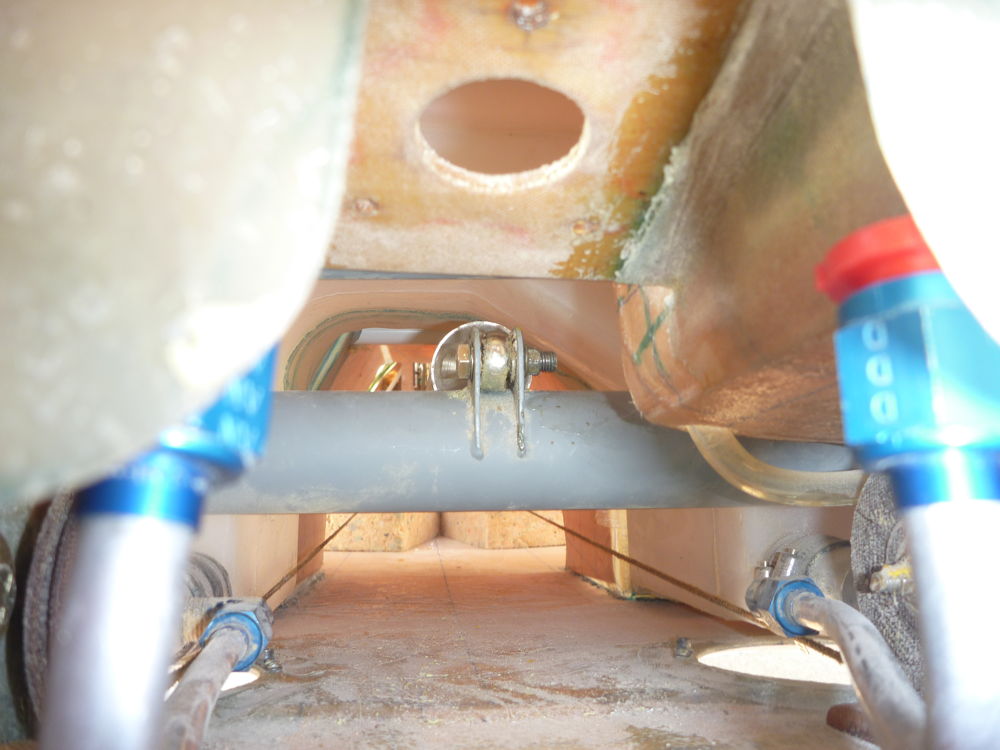

The bolt securing the rod-end bearing on the lugs at the centre of the pitch torque tube has been reversed so that the head is at the starboard side, giving more clearance where the FL20 flap pushrod passes.
