Port wing aileron bellcrank
|
|
Port wing aileron bellcrank |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
Port bellcrank secured with stiffnuts: 2008-03-28
Nikon Coolpix 8400

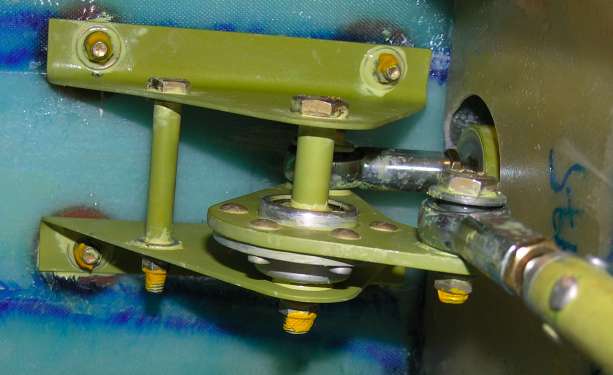

The port aileron bellcrank finally fixed in place with stuffnuts and inspectors lacquer applied.
Port bellcrank secured with stiffnuts: 2008-03-28
Nikon Coolpix 8400

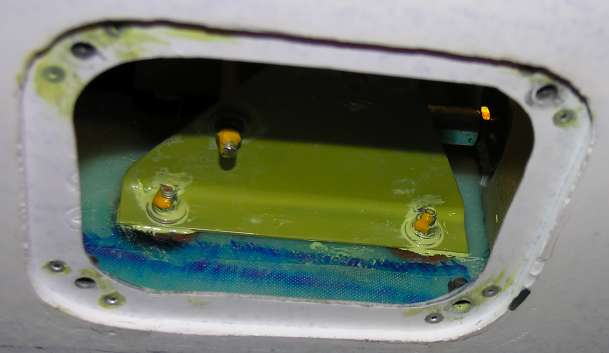

The underside of the port aileron bellcrank finally fixed in place with stuffnuts and inspectors lacquer applied. With care, it should be possible to dismantle the bellcrank assembly and replace it, working only through this access hole - but I do not relish the prospect! It will be tricky enough to make the required adjustments to the 2 pushrod ends when rigging the ailerons to operate correctly.
