baffle clearance from oil hoses
|
|
baffle clearance from oil hoses |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

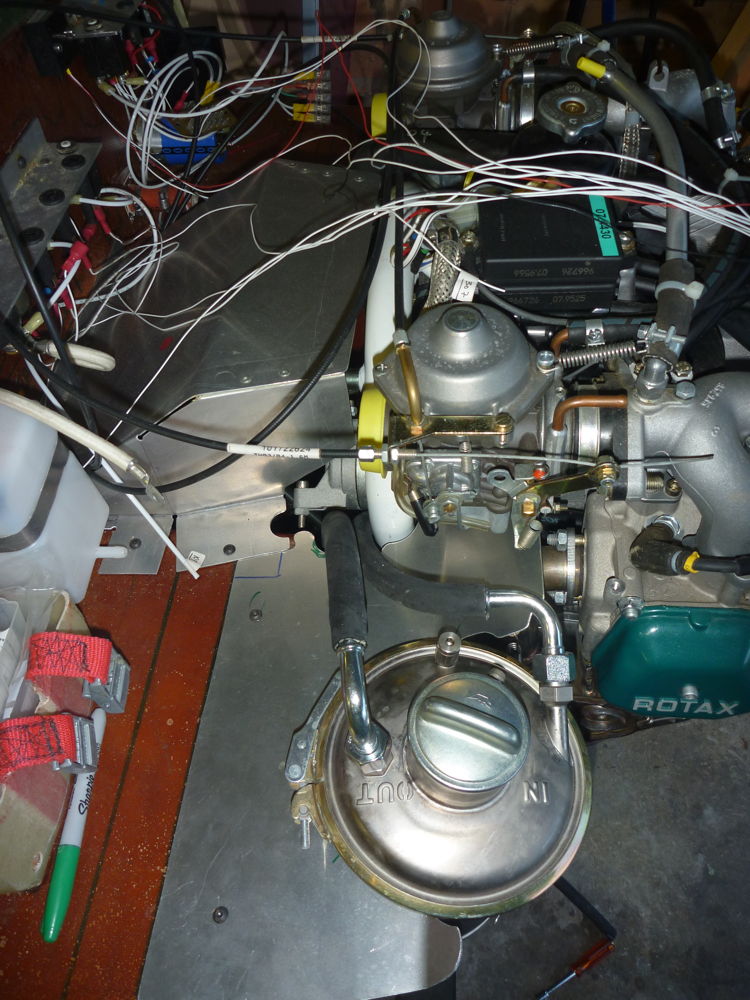

oil hose routing through baffle: 2018-11-06 Panasonic DMC-FT1
The oil hoses to and from the oil tank showing the routing through the starboard rear baffle.

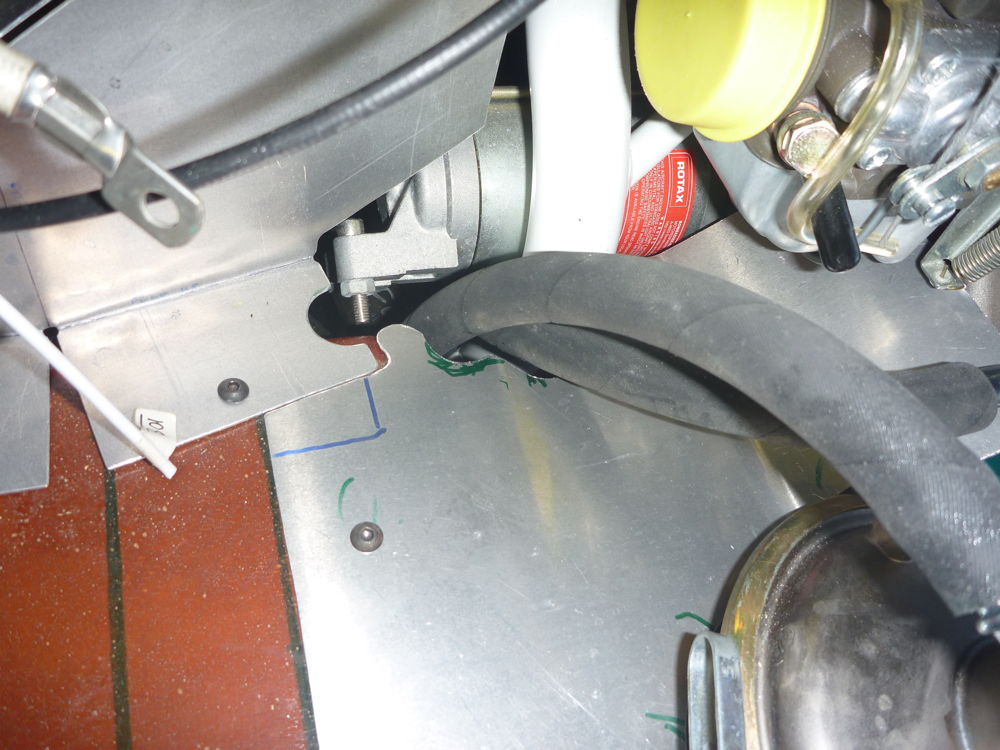

baffle relieved for oil hoses: 2018-11-06 Panasonic DMC-FT1
Notches cut in the starboard rear baffle for the hoses running to and from the oil tank.

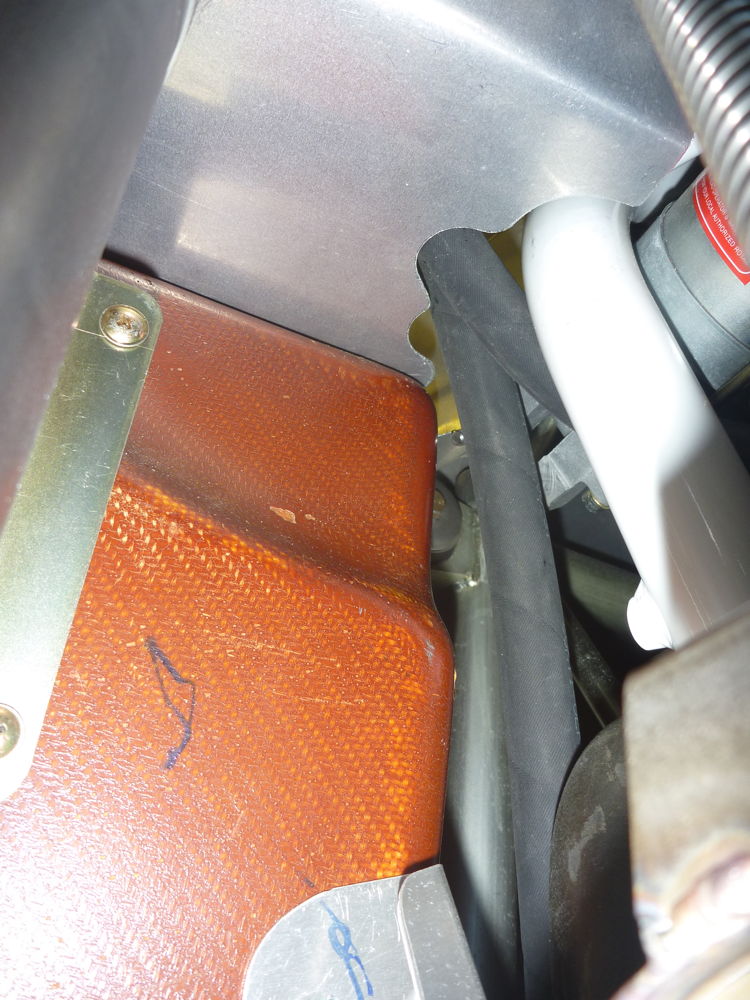

oil hose routing through baffle: 2018-11-06 Panasonic DMC-FT1
The oil hoses to and from the oil tank showing the routing through the starboard rear baffle.
